Shop Legrand Mosaic RJ45 Socket Category 6 STP Shielded 1 Module White | 76563 In Iraq Best Prices
Professional RJ45 Category 6 shielded STP socket with 1 GigaBit/s data transmission, PoE support, toolless installation, and universal compatibility for residential and commercial networking applications.

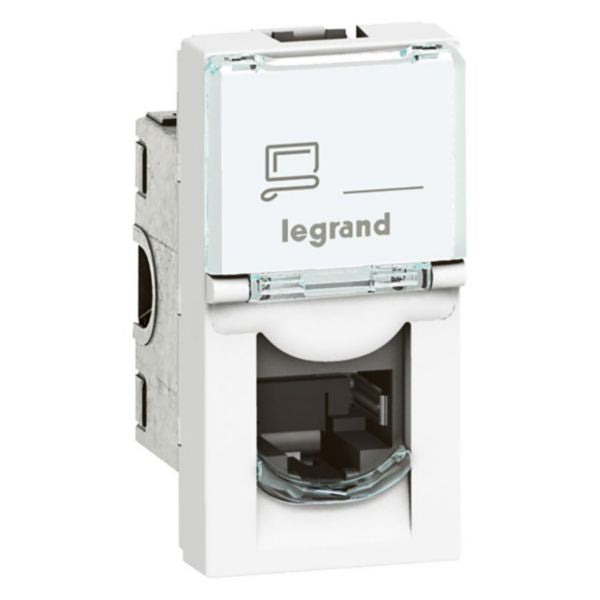

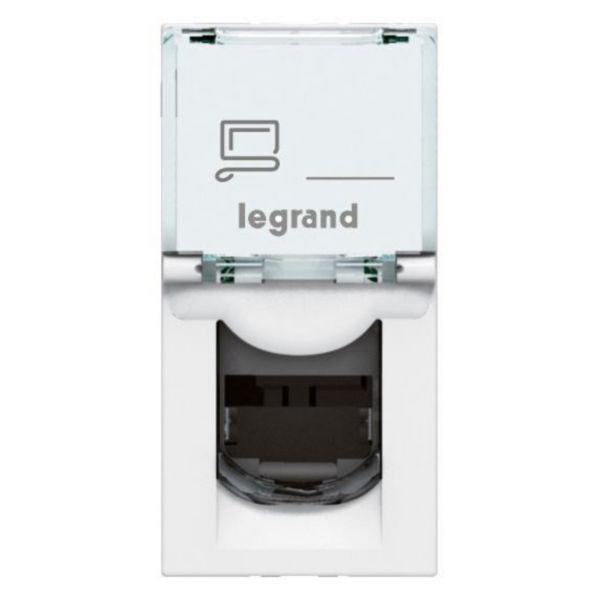

The Legrand Mosaic RJ45 Category 6 Shielded STP Socket is a professional-grade networking connector designed for high-speed data transmission in residential and commercial installations. This 1-module white socket supports data rates up to 1 GigaBit/s, enabling rapid file transfers and seamless streaming capabilities. The socket features advanced shielding technology to eliminate electromagnetic interference, ensuring stable and reliable network performance. Equipped with a transparent protective dust cover and insulation displacement connector (IDC) technology, this product provides toolless connection for quick and efficient installation without requiring specialized crimping tools.
The Mosaic RJ45 socket is fully compatible with standard Ethernet cabling and supports high-capacity Power over Ethernet (PoE) applications, allowing simultaneous transmission of data and electrical power over twisted pair cabling. This versatility makes it ideal for IP phones, analog phones, and high-demand applications requiring low latency such as online gaming and video streaming. The socket conforms to international standards including ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C, ensuring compliance with global networking specifications. Its modular design integrates seamlessly into standard flush-mounted boxes without requiring additional wall modifications or complex cabling arrangements.
With its robust construction featuring IK04 impact resistance and operating temperature range of -40 to 70°C, this networking socket delivers exceptional durability in various installation environments. The halogen-free design meets modern environmental standards, while the antimicrobial treatment option provides additional protection in sensitive environments. The slot system enables perfect multigang configuration, allowing support frames to be easily joined for simplified installation. Compatible with RJ11, RJ12, and RJ45 plugs, this socket offers exceptional flexibility for diverse networking requirements.
Key Features
- RJ45 Category 6 connector supporting data rates up to 1 GigaBit/s for rapid downloads and seamless streaming
- Advanced shielded STP design eliminates electromagnetic interference for stable and reliable network performance
- Toolless insulation displacement connector (IDC) technology enables quick installation without specialized crimping equipment
- High-capacity Power over Ethernet (PoE) support allows simultaneous transmission of data and electrical power
- Transparent protective dust cover and modular slot system for easy multigang installation in standard flush-mounted boxes
- Universal compatibility with RJ11, RJ12, and RJ45 plugs for diverse networking requirements
- Conforms to international standards ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C
- IK04 impact resistance and operating temperature range -40 to 70°C for exceptional durability
- Halogen-free design meets modern environmental standards and safety requirements
- Suitable for commercial, residential, IP phones, analog phones, and low-latency applications
Technical Specifications
| Specification |
Value |
| Product Type | RJ45 Socket Category 6 Shielded STP |
| Number of Modules | 1 module |
| Connector Type | RJ45 8(8) Insulation Displacement Connector (IDC) |
| Category | Category 6 (Cat 6) |
| Data Rate | Up to 1 GigaBit/s |
| Shielding | Shielded STP (Shielded Twisted Pair) |
| Color | White (RAL 9003) |
| Installation Type | Flush-mounted, Duct installation, Floor box/subfloor mounted |
| Fastening Type | Engage (snap) fastening |
| Device Dimensions | Width: 22.5 mm, Height: 45 mm, Depth: 39.5 mm, Built-in depth: 31 mm |
| Degree of Protection | IP20 |
| Impact Strength | IK04 |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +70°C |
| Maximum Input Cable Diameter | 9 mm |
| Dust Cover | Yes - Transparent protective dust cover included |
| Connection Type | Toolless quick connection with integrated crimping |
| Compatibility | Compatible with RJ11, RJ12, and RJ45 plugs |
| Power over Ethernet Support | Yes - High-capacity PoE applications supported |
| Halogen Free | Yes |
| Antimicrobial Treatment | No (standard version) |
| Label Space | Yes - Terminal marking indication available |
| Color Coding | Yes |
| Standards Compliance | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| Mounting Method | Flush-mounted with modular slot system |
| Reference Number | 076563 |
| EAN Code | 3245060765637 |
