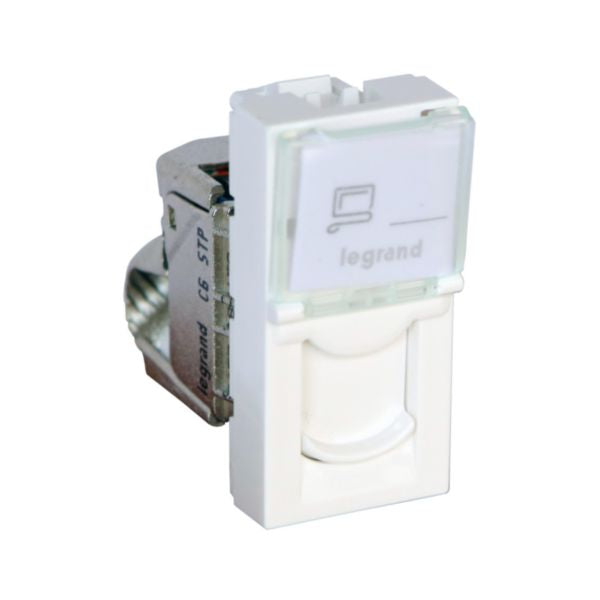

Shop Legrand Mosaic RJ45 Socket Category 6 STP Shielded 1 Module White Antimicrobial | 76583 In Iraq Best Prices
Professional-grade RJ45 Category 6 STP shielded socket with antimicrobial white finish, supporting 1 Gigabit/s data transmission and high-capacity Power over Ethernet applications for residential and commercial installations.
The Legrand Mosaic RJ45 Category 6 STP Shielded Socket is a premium networking solution designed for modern residential and commercial installations. This 1-module socket features advanced shielded technology that eliminates electromagnetic interference, ensuring reliable data transmission at speeds up to 1 Gigabit/s. The white antimicrobial finish contains a silver compound that actively prevents bacterial growth on the surface, making it ideal for hygiene-sensitive environments such as healthcare facilities, hospitality venues, and public spaces.
This socket is engineered to support high-capacity Power over Ethernet (PoE) applications, allowing both data and electrical power to be transmitted simultaneously through twisted pair Ethernet cabling. The toolless connector design with integrated crimping technology enables quick and effortless installation without requiring specialized equipment. Compatible with RJ11, RJ12, and RJ45 plugs, this versatile socket accommodates various networking needs and provides exceptional flexibility for multi-gang installations.
Fully compliant with international standards including ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C, the Mosaic RJ45 socket delivers professional-grade performance suitable for downloading large files, streaming high-definition content, and supporting online gaming with minimal latency. The transparent protective dust cover safeguards the connector during installation and storage, while the modular design allows seamless integration with support frames and plates for efficient wall-mounted or flush-box installation.
Key Features
- RJ45 Category 6 STP shielded technology for 1 Gigabit/s data transmission with electromagnetic interference elimination
- White antimicrobial finish containing silver compound to prevent bacterial growth and contamination
- High-capacity Power over Ethernet (PoE) support for simultaneous data and electrical power transmission
- Toolless connector with integrated crimping technology enabling quick and effortless installation
- Compatible with RJ11, RJ12, and RJ45 plugs for versatile networking applications
- Transparent protective dust cover for connector protection during installation and storage
- Modular 1-module design with slot system for perfect multigang setting and easy installation
- IP20 degree of protection and IK04 impact strength rating for durability
- Compliant with ISO/IEC 11801 Ed. 3.0, EN 50173-1, and TIA/EIA 568 C international standards
- Halogen-free and environmentally responsible construction
Technical Specifications
| Specification |
Value |
| Product Reference | 076583 |
| EAN Code | 3245060765835 |
| Brand | Legrand |
| Product Line | Mosaic™ |
| Connector Type | RJ45 8(8) |
| Category | Category 6 (Cat 6) |
| Data Rate | Up to 1 Gigabit/s |
| Shielding | STP (Shielded Twisted Pair) |
| Number of Modules | 1 module |
| Color | White |
| RAL Number | 9003 |
| Antimicrobial Treatment | Yes - Silver compound |
| Connection Type | Insulation Displacement Connector (IDC) |
| Installation Type | Flush-mounted, Duct installation, Floor box/subfloor mounted |
| Fastening Method | Engage (Snap) |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 39.5 mm |
| Built-in Depth | 31 mm |
| Maximum Input Cable Diameter | 9 mm |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | -40°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Dust Cover | Yes - Transparent protective cover |
| Power over Ethernet Support | Yes - High capacity PoE compatible |
| Compatible Plugs | RJ11, RJ12, RJ45 |
| Halogen Free | Yes |
| Terminal Marking | Yes - Color coded |
| Outlet Direction | Straight |
| Label Space | Yes |
| Compliance Standards | ISO/IEC 11801 Ed. 3.0, EN 50173-1, TIA/EIA 568 C |
| Connector Quantity | 1 socket |
| Installation Method | Toolless connector with integrated crimping |
Order Legrand Mosaic RJ45 Socket Category 6 STP Shielded 1 Module White Antimicrobial | 76583 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
