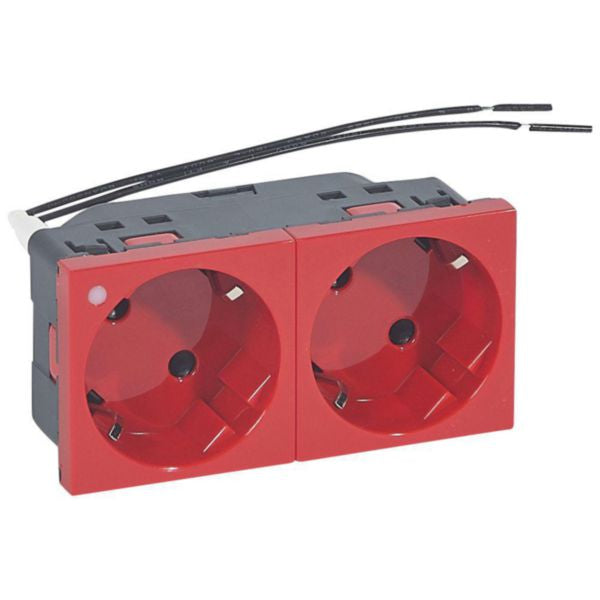

Legrand Mosaic dual Schuko socket with automatic terminals, 16A 230V, red indicator light, German standard, IK07 impact rated, halogen-free construction.
The Legrand Mosaic Multi-support Multiple Socket is a high-quality electrical outlet designed for modern residential and commercial installations. This German standard socket features dual 2P+E (Schuko) outlets with automatic push-in terminals, making installation quick and secure. The distinctive red color with indicator light provides both aesthetic appeal and functional visibility, allowing users to immediately see when power is active at 230V. The socket is housed in a modular 4-module frame suitable for installation in flush-mounting boxes, surface-mounting boxes, floor boxes, column modules, desktop multi-outlet extensions, and office modules.
Built to the highest European standards, this socket outlet incorporates enhanced contact protection (IP40 rating) and impact strength rating of IK07, ensuring durability in various environments. The 45-degree inclined design optimizes accessibility and cable management. With a nominal current rating of 16A at 250V and frequency compatibility of 50-60Hz, this outlet is suitable for standard household and light commercial applications. The halogen-free plastic construction demonstrates environmental responsibility while maintaining excellent performance characteristics.
The automatic terminal connection system (2x2P+E) eliminates the need for traditional screw terminals, reducing installation time and potential connection errors. The integrated red indicator light with 2.4mA consumption provides instant visual feedback of power availability. The device dimensions of 90mm width, 45mm height, and 40mm depth with 31.5mm built-in depth allow for seamless integration into standard electrical installations. Operating temperature range of -5 to 35°C ensures reliable performance across seasonal variations.
Key Features
- Dual 2P+E (Schuko) socket outlets for European compatibility
- Automatic push-in terminals for quick and secure installation
- Red color with integrated indicator light showing power status
- Modular 4-module design for flexible installation options
- Enhanced contact protection with IP40 rating and IK07 impact resistance
- 16A/250V nominal rating suitable for household and light commercial use
- 45-degree inclined design for improved accessibility
- Halogen-free thermoplastic construction for environmental safety
- 50-60Hz frequency compatibility for worldwide use
- Loop-through function capability for daisy-chain installations
Technical Specifications
| Specification |
Value |
| Product Type | Multi-support Multiple Socket Outlet |
| Socket Configuration | 2x 2P+E (Schuko Type F) German Standard |
| Nominal Current | 16 Amperes |
| Nominal Voltage | 250 Volts AC |
| Frequency Range | 50-60 Hz |
| Number of Modules | 4 Modular Units |
| Connection Type | Automatic Push-in Clamp Terminals |
| Cable Section | 2.5 mm² (fixed) |
| Indicator Light | Red with 2.4 mA consumption |
| Color | Red (RAL 3020) |
| Device Width | 90 millimeters |
| Device Height | 45 millimeters |
| Device Depth | 40 millimeters |
| Built-in Depth | 31.5 millimeters |
| Impact Strength Rating | IK07 |
| Degree of Protection | IP40 |
| Operating Temperature Range | -5°C to +35°C |
| Storage Temperature Range | -10°C to +70°C |
| Material | Halogen-free Thermoplastic |
| Surface Finishing | Glossy |
| Mounting Method | Module Frame Snap Mounting |
| Installation Options | Flush-mounting box, Surface-mounting box, Floor box, Column module, Desktop extension, Office module |
| Inclination | 45 degrees |
| Contact Protection | Enhanced |
| Loop-through Function | Yes |
| Reference Number | 077291 |
| EAN Code | 3245060772918 |
| Standards Compliance | German Standard, European CE certified |
Order Legrand Mosaic Multiple Socket 2x2P+E 230V Red | 077291 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
