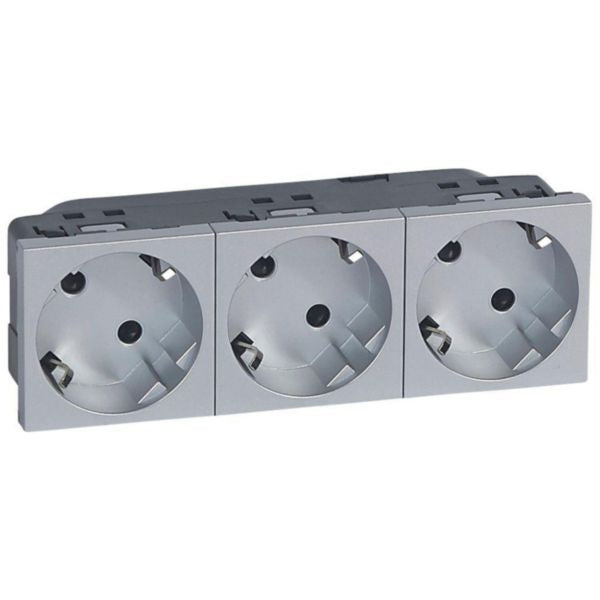

Shop Legrand Mosaic Multiple Socket 3x2P+E Aluminium | 079283 In Iraq Best Prices
Premium German standard 3-socket outlet with automatic terminals, aluminium finish, IK07 rated, 16A/250V, perfect for multi-support installations
The Legrand Mosaic Multi-Support Multiple Socket is a premium German standard electrical outlet designed for versatile installation in various mounting configurations. This innovative product features three 2P+E sockets with automatic push-in clamp terminals, providing safe and reliable power distribution for residential and commercial applications. The socket is constructed with durable aluminium finish and offers enhanced contact protection for maximum safety and durability.
This multi-support socket is engineered for installation in flush-mounting boxes, surface-mounting boxes, floor boxes, column modules, desktop multi-outlet extensions, and office modules. The inclined 45-degree design ensures optimal accessibility and ease of use. With an IK07 impact strength rating and IP40 degree of protection, this product withstands demanding environments while maintaining consistent performance. The modular design allows for seamless integration with other Mosaic programme mechanisms.
The socket accommodates a nominal current of 16A at 250V, operating at 50-60 Hz frequency. Its compact dimensions (135mm width x 45mm height x 40mm depth) make it ideal for space-constrained installations. The halogen-free thermoplastic material construction demonstrates environmental responsibility without compromising on performance or safety standards.
Key Features
- Three 2P+E sockets with automatic push-in clamp terminals for secure connections
- Multi-support installation capability in flush-mounting, surface-mounting, floor boxes, and column modules
- Enhanced contact protection for maximum electrical safety and reliability
- IK07 impact strength rating and IP40 degree of protection for durability
- Halogen-free thermoplastic material construction for environmental sustainability
- Compact modular design with 45-degree inclined positioning for optimal accessibility
- Compatible with Mosaic programme mechanisms for seamless integration
- 16A nominal current at 250V with 50-60 Hz frequency compatibility
Technical Specifications
| Specification |
Value |
| Product Name | Mosaic Multi-Support Multiple Socket 3x2P+E Automatic Terminals |
| Reference Number | 079283 |
| EAN Code | 3245060792831 |
| Brand | Legrand |
| Socket Type | CEE 7/3 (Type F) with protective contact |
| Number of Sockets | 3 x 2P+E |
| Connection Type | Push-in clamp (automatic terminals) |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| Material | Thermoplastic (Halogen-free) |
| Colour | Aluminium (RAL 7040) |
| Device Width | 135 mm |
| Device Height | 45 mm |
| Device Depth | 40 mm |
| Built-in Depth | 31.5 mm |
| Impact Strength Rating | IK07 |
| Degree of Protection | IP40 |
| Contact Protection | Enhanced (Yes) |
| Number of Modules | 6 (module system) |
| Mounting Method | Module frame (Snap mounting) |
| Installation Types | Flush-mounting box, surface-mounting box, floor box, column module, desktop multi-outlet extension, office module |
| Design Inclination | 45 degrees |
| Cable Section | 2.5-2.5 mm² |
| Cable Nature | Rigid |
| Operating Temperature Range | -5°C to +35°C |
| Storage Temperature Range | -10°C to +70°C |
| Voltage Type | AC |
| Loop Through Function | Yes |
| Eject Mechanism | No |
| Lockable | No |
| With Hinged Lid | No |
| Power Delivery | No |
| Smart Home Compatible | No (not compatible with Apple HomeKit, Amazon Alexa, or Google Assistant) |
