Shop Legrand Mosaic Multiple Socket 2x2P+E Tamperproof Red | 077292 In Iraq Best Prices
Legrand Mosaic dual 2P+E socket outlet with tamperproof protection, indicator light, and IK07 impact resistance. German standard compliant, 16A/250V, modular 4-module design for versatile installation.

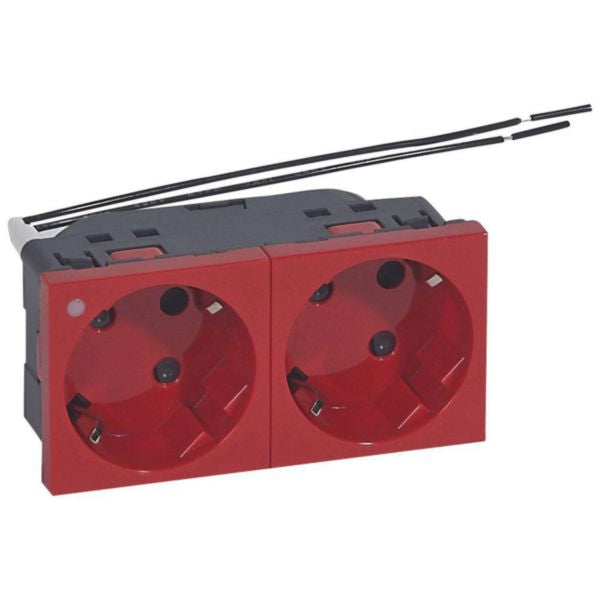

The Legrand Mosaic Multi-Support Multiple Socket is a premium electrical outlet designed for versatile installation in residential and commercial applications. This German standard-compliant device features two 2P+E socket outlets with enhanced safety features including tamperproof protection and integrated indicator lighting. The socket is constructed with high-quality thermoplastic material and is certified IK07 for impact resistance, making it suitable for various mounting configurations including flush-mounting boxes, surface-mounting boxes, floor boxes, column modules, desktop multi-outlet extensions, and office modules.
This dual socket outlet is engineered with automatic push-in clamp terminals for secure and reliable cable connections ranging from 2.5-2.5 mm² cross-section. The inclined 45° design provides optimal accessibility and ergonomic positioning. The device operates at 250V with a nominal current of 16A, supporting both 50-60 Hz frequencies. The red color with tamperproof inserts ensures child safety and prevents unauthorized use, while the integrated 2.4 mA indicator provides visual confirmation of power supply status.
The Mosaic programme mechanisms are designed as a modular system with 4-module width, allowing seamless integration with other Mosaic range components. The device is halogen-free and constructed with untreated plastic featuring a glossy finish. With its comprehensive technical specifications, reliable performance, and safety-focused design, this multiple socket outlet is an ideal choice for modern electrical installations requiring both functionality and protection.
Key Features
- Dual 2P+E socket outlets with tamperproof protection and safety indicator
- German standard compliant with IK07 impact resistance certification
- Modular 4-module system design for seamless integration with Mosaic range
- Automatic push-in clamp terminals for secure cable connections
- Inclined 45° design for optimal accessibility and ergonomic positioning
- Red color with integrated 2.4 mA indicator light for power status confirmation
- Halogen-free thermoplastic construction with glossy finish
- Versatile mounting options: flush-mounting, surface-mounting, floor boxes, columns
- Rated 250V/16A for 50-60 Hz operation with enhanced contact protection
- Temperature operating range -5°C to +35°C for reliable performance
Technical Specifications
| Specification |
Value |
| Product Type | Multi-support multiple socket outlet |
| Socket Configuration | 2 x 2P+E (2 sockets with protective contact CEE 7/3 type F) |
| Rated Voltage | 250V AC |
| Rated Current | 16A |
| Frequency | 50-60 Hz |
| Connection Type | Push-in clamp (automatic terminals) |
| Cable Section | 2.5-2.5 mm² |
| Impact Resistance | IK07 |
| Degree of Protection | IP20 |
| Material | Thermoplastic (halogen-free) |
| Color | Red (RAL 3020) |
| Module Width | 4 modules |
| Device Dimensions | Width 90mm x Height 45mm x Depth 40mm |
| Built-in Depth | 31.5mm |
| Mounting Method | Module frame (snap mounting) |
| Installation Options | Flush-mounting box, surface-mounting box, floor box, column module, desktop multi-outlet extension, office module |
| Safety Features | Tamperproof with enhanced contact protection |
| Indicator Light | Yes - 2.4 mA red indicator with function lighting |
| Operating Temperature | -5°C to +35°C |
| Storage Temperature | -10°C to +70°C |
| Standard Compliance | German standard (Mosaic programme mechanisms) |
| Reference Number | 077292 |
| EAN Code | 3245060772925 |
| Surface Finishing | Glossy |
| Loop Through Function | Yes |
