Shop Legrand Mosaic 4x2P+E Socket Outlet Automatic Terminals Tamperproof Red | 077283 In Iraq Best Prices
Premium German standard 4x2P+E tamperproof socket outlet with automatic push-in terminals, 16A/250V, IK07 impact protection, and loop-through functionality for residential and commercial installations.

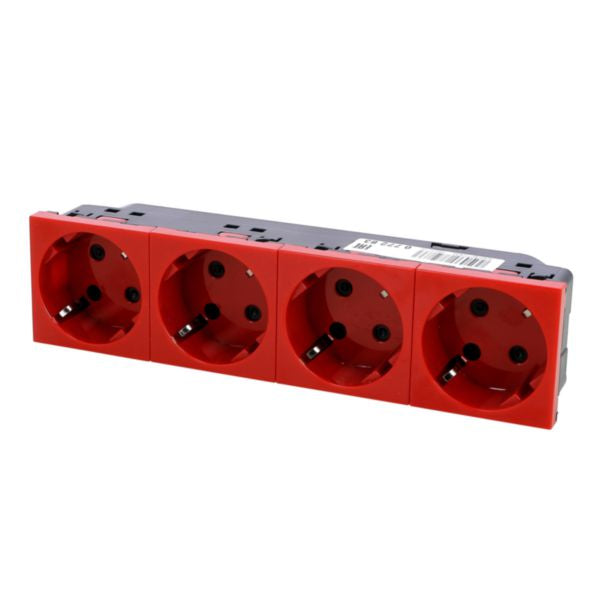

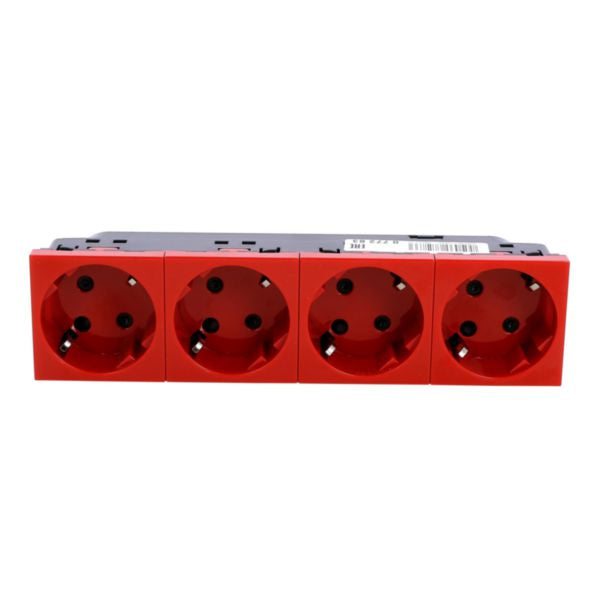

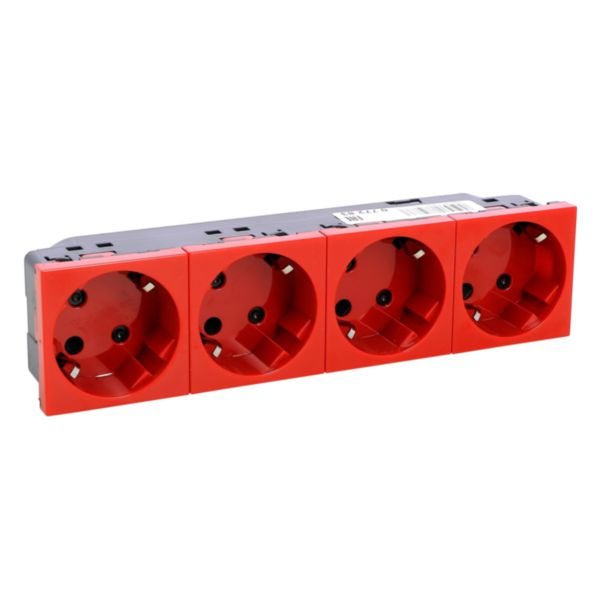

The Legrand Mosaic Multi-Support Multiple Socket is a premium German standard electrical outlet designed for versatile installation in various mounting configurations. This 4x2P+E socket outlet features automatic push-in clamp terminals and tamperproof protection, making it ideal for residential and commercial applications. The device is constructed with high-quality thermoplastic material that is halogen-free, ensuring safety and environmental compliance. With a nominal current rating of 16A at 250V and frequency compatibility of 50-60 Hz, this socket outlet meets international electrical standards. The red color with RAL 3020 finish provides clear visual identification for safety purposes, particularly in emergency power supply applications.
The Mosaic socket outlet is engineered for enhanced contact protection and includes a loop-through function for daisy-chain installations. It features an IK07 degree of impact strength, making it suitable for general domestic and commercial environments. The device operates reliably within a temperature range of -5°C to 35°C and can be stored at temperatures between -10°C to 70°C. Installation is straightforward with snap mounting engagement into module frames, and the rigid cable connection accommodates 2.5mm² cable sections. The IP40 degree of protection ensures resistance to dust and water splash, making it suitable for indoor installations in various settings including offices, kitchens, and commercial spaces.
This socket outlet is fully compatible with the Legrand Mosaic programme mechanisms and can be installed in flush-mounting boxes, surface-mounting boxes, floor boxes, column modules, desktop multi-outlet extensions, and office modules. The tamperproof design includes an inclined 45° configuration and requires the use of a tamperproof insert for maximum safety, particularly in environments where child safety is a concern. The 180mm width, 45mm height, and 40mm depth make it a compact solution that integrates seamlessly into modern electrical installations while maintaining the aesthetic appeal of the Mosaic design range.
Key Features
- German standard multiple socket outlet with 4x2P+E configuration for enhanced electrical distribution
- Automatic push-in clamp terminals ensuring secure and reliable electrical connections without tools
- Tamperproof design with inclined 45° configuration and compatible with tamperproof insert for child safety
- Enhanced contact protection with loop-through function for daisy-chain installations and flexible wiring
- Halogen-free thermoplastic construction with IP40 protection and IK07 impact resistance for durability
- Multi-support installation capability in flush-mounting boxes, surface boxes, floor boxes, and column modules
- 16A/250V rated capacity with 50-60 Hz frequency compatibility meeting international electrical standards
- Red color (RAL 3020) for clear visual identification in emergency power supply applications
- Compact dimensions (180mm x 45mm x 40mm) with 31.5mm built-in depth for seamless integration
- Wide operating temperature range (-5°C to 35°C) with extended storage capability (-10°C to 70°C)
Technical Specifications
| Specification |
Value |
| Product Type | Multi-Support Multiple Socket Outlet |
| Standard | German Standard (Mosaic Programme) |
| Socket Configuration | 4x2P+E (4 sockets with protective contact) |
| Protective Contact Type | CEE 7/3 (Type F) |
| Nominal Current | 16 Amperes |
| Nominal Voltage | 250 Volts |
| Frequency | 50-60 Hz |
| Connection Type | Automatic Push-In Clamp Terminals |
| Cable Section | 2.5 mm² (Rigid) |
| Material | Halogen-Free Thermoplastic |
| Color | Red (RAL 3020) |
| Degree of Protection (IP) | IP40 |
| Impact Strength (IK) | IK07 |
| Device Width | 180 mm |
| Device Height | 45 mm |
| Device Depth | 40 mm |
| Built-In Depth | 31.5 mm |
| Operating Temperature Range | -5°C to 35°C |
| Storage Temperature Range | -10°C to 70°C |
| Mounting Method | Snap Mounting (Module Frame) |
| Installation Type | Flush-mounting box, Surface-mounting box, Floor box, Column module, Desktop multi-outlet extension, Office module |
| Tamperproof Feature | Yes - Inclined 45° with tamperproof insert compatibility |
| Loop-Through Function | Yes |
| Enhanced Contact Protection | Yes |
| Number of Modules | 8 modules |
| Voltage Type | AC (Alternating Current) |
| Surface Finishing | Glossy |
| Reference Number | 077283 |
| EAN Code | 3245060772833 |
