Shop Legrand Mosaic Italian Socket Outlet 2P+E 10A White | 077510 In Iraq Best Prices
Premium Italian 2P+E 10A socket outlet from Legrand Mosaic range with enhanced contact protection, halogen-free thermoplastic construction, and modular design for seamless integration.

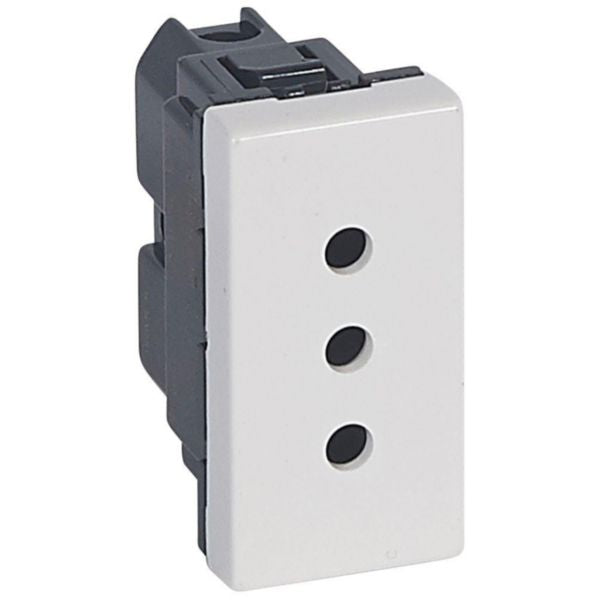

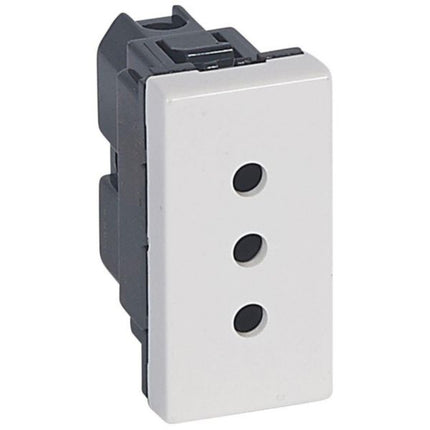

The Legrand Mosaic Socket Outlet Italian 2P+E 10A is a premium modular wiring device designed for residential and commercial applications. This single-module socket outlet features enhanced contact protection and is manufactured from high-quality thermoplastic material, ensuring durability and safety. The Italian P11 type socket is rated for 10 amperes at 250 volts and operates at standard frequencies of 50-60 Hz, making it suitable for a wide range of electrical appliances and devices.
This socket outlet is part of the prestigious Mosaic programme, which represents international standards in modern wiring solutions. The device features screw terminals for secure cable connections supporting flexible or rigid cables with cross-sections of 4-4 mm². The white finish (RAL 9003) provides a clean, contemporary aesthetic that complements any interior design. With a compact modular design measuring 23mm width, 45mm height, and 37mm depth, it integrates seamlessly into standard mounting frames.
The socket outlet is halogen-free and environmentally conscious, featuring IP20 degree of protection and IK04 impact strength rating. It includes enhanced contact protection for added safety and operates reliably within temperature ranges of -5°C to 35°C. The loop-through function allows for convenient daisy-chaining of multiple outlets, making installation more flexible and efficient.
Key Features
- Enhanced contact protection for improved electrical safety and durability
- Halogen-free thermoplastic material ensures environmental compliance and fire safety
- Italian P11 type socket with 10A/250V rating suitable for standard appliances
- Compact modular design with loop-through function for flexible installation
- Screw terminals supporting flexible or rigid cables with 4-4 mm² cross-sections
Technical Specifications
| Specification |
Value |
| Product Type | Socket Outlet - Italian Type P11 |
| Brand | Legrand |
| Series | Mosaic |
| Reference Number | 077510 |
| EAN Code | 3245060775100 |
| Nominal Current | 10 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| Number of Modules | 1 Module |
| Number of Socket Outlets | 1 |
| Protective Contact | Round |
| Connection Type | Screwed Terminal |
| Cable Section | 4-4 mm² |
| Material | Thermoplastic |
| Halogen Free | Yes |
| Color | White (RAL 9003) |
| Device Width | 23 mm |
| Device Height | 45 mm |
| Device Depth | 37 mm |
| Built-in Depth | 27.8 mm |
| Degree of Protection (IP) | IP20 |
| Degree of Impact Strength (IK) | IK04 |
| Operating Temperature Range | -5°C to 35°C |
| Storage Temperature Range | -10°C to 70°C |
| Mounting Method | Module Frame |
| Type of Fastening | Snap Mounting (Engagement) |
| Enhanced Contact Protection | Yes |
| Loop Through Function | Yes |
| Voltage Type | AC |
| Surface Finishing | Glossy |
