Shop Legrand Mosaic Multi-Support Single Socket German Standard 2P+E with Indicator 2 Modules | 077212 In Iraq Best Prices
Premium Legrand Mosaic™ German standard 2P+E single socket outlet with integrated 230V indicator light and antimicrobial white finish. Features multi-support installation, enhanced contact protection, 16A/250V rating, and IP41 protection for residential and commercial applications.

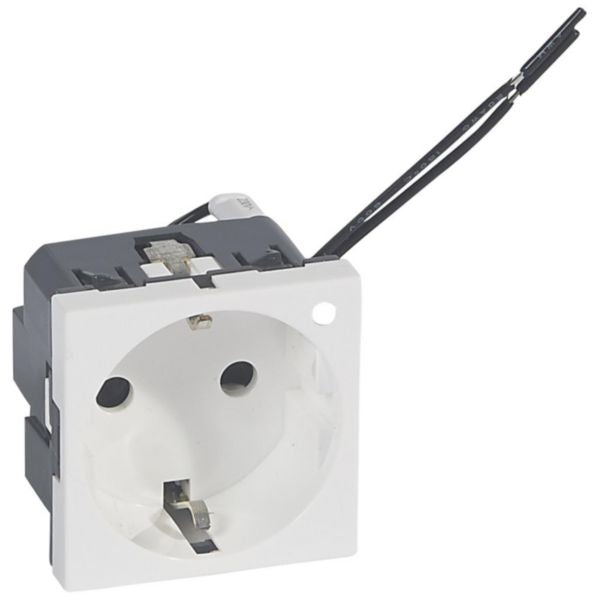

The Legrand Mosaic™ Multi-support single socket is a premium electrical outlet designed to meet German standard specifications (CEE 7/3 type F). This 2-module device features a 2P+E protective contact configuration with an integrated 230V indicator light, providing both safety and functionality. The outlet is finished in white antimicrobial material containing a silver compound that actively prevents bacterial growth on the surface, making it ideal for healthcare facilities, kitchens, and hygiene-sensitive environments.
This versatile socket outlet is engineered for multi-support installation capabilities, allowing seamless integration into flush-mounting boxes, surface-mounting boxes, floor boxes, column modules, desktop multi-outlet extensions, office modules, and trunking systems. The automatic push-in clamp terminals ensure secure and reliable electrical connections with cable sections ranging from 2.5 to 2.5 mm². With enhanced contact protection and a robust design rated for IP41 protection and IK04 impact strength, this outlet delivers exceptional durability and safety performance.
The Mosaic™ programme represents the pinnacle of modern electrical design, combining aesthetic appeal with practical functionality. Rated for 16A at 250V with 50-60 Hz frequency compatibility, this 2-module socket outlet is perfect for residential, commercial, and institutional applications requiring German standard compliance and antimicrobial protection.
Key Features
- Multi-support installation compatible with flush-mounting boxes, surface-mounting boxes, floor boxes, and trunking systems
- Integrated 230V indicator light with 2.4 mA consumption for visual power confirmation
- White antimicrobial finish with silver compound to prevent bacterial growth on surface
- Enhanced contact protection with automatic push-in clamp terminals for secure connections
- German standard (CEE 7/3 type F) compliance with 2P+E protective contact configuration
- Rated for 16A at 250V with 50-60 Hz frequency compatibility
- IP41 protection degree and IK04 impact strength for durability
- 2-module modular design for flexible integration into electrical systems
- Cable section compatibility: 2.5-2.5 mm² for reliable wiring connections
- Operating temperature range: -5 to 35°C for diverse environmental conditions
Technical Specifications
| Specification |
Value |
| Product Reference | REF. 077212 |
| EAN Code | 3245060772123 |
| Brand | Legrand |
| Product Line | Mosaic™ |
| Socket Type | CEE 7/3 (Type F) - German Standard |
| Number of Modules | 2 modules |
| Number of Socket Outlets | 1 single outlet |
| Protective Contact Configuration | 2P+E with indicator |
| Indicator Light | 230V indicator with 2.4 mA consumption |
| Material | Thermoplastic - White antimicrobial |
| Antimicrobial Treatment | Yes - Silver compound for bacterial prevention |
| Colour | White (RAL 9003) |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| Protection Degree | IP41 |
| Impact Strength | IK04 |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 43 mm |
| Built-in Depth | 34.5 mm |
| Minimum Built-in Box Depth | 40 mm |
| Connection Type | Push-in clamp terminals |
| Cable Section | 2.5-2.5 mm² |
| Cable Nature | Rigid |
| Operating Temperature Range | -5 to 35°C |
| Storage Temperature Range | -10 to 70°C |
| Voltage Type | AC (Alternating Current) |
| Number of Active Contacts (Round) | 2 |
| Enhanced Contact Protection | Yes |
| Halogen Free | Yes |
| Surface Finishing | Glossy |
| Mounting Method | Module frame snap mounting |
| Loop Through Function | Yes |
| Switchable Outlets | 0 |
| Phase-Separated Outlets | No |
| On/Off Switch | No |
| Power Delivery Support | No |
| Smart Home Compatibility | Not compatible with Apple HomeKit, Amazon Alexa, or Google Assistant |
| Wi-Fi Features | No Wi-Fi signal repeater or Bluetooth speaker |
| Heavy Conditions (VDE) | Not suitable for heavy conditions according to VDE |
