Shop Legrand Mosaic Multi-Support Single Socket German Standard 2P+E | 077211 In Iraq Best Prices
German standard 2P+E single socket with child protection shutters, 16A/250V, multi-support installation capability, white thermoplastic finish, automatic terminals, IK04 impact rated

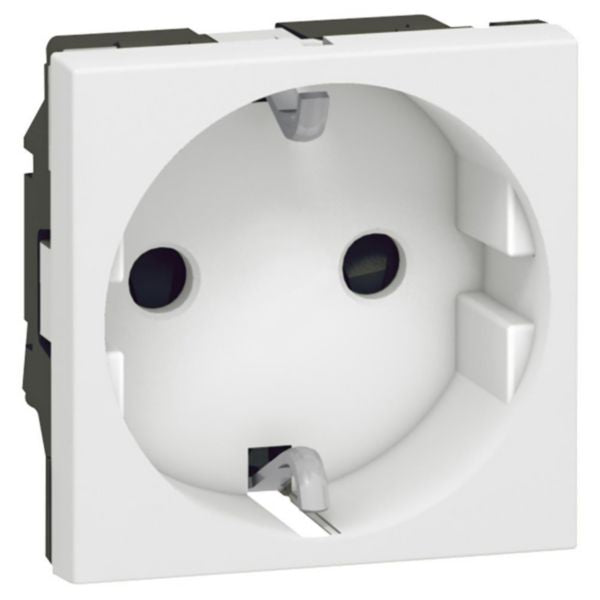

The Legrand Mosaic Multi-Support Single Socket is a premium German standard electrical outlet designed for versatile installation across multiple mounting options. This 2-module device features a 2P+E socket with protective contact CEE 7/3 (type F) configuration and includes enhanced child protection shutters. The socket is rated at 16A, 250V with 50-60Hz frequency compatibility, making it suitable for both residential and commercial applications.
This multi-support socket can be installed in flush-mounting boxes, surface-mounting boxes, floor boxes, column modules, desktop multi-outlet extensions, office modules, and trunking systems. The white thermoplastic construction offers durability with a glossy finish and halogen-free material composition. The automatic push-in clamp terminal connections ensure secure and reliable electrical contact, while the IK04 impact strength rating provides protection against mechanical stress.
The Mosaic range represents Legrand's commitment to quality and innovation in electrical installation devices. With its modular design, this socket integrates seamlessly into modern building infrastructure while maintaining compatibility with existing installation systems. The product meets stringent European standards and certifications, including VDE compliance and CB certification, ensuring safety and performance across all applications.
Key Features
- German standard 2P+E socket configuration with CEE 7/3 (type F) protective contact
- Enhanced child protection shutters for safe operation in residential environments
- Multi-support installation in flush-mounting boxes, surface boxes, floor boxes, and trunking systems
- Automatic push-in clamp terminals for secure and reliable electrical connections
- White thermoplastic construction with halogen-free material composition
- 16A/250V rated capacity with 50-60Hz frequency compatibility
- IK04 impact strength rating for mechanical durability
- Modular 2-module design for flexible integration into building infrastructure
- IP20 degree of protection suitable for standard indoor environments
- Loop through function capability for daisy-chain installations
Technical Specifications
| Specification |
Value |
| Product Type | Multi-support Single Socket Outlet |
| Standard | German Standard (CEE 7/3 Type F) |
| Socket Configuration | 2P+E with Protective Contact |
| Rated Current | 16 A |
| Rated Voltage | 250 V |
| Frequency | 50-60 Hz |
| Number of Modules | 2 modules |
| Material | Thermoplastic (Halogen-free) |
| Color | White (RAL 9003) |
| Surface Finish | Glossy |
| Connection Type | Push-in Clamp (Automatic Terminals) |
| Cable Section | 2.5 mm² |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 43 mm |
| Built-in Depth | 34.5 mm |
| Minimum Box Depth | 40 mm |
| Protection Degree | IP20 |
| Impact Strength Rating | IK04 |
| Child Protection | Enhanced Contact Protection Shutters |
| Operating Temperature | -5 to +35 °C |
| Storage Temperature | -10 to +70 °C |
| Mounting Method | Module Frame (Snap Mounting) |
| Installation Options | Flush-mounting box, Surface-mounting box, Floor box, Column module, Desktop extension, Office module, Trunking |
| Loop Through Function | Yes |
| Voltage Type | AC |
| Number of Socket Outlets | 1 |
| Reference Number | 077211 |
| EAN Code | 3245060772116 |
| Certifications | VDE, CB, MEEI, NEMKO |
Order Legrand Mosaic Multi-Support Single Socket German Standard 2P+E | 077211 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
