Shop Legrand Mosaic Double USB Type-C Charging Socket 5V 3A White | 077590 In Iraq Best Prices
Premium dual USB Type-C charging socket with 5V 3A power delivery, advanced surge protection, and efficient Class II SELV design for fast charging smartphones and tablets in modern homes and offices.

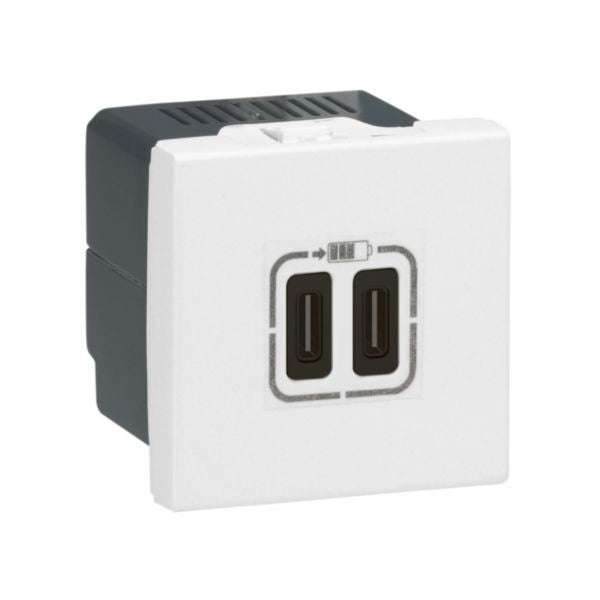

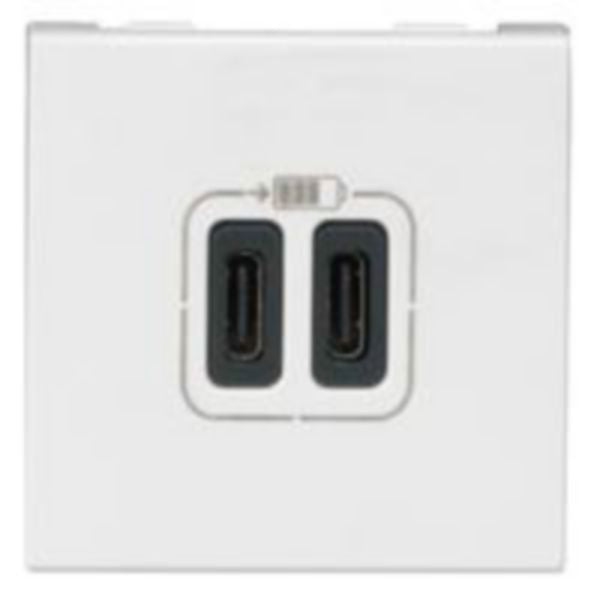

The Legrand Mosaic Double USB Type-C + Type-C charging socket is a modern, high-performance charging solution designed for contemporary homes and offices. This dual USB Type-C socket delivers 5V at 3A with a total power output of 15W, making it ideal for fast charging smartphones, tablets, and other portable devices. The socket features advanced surge protection exceeding 1 kV, ensuring your valuable electronics are protected from electrical fluctuations and power surges.
Built to the highest standards, this charging socket conforms to IEC 62680-1-3 specifications and operates at the highest efficiency level (VI) for power supply AC/DC conversion. With a passive consumption of less than 0.07W, it minimizes energy waste when not in use. The socket is equipped with 2 x 2.5 mm² screw terminals for secure, reliable connections and is classified as Class II SELV for enhanced safety. The module system comprises 2 modules and features a sleek white finish that seamlessly integrates with any interior design.
The Mosaic programme mechanisms ensure compatibility with standard flush-mounted receptacles and floor sockets. Installation is straightforward with a built-in depth of 33mm and minimum installation box depth of 40mm. The device dimensions are 45mm width x 45mm height x 42mm depth, making it compact yet functional. This charging socket is halogen-free, environmentally conscious, and backed by comprehensive technical documentation and BIM data for professional installation.
Key Features
- Dual USB Type-C ports for simultaneous charging of two devices
- 5V 3A output with 15W total power delivery for fast charging
- Advanced surge protection exceeding 1 kV for device safety
- Class II SELV classification with enhanced electrical safety
- Ultra-low passive consumption of less than 0.07W when idle
- IEC 62680-1-3 compliant universal charger for all Type-C devices
- Highest efficiency level (VI) AC/DC power conversion
- Halogen-free construction for environmental sustainability
- 2 x 2.5 mm² screw terminals for secure connections
- Compact 2-module design with sleek white finish
- IP40 degree of protection rating
- IK04 impact strength for durability
- Operating temperature range 0-45°C for reliable performance
- Compatible with standard flush-mounted receptacles and floor sockets
- Comprehensive BIM data and technical documentation included
Technical Specifications
| Specification |
Value |
| Brand | Legrand |
| Product Line | Mosaic |
| Reference Number | 077590 |
| EAN Code | 3414971003323 |
| USB Port Type | Type-C |
| Number of USB Ports | 2 |
| Number of Modules | 2 |
| Output Voltage | 5V DC |
| Maximum Output Current | 3000 mA (3 A) |
| Total Power Output | 15 W |
| Input Voltage Range | 100-240 V AC |
| Frequency | 50-60 Hz |
| Power Consumption (Passive) | 0.064 W (less than 0.07 W) |
| Supply Current | 0.5 A |
| Connection Type | Screw Terminal |
| Terminal Capacity | 1.5-2.5 mm² |
| Number of Terminals | 2 |
| Cable Type | Flexible or Rigid |
| Cable Section | 1.5-2.5 mm² |
| Mounting Method | Flush-mounted |
| Device Width | 45 mm |
| Device Height | 45 mm |
| Device Depth | 42 mm |
| Built-in Depth | 33 mm |
| Minimum Installation Box Depth | 40 mm |
| Color | White |
| RAL Number | 9003 |
| Degree of Protection (IP) | IP40 |
| Impact Strength (IK) | IK04 |
| Safety Classification | Class II SELV |
| Surge Protection | Greater than 1 kV |
| Efficiency Level | VI (Highest) |
| Operating Temperature Range | 0-45°C |
| Storage Temperature Range | -20-70°C |
| Voltage Type | AC |
| Power Delivery | No |
| Halogen Free | Yes |
| Antimicrobial Treatment | No |
| Wireless | No |
| Mandatory Neutral | Yes |
| Terminal Marking Indication | Yes |
| Stress Test Conformity (1000V) | No |
| Standards Compliance | IEC 62680-1-3 |
| Suitable for IP Rating | IP40 |
Order Legrand Mosaic Double USB Type-C Charging Socket 5V 3A White | 077590 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
