Shop Legrand Mosaic Danish Socket Outlet 2P+E UPS White | 077509 In Iraq Best Prices

Premium Danish Type K socket outlet with child safety shutters, 13A/250V, designed for UPS systems with halogen-free construction and IP41 protection rating.

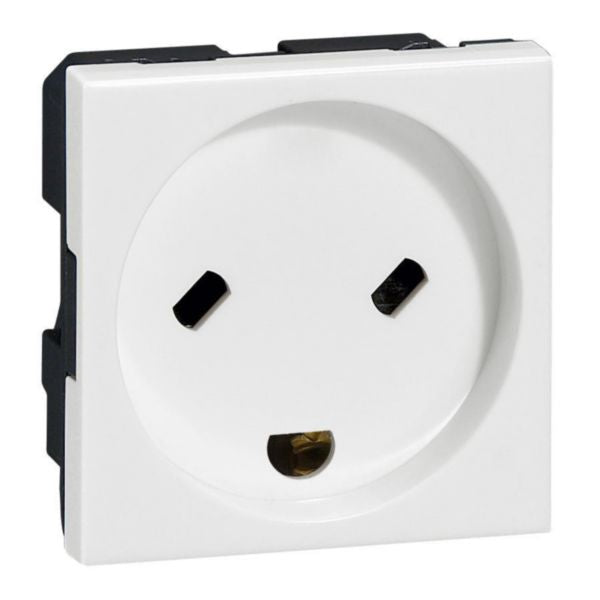

The Legrand Mosaic Socket Outlet is a premium Danish standard (Type K) electrical outlet designed for safe and reliable power distribution. This 2-module socket outlet features enhanced child protection with integrated shutters, making it ideal for residential and commercial applications. The outlet is specifically engineered for UPS (Uninterruptible Power Supply) systems, ensuring stable power delivery for critical equipment. This socket outlet combines modern design with practical functionality, featuring a push-in clamp connection system for secure cable installation. With a nominal current rating of 13A at 250V, it supports both 50-60 Hz frequencies, making it suitable for international use. The white finish provides a clean, contemporary aesthetic that complements any interior design scheme. The Mosaic programme mechanisms meet international standards and are constructed from halogen-free thermoplastic material, ensuring environmental compliance and safety. The device includes an eject mechanism and features IP41 degree of protection with IK04 impact strength rating, providing durability in demanding environments. Installation is straightforward using the snap-mounting system compatible with standard module frames.

Key Features

Danish Standard Type K socket outlet for international compatibility
Enhanced child protection with integrated safety shutters
Designed specifically for UPS (Uninterruptible Power Supply) systems
Halogen-free thermoplastic construction for environmental safety
Push-in clamp connection system for secure cable installation
IP41 degree of protection with IK04 impact strength rating
13A nominal current at 250V with 50-60 Hz frequency support
Snap-mounting system compatible with standard module frames
White finish for contemporary aesthetic appeal

Technical Specifications

Specification	Value
Product Type	Socket Outlet - Danish Standard (Type K)
Reference Number	077509
EAN Code	3245060775094
Brand	Legrand
Programme	Mosaic
Number of Modules	2 modules
Nominal Current	13 A
Nominal Voltage	250 V
Frequency Range	50-60 Hz
Number of Phases	1
Number of Active Contacts (Round)	1
Protection Degree (IP Rating)	IP41
Impact Strength (IK Rating)	IK04
Device Width	45 mm
Device Height	45 mm
Device Depth	31 mm
Built-in Depth	22.5 mm
Connection Type	Push-in clamp
Cable Section Range	2.5-2.5 mm²
Material	Thermoplastic (Halogen-free)
Color	White
RAL Number (Similar)	9003
Surface Finishing	Glossy
Mounting Method	Module frame (Snap mounting)
Child Protection	Yes - With shutters
Loop Through Function	Yes
Operating Temperature Range	-5 to +35 °C
Storage Temperature Range	-10 to +70 °C
Voltage Type	AC
Special Application	UPS (Uninterruptible Power Supply)

Order Legrand Mosaic Danish Socket Outlet 2P+E UPS White | 077509 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
