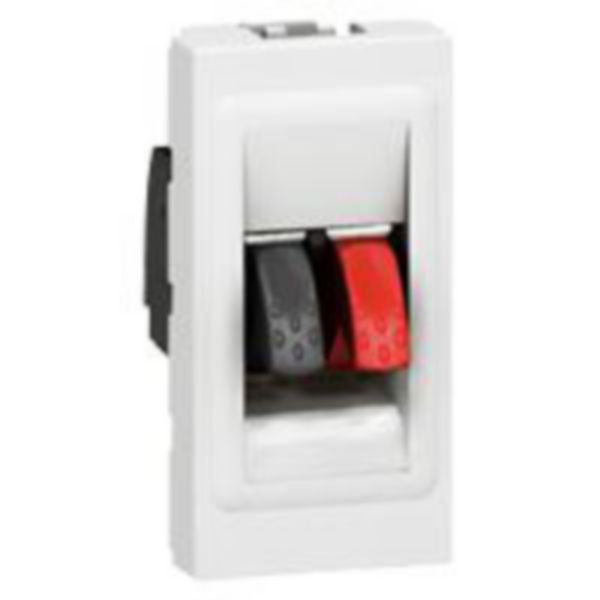

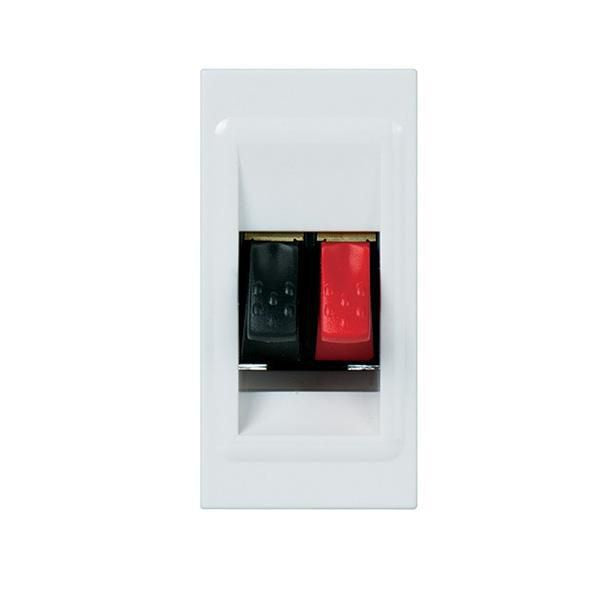

Shop Legrand Mosaic Audio Loudspeaker Socket 4mm² 1 Module White | 078750 In Iraq Best Prices
Premium flush-mounted audio socket with 4mm² terminal capacity, white finish, 1 module design, halogen-free thermoplastic construction, IP41 protection for reliable loudspeaker connectivity
The Legrand Mosaic Audio Socket is a premium loudspeaker connection solution designed for modern residential and commercial installations. This flush-mounted audio socket features a 4 mm² terminal capacity, making it ideal for connecting loudspeakers and audio equipment in home theaters, living rooms, and professional audio setups. The socket is constructed with high-quality thermoplastic material and is halogen-free, ensuring safety and environmental compliance. With its elegant white finish and modular design, it seamlessly integrates into any interior décor while maintaining professional-grade audio connectivity standards.
This 1-module Mosaic audio socket is engineered with precision engineering and robust construction to provide reliable audio signal transmission. The straight outlet direction ensures proper cable management and secure connections. The device features a hinged lid with dust cover protection, preventing contamination and ensuring long-term performance. Its compact dimensions (22.5 mm width, 45 mm height, 31.4 mm depth) allow for easy installation in flush-mounted applications without requiring extensive modifications to walls or surfaces. The socket operates reliably across a wide temperature range from -5°C to 35°C, making it suitable for various climatic conditions.
Designed to meet international safety standards with an IP41 degree of protection and IK04 impact strength rating, this Mosaic audio socket delivers professional-grade performance for demanding audio applications. The modular system allows for flexible installation configurations, and the engage snap-type fastening system ensures quick and secure mounting. Whether you're upgrading your home entertainment system or installing professional audio infrastructure, the Legrand Mosaic Audio Socket provides the reliability and quality that professionals trust.
Key Features
- 4mm² terminal capacity for reliable loudspeaker connections
- Flush-mounted design with hinged lid and dust cover protection
- Halogen-free thermoplastic material ensures safety and environmental compliance
- Modular 1-module system with snap-type engage fastening for easy installation
- IP41 degree of protection and IK04 impact strength rating for durability
Technical Specifications
| Specification |
Value |
| Product Name | Mosaic Audio Socket - Loudspeaker Socket |
| Reference Number | 078750 |
| EAN Code | 3245060787509 |
| Terminal Capacity | 4 mm² |
| Color | White |
| RAL Number | 9003 |
| Number of Modules | 1 |
| Material | Thermoplastic |
| Halogen Free | Yes |
| Mounting Method | Flush-mounted |
| Outlet Direction | Straight |
| Device Width | 22.5 mm |
| Device Height | 45 mm |
| Device Depth | 31.4 mm |
| Built-in Depth | 23.6 mm |
| IP Protection Degree | IP41 |
| Impact Strength Degree | IK04 |
| Operating Temperature Range | -5°C to 35°C |
| Storage Temperature Range | -10°C to 70°C |
| Fastening Type | Engage (Snap) |
| Hinged Lid | Yes |
| Dust Cover | No |
| Support Ring | No |
| Strain Relief | No |
| Antimicrobial Treatment | No |
