Shop Legrand Mosaic 4x2P+E Socket Outlet Trunking White | 077404 In Iraq Best Prices
Premium 4-outlet Mosaic socket for DLP trunking with automatic terminals, 16A 250V, white finish, IP40 protection, and enhanced safety features

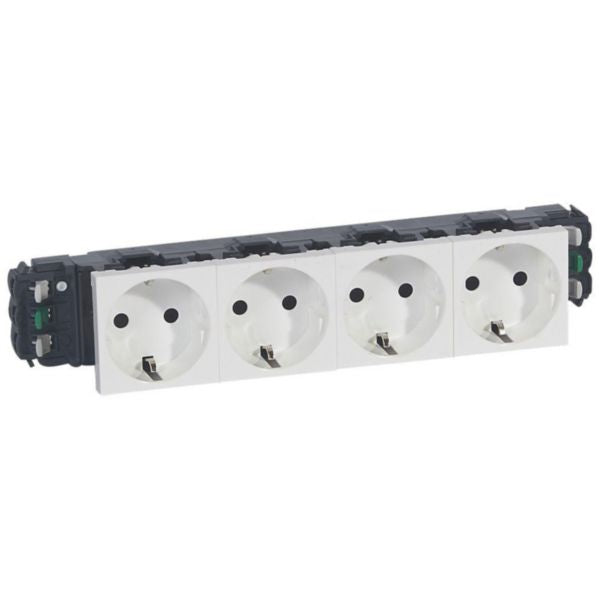

The Legrand Mosaic Socket Outlet is a premium modular wiring device designed for installation on DLP trunking systems. This 4-module socket outlet features four individual 2P+E power outlets with protective contact CEE 7/3 (type F) configuration, providing safe and reliable power distribution for residential and commercial applications. Manufactured in white thermoplastic material, this socket outlet combines functionality with aesthetic appeal, making it ideal for modern interior installations.
Featuring automatic push-in clamp terminals, this socket outlet enables tool-free direct connection and intuitive disconnection without requiring support dismantling. The device is rated for 16A at 250V with 50-60Hz frequency operation, ensuring compatibility with standard European electrical systems. With enhanced contact protection and IP40 degree of protection, this socket outlet meets rigorous safety standards while maintaining durability in typical indoor environments. The device dimensions of 225mm width, 45mm height, and 44mm depth ensure seamless integration with standard trunking systems.
The Mosaic programme socket outlet is specifically engineered for mounting on 65mm and 85mm cover DLP trunking using dedicated supports and plates. Its halogen-free thermoplastic construction demonstrates environmental responsibility, while the glossy white finish provides a professional appearance. Operating temperatures range from -5°C to 35°C, and storage temperatures from -10°C to 70°C, ensuring reliable performance across various climatic conditions. This socket outlet is certified and compliant with international standards, making it a trusted choice for electrical installations requiring quality and reliability.
Key Features
- Four 2P+E power outlets with CEE 7/3 type F protective contact
- Automatic push-in clamp terminals for tool-free connection
- Designed for 65mm and 85mm cover DLP trunking systems
- Enhanced contact protection with IP40 degree of protection
- Halogen-free thermoplastic construction for environmental safety
- 16A 250V rated for 50-60Hz operation
- Modular 8-module system for flexible installation
- White glossy finish for modern aesthetic appeal
- Compatible with Mosaic programme supports and plates
- Intuitive disconnection without support dismantling
Technical Specifications
| Specification |
Value |
| Product Type | Socket outlet with protective contact CEE 7/3 (type F) |
| Number of Outlets | 4 x 2P+E sockets |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| Connection Type | Push-in clamp (automatic terminals) |
| Material | Halogen-free thermoplastic |
| Colour | White (RAL 9003) |
| Device Width | 225 mm |
| Device Height | 45 mm |
| Device Depth | 44 mm |
| Built-in Depth | 44 mm |
| Degree of Protection | IP40 |
| Impact Strength | IK04 |
| Mounting Method | Wall duct (DLP trunking) |
| Fastening Type | Snap mounting (engagement) |
| Number of Modules | 8 modules |
| Contact Protection | Enhanced contact protection with shutters |
| Operating Temperature | -5°C to +35°C |
| Storage Temperature | -10°C to +70°C |
| Cable Section | 2.5-2.5 mm² |
| Voltage Type | AC |
| Surface Finish | Glossy |
| Concurrent Neutral Switching | No |
| Loop Through Function | Yes |
| Reference Number | 077404 |
| EAN Code | 3245060774042 |
