Shop Legrand Mosaic 4x2P+E Socket Outlet Trunking Red | 077414 In Iraq Best Prices
Premium Mosaic 4x2P+E modular socket outlet for DLP trunking with automatic push-in terminals, German standard, red color, 16A/250V, halogen-free construction

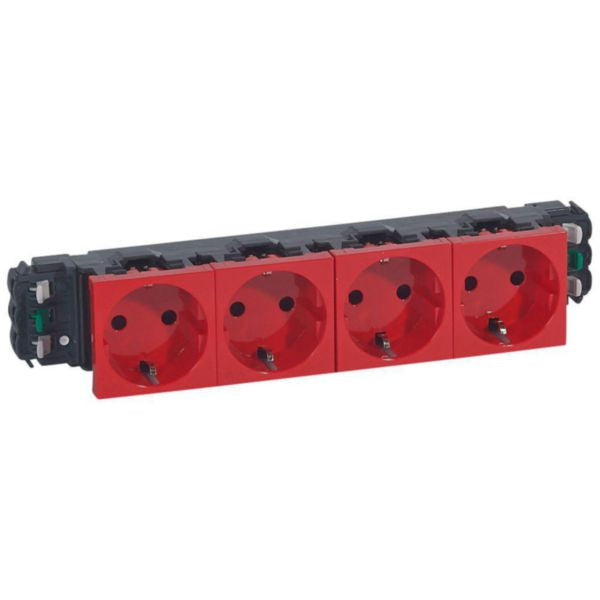

The Legrand Mosaic 4x2P+E socket outlet is a premium modular electrical socket designed for installation on DLP trunking systems. This German standard socket features four socket outlets with protective contact CEE 7/3 (type F) configuration, providing reliable power distribution for residential and commercial applications. The socket is equipped with automatic push-in clamp terminals that require no tools for installation, ensuring quick and intuitive connection without dismantling the support structure.
Designed specifically for DLP trunking systems with 65 and 85 mm cover compatibility, this Mosaic socket outlet offers enhanced contact protection and operates at 16A nominal current with 250V nominal voltage. The red color coding indicates it is part of the additional safety power supply category, making it ideal for specialized applications requiring separate power distribution. The device features a glossy thermoplastic construction that is halogen-free, meeting modern safety and environmental standards.
With its modular design accommodating 8 modules and snap-mounting capability, the Mosaic 4x2P+E socket provides exceptional flexibility for electrical installations. The product maintains IP40 degree of protection and IK04 impact strength rating, ensuring durability in various indoor environments. Operating temperature range of -5 to 35°C and storage temperature range of -10 to 70°C make it suitable for diverse climate conditions.
Key Features
- Four 2P+E socket outlets with protective contact CEE 7/3 (type F) configuration
- Automatic push-in clamp terminals requiring no tools for installation
- Compatible with DLP trunking systems 65 and 85 mm cover sizes
- Halogen-free thermoplastic construction meeting modern safety standards
- Enhanced contact protection with IP40 degree of protection and IK04 impact strength
- Red color coding for additional safety power supply applications
- Modular design accommodating 8 modules with snap-mounting capability
- 16A nominal current at 250V nominal voltage, 50-60 Hz frequency
- Loop-through functionality for extended wiring capabilities
- Operating temperature range -5 to 35°C with storage range -10 to 70°C
Technical Specifications
| Specification |
Value |
| Product Type | Socket outlet with protective contact CEE 7/3 (type F) |
| Number of Socket Outlets | 4 outlets |
| Number of Modules | 8 modules |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| Connection Type | Push-in clamp (automatic terminals) |
| Mounting Method | Wall duct / Snap mounting |
| Compatible Trunking | DLP trunking 65 and 85 mm cover |
| Material | Thermoplastic, halogen-free |
| Color | Red (RAL 3020) |
| Device Dimensions | 225 mm (width) x 45 mm (height) x 44 mm (depth) |
| Built-in Depth | 44 mm |
| Degree of Protection | IP40 |
| Impact Strength Rating | IK04 |
| Operating Temperature Range | -5°C to 35°C |
| Storage Temperature Range | -10°C to 70°C |
| Cable Section | 2.5 mm² |
| Voltage Type | AC |
| Contact Protection | Enhanced contact protection with shutters |
| Loop-Through Function | Yes |
| Power Supply Category | Additional safety power supply (red) |
| Reference Number | 077414 |
| EAN Code | 3245060774141 |
