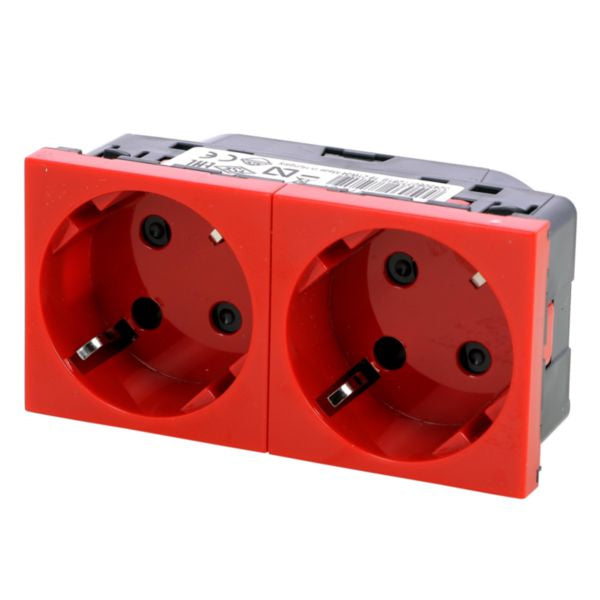

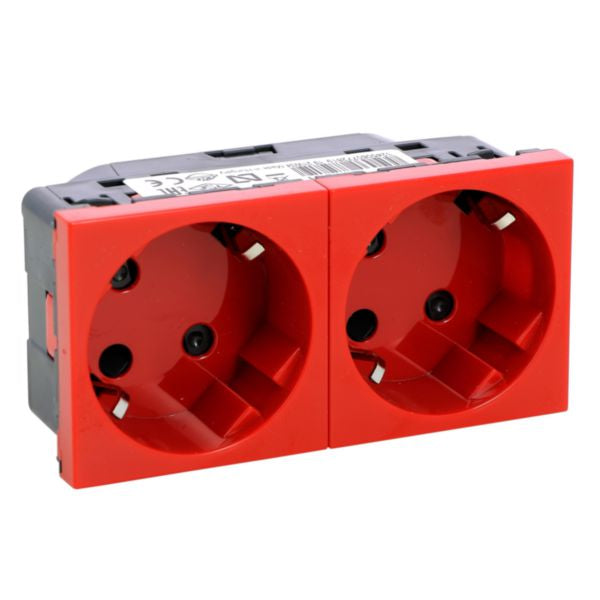

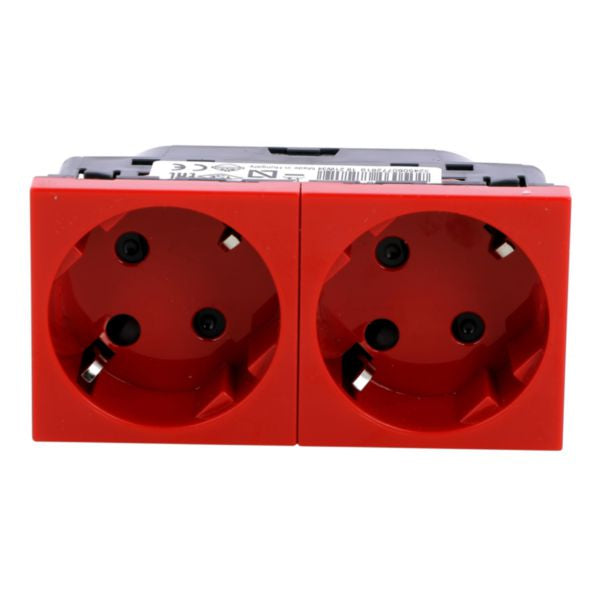

Shop Legrand Mosaic Double Socket 2x2P+E Tamperproof Red | 077281 In Iraq Best Prices
Legrand Mosaic dual 2P+E tamperproof multiple socket outlet with German standard design, 16A/250V rated, IP40 protection, and automatic push-in terminals for secure installation.
The Legrand Mosaic Multi-support Multiple Socket is a premium German standard electrical outlet designed for versatile installation applications. This professional-grade socket features dual 2P+E automatic terminal connections with enhanced tamperproof protection, making it ideal for residential, commercial, and office environments. The red color and IK07 impact resistance rating ensure durability in demanding installations.
This modular device is compatible with multiple installation methods including flush-mounting boxes, surface-mounting boxes, floor boxes, column modules, desktop multi-outlet extensions, and office modules. The socket accommodates 16A nominal current at 250V with 50-60Hz frequency, providing reliable power distribution. The 45-degree inclined design and automatic push-in clamp terminals ensure secure and efficient cable connections with rigid conductors ranging from 2.5 to 2.5mm².
The tamperproof insert design provides enhanced safety features, particularly suitable for environments where child safety or security is a concern. With IP40 protection rating and halogen-free thermoplastic construction, this socket meets modern electrical standards and environmental requirements. The device dimensions of 90mm width, 45mm height, and 40mm depth, with a 31.5mm built-in depth, make it compatible with standard European electrical installation systems.
Key Features
- Dual 2P+E automatic terminal connections for secure cable attachment
- Tamperproof protection insert for enhanced safety in sensitive environments
- German standard design compatible with multiple installation methods
- IK07 impact resistance rating ensuring durability in demanding conditions
- Halogen-free thermoplastic construction meeting modern environmental standards
- IP40 protection rating suitable for indoor residential and commercial use
- 45-degree inclined design for optimal cable management and accessibility
- 16A nominal current capacity at 250V with 50-60Hz frequency support
Technical Specifications
| Specification |
Value |
| Product Name | Mosaic Multi-support Multiple Socket 2x2P+E Automatic Terminal Tamperproof |
| Reference Number | 077281 |
| EAN Code | 3245060772819 |
| Brand | Legrand |
| Socket Type | CEE 7/3 Type F with Protective Contact |
| Number of Sockets | 2 |
| Number of Modules | 4 |
| Connection Type | Push-in Clamp Automatic Terminals |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| Voltage Type | AC |
| Protection Degree (IP) | IP40 |
| Impact Strength (IK) | IK07 |
| Material | Halogen-free Thermoplastic |
| Color | Red (RAL 3021) |
| Device Width | 90 mm |
| Device Height | 45 mm |
| Device Depth | 40 mm |
| Built-in Depth | 31.5 mm |
| Cable Section | 2.5-2.5 mm² |
| Cable Nature | Rigid |
| Operating Temperature Range | -5 to +35 °C |
| Storage Temperature Range | -10 to +70 °C |
| Mounting Method | Module Frame Snap Mounting |
| Installation Options | Flush-mounting box, surface-mounting box, floor box, column module, desktop extension, office module |
| Safety Features | Enhanced Tamperproof Protection Insert |
| Protective Contact | Yes |
| With Loop Through Function | Yes |
| Hinged Lid | No |
Order Legrand Mosaic Double Socket 2x2P+E Tamperproof Red | 077281 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
