Premium 2P+E socket outlet for DLP trunking installation with screw terminals, German standard compliance, protective shutters, and IP20 protection rating.

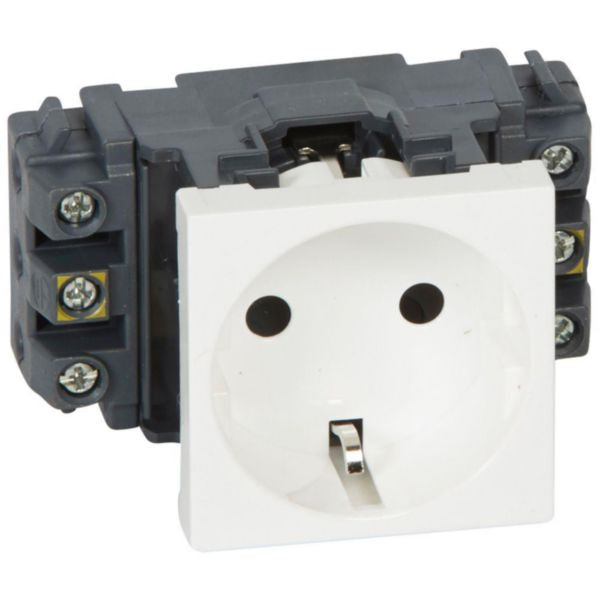

The Legrand Mosaic™ Socket Outlet 2P+E (Reference 077601) is a premium electrical socket designed specifically for installation on DLP trunking systems. This German standard-compliant socket features protective shutters and innovative connection technology that requires no tools for installation. The socket is equipped with screw terminals for secure wire connection and supports both 65mm and 85mm cover DLP trunking installations. Built with white thermoplastic material, this modular device integrates seamlessly into modern electrical installations and provides reliable power distribution with enhanced contact protection.
Designed for both residential and small commercial applications, this Mosaic socket outlet delivers professional-grade performance with a 16A nominal current rating at 250V. The device features intuitive disconnection without dismantling supports, making maintenance and troubleshooting straightforward. With its halogen-free construction and IP20 protection rating, it meets contemporary safety and environmental standards. The socket's 2-module configuration and snap-mounting system ensure quick installation while maintaining the aesthetic appeal of the Mosaic range.
This socket outlet is certified to multiple international standards including NEMKO, VDE, and other compliance certifications, ensuring reliability and safety across different regions. The protective contact design (CEE 7/3 type F) provides grounding protection, making it suitable for various electrical applications. Whether used in new installations or retrofitting projects, the Mosaic 2P+E socket offers durability, safety, and professional appearance.
Key Features
- Tool-free installation with intuitive disconnection system for easy maintenance
- Compatible with 65mm and 85mm DLP trunking cover systems
- Protective shutters with enhanced contact protection (IP20 rated)
- Halogen-free thermoplastic construction for environmental safety
- Screw terminal connection supporting 4-4mm² flexible or rigid cables
- 16A/250V nominal rating with CEE 7/3 Type F protective contact
- 2-module modular design with snap-mounting system
- International certifications: NEMKO, VDE, and additional compliance standards
- White glossy finish with professional aesthetic appearance
- Suitable for residential and small commercial applications
Technical Specifications
| Specification |
Value |
| Product Reference | 077601 |
| EAN Code | 3245060776015 |
| Brand | Legrand |
| Product Range | Mosaic™ |
| Socket Type | 2P+E with protective contact CEE 7/3 (Type F) |
| Installation Type | DLP Trunking (65mm and 85mm) |
| Connection Method | Screw terminals |
| Nominal Current | 16 A |
| Nominal Voltage | 250 V |
| Frequency | 50-60 Hz |
| Number of Socket Outlets | 1 |
| Number of Modules | 2 modules |
| Material | Thermoplastic (Halogen-free) |
| Colour | White (RAL 9003) |
| Surface Finish | Glossy |
| Protection Rating (IP) | IP20 |
| Impact Strength Rating (IK) | IK04 |
| Device Width | 72 mm |
| Device Height | 45 mm |
| Device Depth | 45 mm |
| Built-in Depth | 45 mm |
| Cable Section Range | 4-4 mm² |
| Cable Type | Flexible or rigid |
| Operating Temperature Range | -5 to +35 °C |
| Storage Temperature Range | -10 to +70 °C |
| Mounting Method | Snap mounting (engagement) |
| Contact Protection | Enhanced contact protection with shutters |
| Loop Through Function | Yes |
| Voltage Type | AC |
| Certifications | NEMKO, VDE, OC/CB-FR, MEEI-UP |
