Shop Legrand Mono Safety Equipment Transformer 230/400V to 12/24V 310VA | 42845 In Iraq Best Prices
Professional-grade mono safety transformer with 230/400V primary and 12/24V secondary outputs, 310VA capacity, Type B insulation, and IP2X protection for secure equipment isolation

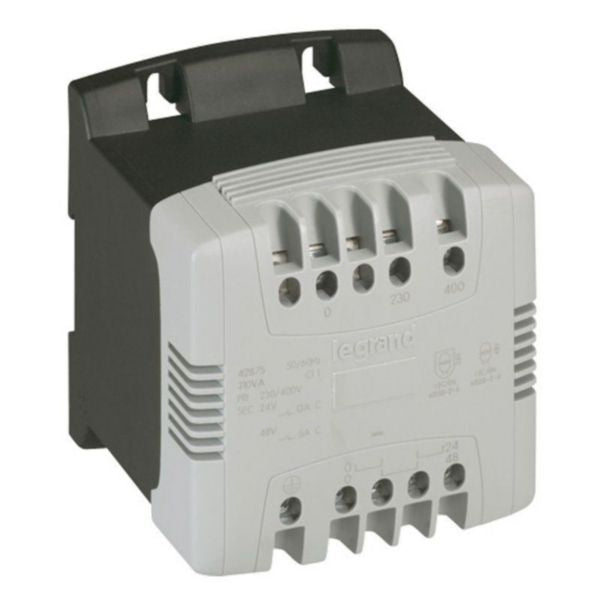

The Legrand Mono Safety Equipment Transformer (REF. 042845) is a premium single-phase safety transformer designed for low-voltage applications requiring enhanced electrical safety and isolation. This transformer features dual primary voltage inputs of 230V and 400V with corresponding secondary outputs of 12V and 24V, making it versatile for various equipment safety applications. With a rated apparent power of 310 VA, this transformer is specifically engineered as a safety transformer to provide secure isolation between primary and secondary circuits, meeting international safety standards.
This transformer is constructed with Type B insulation material according to IEC 85 standards, ensuring superior thermal protection and long-term reliability. The device features flexible cable terminal capacity ranging from 1 to 4 mm² on both primary and secondary sides, allowing for flexible installation configurations. With an IP2X degree of protection, the transformer provides excellent protection against accidental contact with live parts while maintaining efficient thermal dissipation. The compact dimensions of 106mm width, 123mm height, and 115mm depth make it suitable for space-constrained installations.
The transformer exhibits a relative short-circuit voltage of 8.2%, demonstrating excellent voltage regulation characteristics. It is designed as a non-ring core transformer and is not suitable for PCB mounting or distribution board installation, making it ideal for standalone equipment safety applications. This product is fully compliant with RoHS directives and environmental regulations, backed by comprehensive technical documentation and support from Legrand's engineering team.
Key Features
- Certified safety transformer with dual primary voltage inputs (230V and 400V)
- Multiple secondary voltage outputs (12V and 24V) for flexible equipment compatibility
- Type B insulation material meeting IEC 85 international standards for superior thermal protection
- Flexible cable terminal capacity 1-4mm² on both primary and secondary sides
- IP2X degree of protection against accidental contact with live components
Technical Specifications
| Specification |
Value |
| Product Type | Single-phase Safety Transformer |
| Reference Number | 042845 |
| EAN Code | 3245060428457 |
| Rated Apparent Power | 310 VA |
| Primary Voltage 1 | 230V |
| Primary Voltage 2 | 400V |
| Secondary Voltage 1 | 12V |
| Secondary Voltage 2 | 24V |
| Insulation Material Type | Type B (IEC 85) |
| Primary Cable Terminal Capacity | 1 to 4 mm² |
| Secondary Cable Terminal Capacity | 1 to 4 mm² |
| Relative Short-Circuit Voltage | 8.2% |
| Degree of Protection | IP2X |
| Width | 106 mm |
| Height | 123 mm |
| Depth | 115 mm |
| Ring Core | No |
| Short-Circuit Proof | No |
| Isolating Transformer | No |
| Energy Saving Transformer | No |
| PCB Mounting Suitable | No |
| Distribution Board Suitable | No |
| Manufacturer | Legrand |
| Safety Classification | Safety Transformer |
| Compliance Standards | IEC 85, RoHS Directive |
Order Legrand Mono Safety Equipment Transformer 230/400V to 12/24V 310VA | 42845 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
