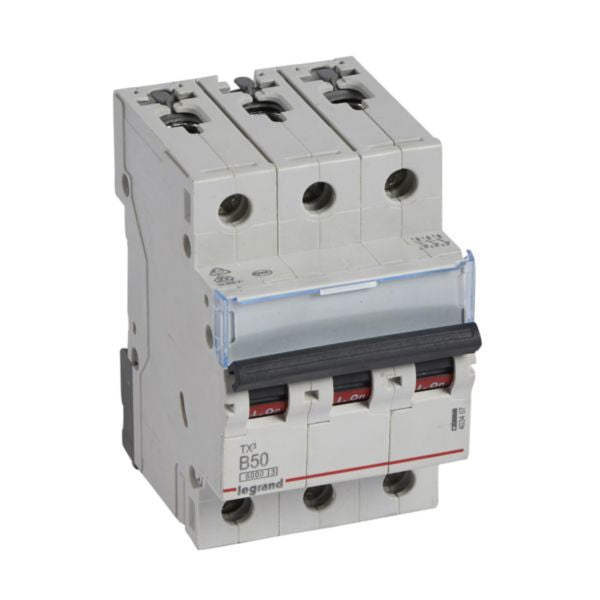

Shop Legrand MCB TX3 6000A 3 Pole 50A Curve B Circuit Breaker | 403407 In Iraq Best Prices

Legrand MCB TX3 3-pole thermal magnetic circuit breaker with 50A rated current, 6000A breaking capacity at 400V, B-curve protection, and IP20 fingerproof design for reliable wiring installation protection.
The Legrand MCB TX3 6000A is a thermal magnetic circuit-breaker designed to protect wiring installations against overloads and short-circuits with exceptional breaking capacity. This 3-pole device features a rated current of 50A and operates at 400V with a breaking capacity of 6000A according to IEC 60898-1 standard. The B-curve tripping characteristic ensures precise short-circuit protection between 150A and 250A (3In to 5In), making it ideal for residential and small commercial panel installations. This circuit breaker offers maximum energy limitation (class 3 according to IEC 60898-1) and provides fingerproof protection (IP20) against solid bodies larger than 12.5mm. The device can be supplied via copper cable, prong busbar (top or bottom side), or fork busbar (bottom side), providing flexible installation options. Built-in depth of 44mm allows for compact installation, while the special DIN rail clamp enables independent removal even when the fork busbar is still in place. The MCB TX3 includes a label holder for clear circuit identification and On/Off indication printed on the handle with red and green backgrounds for easy status recognition. It is compatible with Legrand DX3 auxiliaries and accessories, and complies with all substance-restriction requirements and environmental standards. The halogen-free design and environmentally conscious manufacturing process make it a sustainable choice for modern electrical installations.

Key Features

  • Breaking capacity of 6000A at 400V according to IEC 60898-1 standard for household installations
  • B-curve tripping characteristic with short-circuit protection between 150A and 250A (3In to 5In)
  • Maximum energy limitation class 3 according to IEC 60898-1 standard
  • Fingerproof protection IP20 against solid bodies larger than 12.5mm
  • Compatible with Legrand DX3 auxiliaries and accessories for enhanced functionality
  • Special DIN rail clamp allowing independent removal with fork busbar in place
  • Label holder for clear circuit identification with On/Off indication
  • Flexible supply options: copper cable, prong busbar, or fork busbar
  • Halogen-free design with environmentally conscious manufacturing process
  • Compact built-in depth of 44mm for space-efficient installation

Technical Specifications

Specification Value
Product TypeThermal Magnetic Circuit Breaker (MCB)
Number of Poles3 poles (3P)
Rated Current50 A
Rated Voltage400 V (AC)
Rated Insulation Voltage500 V
Rated Impulse Withstand Voltage4 kV
Breaking Capacity at 400V6 kA (6000A)
Breaking Capacity at 230V10 kA
Release CharacteristicB-curve (150A-250A or 3In-5In)
Current Limiting ClassClass 3
Frequency50-60 Hz
Degree of ProtectionIP20 (Fingerproof)
Degree of Impact StrengthIK02
Width53.1 mm (3 modular spacings)
Height88 mm
Depth77.8 mm (Built-in: 44 mm)
ColorGrey (RAL 7035)
Connection TypeScrewed terminal, Busbar and cable
Electric Supply DirectionTop or bottom
Mounting MethodDIN rail
Storage Temperature-40°C to +70°C
Nominal Voltage Range240-415 V
Halogen FreeYes
Pollution Degree2
Additional EquipmentCompatible with Legrand DX3 auxiliaries and accessories
Reference Number403407
EAN Code3414970387646

Order Legrand MCB TX3 6000A 3 Pole 50A Curve B Circuit Breaker | 403407 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
