Shop Legrand MCB TX3 6000A 2 Pole 13A Curve C Circuit Breaker | 403527 In Iraq Best Prices

Premium 2-pole 13A thermal magnetic circuit breaker with 6000A breaking capacity, C-curve protection, and advanced safety features for residential and commercial installations.

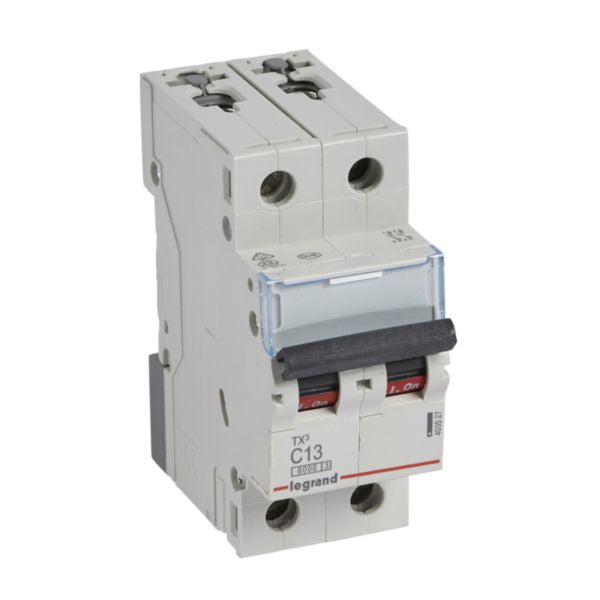

The Legrand MCB TX3 6000A is a thermal magnetic circuit-breaker designed to protect wiring installations against overloads and short-circuits with exceptional 6000A breaking capacity. This 2-pole, 13A rated device features a C-curve characteristic that provides optimal protection for residential and small commercial applications. The circuit breaker can be used not only for protection but also for control and isolation of the installation, making it a versatile solution for modern electrical systems. This device is engineered with advanced safety features including fingerproof protection (IP20) against solid bodies larger than 12.5mm according to IEC/EN 60529 standards. It incorporates maximum energy limitation (class 3 according to IEC 60898-1) to minimize fault damage. The MCB can be supplied via copper cable, prong busbar (top or bottom side), or fork busbar (bottom side), offering flexible installation options. With a built-in depth of 44mm and mounting on standard DIN rail, it integrates seamlessly into existing electrical panels. The TX3 series is equipped with a special DIN rail clamp that allows independent removal even when the fork busbar is still in place. It features a convenient label holder for clear circuit identification and intuitive on/off indication printed on the handle with red and green backgrounds. Compatible with Legrand DX3 auxiliaries and accessories, this circuit breaker represents the pinnacle of electrical safety and reliability, complying with all substance-restriction requirements and designed with environmental consciousness.

Key Features

6000A breaking capacity with C-curve characteristic for optimal overload and short-circuit protection
2-pole configuration with 13A rated current for residential and small commercial applications
IP20 fingerproof protection against solid bodies larger than 12.5mm
Energy limitation class 3 minimizes fault damage and improves installation safety
DIN rail mounting with special clamp allowing independent removal
Compatible with Legrand DX3 auxiliaries and accessories
Flexible supply options via copper cable, prong busbar, or fork busbar
Clear circuit identification with integrated label holder
Intuitive on/off indication with color-coded handle (red/green)
Environmentally conscious design with halogen-free materials

Technical Specifications

Specification	Value
Breaking Capacity	6000A according to IEC 60898-1
Number of Poles	2 poles (dual pole)
Rated Current	13 Amperes
Release Characteristic	C curve (5-10 In tripping threshold)
Rated Voltage	400V AC
Rated Insulation Voltage	500V
Impulse Withstand Voltage	4 kV
Voltage Type	AC (Alternating Current)
Short-Circuit Breaking Capacity at 230V	10 kA
Short-Circuit Breaking Capacity at 400V	6 kA
Frequency Range	50-60 Hz
Current Limiting Class	Class 3
Degree of Protection	IP20
Impact Strength Rating	IK02
Built-in Depth	44 mm
Width	35.4 mm
Height	88 mm
Total Depth	77.8 mm
Modular Width	2 modular spacings
Color	Grey (RAL 7035)
Mounting Method	DIN rail
Connection Type	Screwed terminal, Busbar and cable
Supply Direction	Top or bottom
Storage Temperature Range	-40°C to +70°C
Nominal Voltage Range	240-415V
Pollution Degree	2
Halogen Free	Yes
Flush-Mounted Installation	Yes
Concurrently Switching Neutral	No
Additional Equipment Possible	Yes
Reference Number	403527
EAN Code	3414970389091
Product Series	TX³
Manufacturer	Legrand

Order Legrand MCB TX3 6000A 2 Pole 13A Curve C Circuit Breaker | 403527 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
