Single-pole thermal magnetic circuit-breaker with 6kA breaking capacity, C-curve characteristic, and IP20 finger-safe protection for residential and small commercial installations

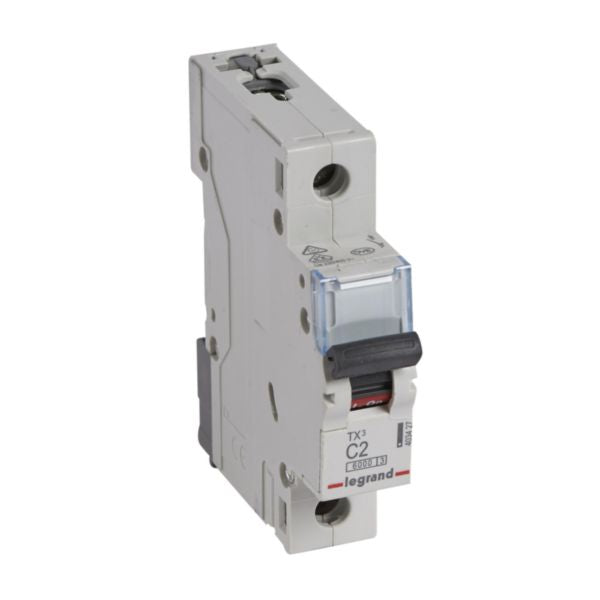

The Legrand MCB TX3 6000A is a thermal magnetic circuit-breaker designed to protect wiring installations against overloads and short-circuits with exceptional 6kA breaking capacity. This single-pole device features a C-curve characteristic, ideal for general-purpose applications in residential and small commercial installations. The circuit breaker combines reliable protection with user-friendly operation, offering IP20 finger-safe protection that prevents accidental contact with live components. It can be used not only for protection but also for control and isolation of electrical installations, making it a versatile solution for modern electrical systems.
This MCB is equipped with a special DIN rail clamp on the bottom side, allowing independent removal even when the fork busbar supplying the row remains in place. The device features a label holder for clear circuit identification and On/Off indication printed on the handle with red and green backgrounds for easy status identification. With a built-in depth of 44mm and modular width of 1 spacing unit, it fits seamlessly into standard DIN rail installations. The TX3 can be supplied via copper cable, prong busbar, or fork busbar, offering flexible installation options for various electrical configurations.
Designed with environmental consciousness, this product complies with substance-restriction requirements and features halogen-free materials. It operates at a rated voltage of 230V with a rated insulation voltage of 500V and impulse withstand voltage of 4kV. The device maintains consistent performance across 50-60Hz frequencies and includes maximum energy limitation (class 3). Compatible with Legrand DX3 auxiliaries and accessories, and can be connected to aluminum cables using appropriate terminal accessories, making it a comprehensive solution for modern electrical protection needs.
Key Features
- 6kA breaking capacity according to IEC 60898-1 standard for household installations
- C-curve tripping characteristic between 5In and 10In for short-circuit protection
- IP20 finger-safe protection against solid bodies larger than 12.5mm
- Maximum energy limitation class 3 according to IEC 60898-1 standard
- Compatible with Legrand DX3 auxiliaries and accessories for enhanced functionality
- Special DIN rail clamp allowing independent removal during installation
- Label holder for clear circuit identification and status indication
- Flexible supply options: copper cable, prong busbar, or fork busbar
- Halogen-free environmentally conscious design
- Can be connected to aluminum cables with appropriate terminal accessories
Technical Specifications
| Specification |
Value |
| Product Name | MCB TX3 6000A 1 Pole 2A Curve C |
| Reference Number | 403427 |
| EAN Code | 3414970388070 |
| Manufacturer | Legrand |
| Product Type | Thermal Magnetic Circuit Breaker |
| Number of Poles | 1 pole |
| Rated Current | 2A |
| Release Characteristic | C curve |
| Breaking Capacity | 6 kA (6000A) |
| Rated Voltage | 230V AC |
| Rated Insulation Voltage | 500V |
| Impulse Withstand Voltage | 4 kV |
| Frequency Range | 50-60 Hz |
| Current Limiting Class | 3 |
| Degree of Protection | IP20 |
| Impact Strength Rating | IK02 |
| Built-in Depth | 44 mm |
| Width | 17.8 mm |
| Height | 88 mm |
| Total Depth | 77.8 mm |
| Modular Width | 1 modular spacing unit |
| Mounting Method | DIN rail |
| Connection Type | Screwed terminal, Busbar and cable |
| Supply Direction | Top or bottom |
| Pollution Degree | 2 |
| Storage Temperature Range | -40°C to 70°C |
| Color | Grey |
| RAL Number | 7035 |
| Material Composition | Halogen-free |
| Flush-mounted Installation | Yes |
| Neutral Conductor Switching | No |
| Explosion-proof | No |
| Additional Equipment Possible | Yes |
| Label Space | Yes |
| Warranty | Standard manufacturer warranty as per Legrand policy |
