Description

Shop Legrand MCB TX3 10000A 3 Pole 25A Curve B Circuit Breaker | 404128 In Iraq Best Prices

Advanced 3-pole thermal magnetic circuit breaker with 10kA breaking capacity, B-curve tripping, and IP20 protection for reliable electrical installation safeguarding

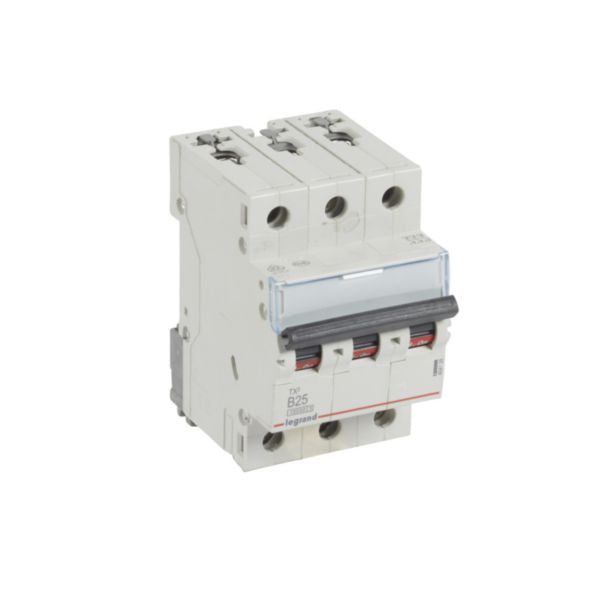

The Legrand MCB TX3 10000A is a thermal magnetic circuit-breaker designed to protect wiring installations against overloads and short-circuits. With a breaking capacity of 10kA at 400V, this 3-pole device features a B-curve tripping characteristic with a threshold between 75A and 125A (3-5 times the rated current). The MCB can be supplied via copper cable, prong busbar (top or bottom side), or fork busbar (bottom side), making it versatile for various installation configurations. This circuit breaker is equipped with advanced safety features including IP20 protection against solid bodies larger than 12.5mm (fingerproof), maximum energy limitation class 3 according to IEC 60898-1 standard, and compatibility with Legrand DX3 auxiliaries and accessories. The device can also be connected to aluminium cable using Legrand DX3 terminal accessory. With a rated current of 25A and rated voltage of 400V, it provides reliable protection for residential and small commercial applications. The MCB TX3 features a special DIN rail clamp on the bottom side allowing independent removal even when the fork busbar is still in place. It includes a convenient label holder for circuit identification and clear ON/OFF indication printed on the handle with red and green backgrounds. The device complies with substance-restriction requirements and has been designed following environmentally conscious processes, making it an eco-friendly choice for modern electrical installations.

Key Features

10kA breaking capacity at 400V according to IEC 60898-1 standard for household and small commercial installations
B-curve tripping characteristic with threshold between 75A and 125A (3-5 times rated current) for optimal protection
IP20 protection against solid bodies larger than 12.5mm with maximum energy limitation class 3
Compatible with Legrand DX3 auxiliaries and accessories for enhanced functionality and customization
Versatile supply options including copper cable, prong busbar, and fork busbar connections
Independent removal capability with special DIN rail clamp allowing removal without disturbing busbar
Clear circuit identification with integrated label holder and ON/OFF indication on handle
Environmentally conscious design complying with substance-restriction requirements and RoHS directives

Technical Specifications

Specification	Value
Product Type	Thermal Magnetic Circuit Breaker (MCB)
Brand	Legrand
Model	TX3
Reference Number	404128
EAN Code	3414970392732
Number of Poles	3 poles
Rated Current	25A
Rated Voltage	400V AC
Rated Insulation Voltage (Ui)	500V
Rated Impulse Withstand Voltage (Uimp)	4kV
Breaking Capacity (Icn) at 230V	16kA according to EN 60898
Breaking Capacity (Icn) at 400V	10kA according to EN 60898
Tripping Characteristic	B-curve (75A-125A or 3-5 In)
Current Limiting Class	Class 3
Frequency Range	50-60 Hz
Degree of Protection (IP)	IP20
Impact Strength (IK)	IK02
Width (Modular Units)	3 modules
Width	53.1mm
Height	88mm
Depth	77.8mm (44mm built-in depth)
Color	Grey (RAL 7035)
Mounting Method	DIN Rail
Connection Type	Screwed terminal, Busbar and cable
Supply Direction	Top or bottom
Pollution Degree	2
Storage Temperature Range	-40°C to +70°C
Nominal Voltage Range	240-415V
Halogen Free	Yes
Flush-mounted Installation	Yes
Neutral Conductor Switching	No
Additional Equipment Possible	Yes
Label Space	Yes
Explosion-proof	No

Order Legrand MCB TX3 10000A 3 Pole 25A Curve B Circuit Breaker | 404128 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
