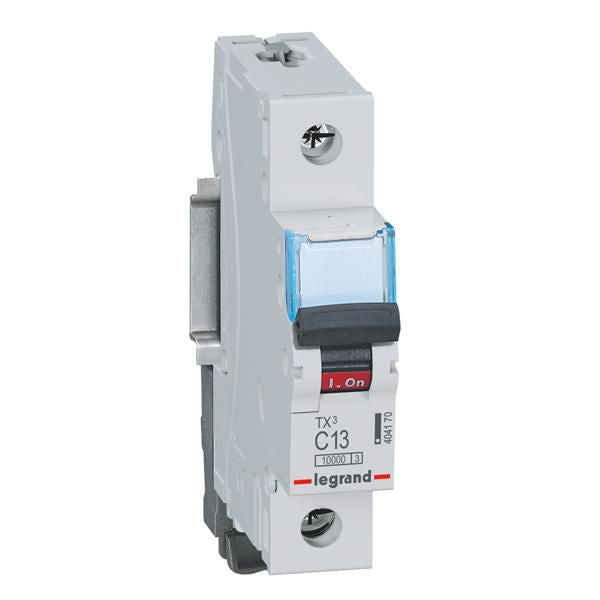

Shop Legrand MCB TX3 10000A 1 Pole 13A Curve C Circuit Breaker | 404170 In Iraq Best Prices

Single-pole thermal magnetic circuit-breaker with 10kA breaking capacity, C-curve protection, and IP20 safety rating for reliable household and commercial electrical protection

The Legrand MCB TX3 is a thermal magnetic circuit-breaker designed to protect wiring installations against overloads and short-circuits with exceptional reliability. This single-pole device features a 10kA breaking capacity at 230V, making it ideal for household and small commercial applications. The C-curve tripping characteristic ensures reliable short-circuit protection between 65A and 130A (5 In to 10 In), while providing the ability to isolate the installation when needed. Built with advanced energy limitation technology (Class 3), this circuit breaker delivers superior performance and safety. Features include fingerproof protection (IP20) against solid bodies larger than 12.5mm, compatibility with Legrand DX3 auxiliaries and accessories, and the ability to connect to aluminum cables using optional terminal accessories. The device is equipped with a special DIN rail clamp on the bottom side, allowing independent removal even when the fork busbar is still in place. A convenient label holder provides clear circuit identification, while ON/OFF indication printed on the handle with red and green backgrounds ensures easy status identification. This product complies with all substance-restriction requirements and has been designed with environmental consciousness. It operates at a rated voltage of 230V with rated insulation voltage of 500V and rated impulse withstand voltage of 4kV. The MCB TX3 is suitable for flush-mounted installation on DIN rails and represents the highest standards of electrical safety and reliability for modern electrical installations.

Key Features

10kA breaking capacity at 230V with IEC 60898-1 compliance for household installations
C-curve tripping characteristic (65A-130A) ensuring reliable short-circuit protection
IP20 fingerproof protection against solid bodies larger than 12.5mm
Energy limitation Class 3 for maximum let-through energy reduction
Compatible with Legrand DX3 auxiliaries, accessories, and aluminum cable terminals
Special DIN rail clamp allowing independent removal with busbar in place
Clear label holder and ON/OFF status indication for easy circuit identification
Environmentally conscious design with substance-restriction compliance
Rated impulse withstand voltage of 4kV for superior surge protection
Flush-mounted installation capability on standard DIN rails

Technical Specifications

Specification	Value
Product Type	Thermal Magnetic Circuit-Breaker (MCB)
Brand	Legrand
Model Series	TX3
Reference Number	404170
EAN Code	3414970393531
Number of Poles	1 pole (single pole)
Rated Current	13 Amperes
Rated Voltage	230V AC
Rated Insulation Voltage	500V
Rated Impulse Withstand Voltage	4 kV
Breaking Capacity	10,000A (10kA) according to IEC 60898-1
Trip Characteristic	C-curve (65A-130A or 5In-10In)
Current Limiting Class	Class 3
Frequency Range	50-60 Hz
Degree of Protection	IP20 (fingerproof)
Degree of Impact Strength	IK02
Width	17.8 mm (1 modular spacing)
Height	88 mm
Depth	77.8 mm (built-in depth 44mm)
Color	Grey (RAL 7035)
Installation Type	DIN rail mounting
Connection Type	Screwed terminal, Busbar, and cable
Supply Direction	Top or bottom
Neutral Conductor Switching	No (1 pole only)
Pollution Degree	2
Storage Temperature Range	-40°C to +70°C
Nominal Voltage Range	240-415V
Halogen Free	Yes
Label Space	Yes (with label holder)
Auxiliary Equipment Compatible	Yes (Legrand DX3 auxiliaries and accessories)

Order Legrand MCB TX3 10000A 1 Pole 13A Curve C Circuit Breaker | 404170 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
