Shop Legrand MCB RX3 4500A 2 Pole 6A Curve C Circuit Breaker | 419694 In Iraq Best Prices
Legrand RX3 2-pole 6A circuit breaker with 4500A breaking capacity, C-curve protection, IP20 rating, and advanced current limiting technology for residential and commercial installations.

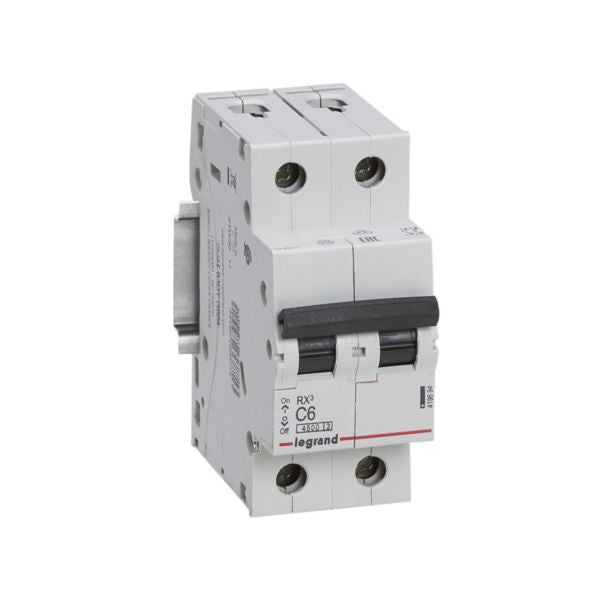

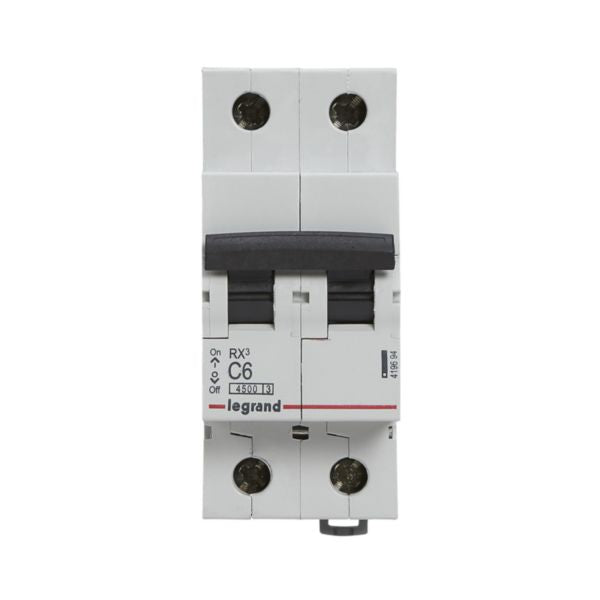

The Legrand MCB RX3 4500A is a premium 2-pole circuit breaker designed for residential and small commercial electrical installations. With a rated current of 6A and a breaking capacity of 4500A according to IEC 60898-1 standard, this device provides superior protection for household installations. The C-curve tripping characteristic offers a tripping threshold between 30A and 60A for short-circuit protection, making it ideal for circuits with moderate inrush currents.
This modular circuit breaker features advanced current limiting technology (Class 3) that minimizes let-through energy during fault conditions, ensuring maximum safety for connected equipment. The device can be supplied either by copper cable or prong busbar from the top or bottom, providing flexible installation options. With IP20 protection rating against solid bodies larger than 12.5mm, it meets fingerproof safety standards and is protected against accidental contact.
The RX3 series breaker is manufactured with environmental consciousness, complying with substance-restriction requirements and halogen-free materials. It operates at rated voltage of 400V with impulse withstand voltage of 4kV, frequency range of 50-60Hz, and is suitable for flush-mounted DIN rail installation. The device includes comprehensive technical documentation and certifications including VDE, CEBEC, and OC/CB compliance, ensuring reliability and safety in demanding electrical environments.
Key Features
- Breaking capacity of 4500A according to IEC 60898-1 standard for household installations
- C-curve tripping characteristic with threshold between 30A and 60A for short-circuit protection
- Advanced current limiting technology (Class 3) minimizing let-through energy during faults
- IP20 fingerproof protection against solid bodies larger than 12.5mm
- Flexible supply options via copper cable or prong busbar from top or bottom
- Rated voltage of 400V with impulse withstand voltage of 4kV
- Halogen-free construction with environmentally conscious design
- Modular 2-pole configuration for DIN rail flush-mounted installation
- Operates at 50-60Hz frequency range with pollution degree 2 rating
- Comprehensive certifications including VDE, CEBEC, and OC/CB compliance
Technical Specifications
| Specification |
Value |
| Number of Poles | 2 poles (2 protected poles) |
| Rated Current | 6A |
| Rated Voltage | 400V AC |
| Rated Insulation Voltage | 400V |
| Impulse Withstand Voltage | 4 kV |
| Breaking Capacity at 230V | 6 kA (Icn according to EN 60898) |
| Breaking Capacity at 400V | 4.5 kA (Icn according to EN 60898) |
| Release Characteristic | C-curve (30A-60A threshold) |
| Current Limiting Class | Class 3 |
| Frequency Range | 50-60 Hz |
| Degree of Protection | IP20 (fingerproof) |
| Impact Strength | IK04 |
| Built-in Depth | 44 mm |
| Width | 34.6 mm (2 modular spacings) |
| Height | 88.8 mm |
| Total Depth | 77.3 mm |
| Color | Grey (RAL 7035) |
| Storage Temperature | -25°C to +60°C |
| Operating Voltage Range | 360-440V |
| Connection Type | Screwed terminal, Busbar and cable |
| Supply Direction | Top or bottom |
| Installation Type | Flush-mounted DIN rail |
| Halogen Free | Yes |
| Pollution Degree | 2 |
| Neutral Conductor Switching | No |
| Additional Equipment | Not possible |
| Reference Number | 419694 |
| EAN Code | 3414970368713 |
