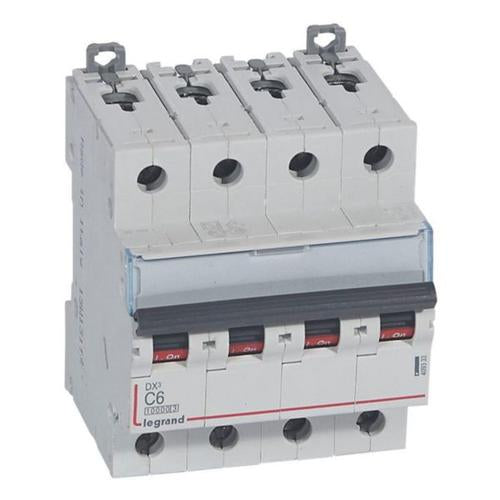

Shop Legrand MCB DX3 10000A 4 Pole 6A Curve C Circuit Breaker | 409333 In Iraq Best Prices
Professional thermal magnetic circuit breaker with 10kA breaking capacity, C curve tripping, 4-pole 6A protection, IP20 design, and DIN rail mounting for reliable electrical installation protection.
The Legrand MCB DX3 10000A is a professional-grade thermal magnetic circuit breaker designed to protect wiring installations against overloads and short-circuits. With a breaking capacity of 10kA at 400V and C curve tripping characteristics, this 4-pole device provides reliable protection for residential and small commercial applications. The circuit breaker features IP20 finger-safe design, DIN rail mounting capability, and can be supplied through copper cable, prong busbar, fork busbar, or Legrand HX3 plug busbar connections.
This 6A rated current device incorporates advanced energy limitation technology (Class 3) to minimize let-through energy during fault conditions. The breaker is equipped with two DIN rail clamps allowing independent removal without affecting the main busbar supply. It features a convenient label holder for circuit identification and clear ON/OFF indication printed on the handle with red and green backgrounds for easy status identification. The device complies with IEC 60898-1 standard for household installations and can be equipped with Legrand DX3 auxiliaries, RCD add-on modules, and various accessories.
With a built-in depth of 44mm and dimensions of 70.8mm width, 94.8mm height, and 77.8mm depth, this circuit breaker occupies 4 modular spacings on DIN rail. It operates reliably in ambient temperatures from -25°C to 70°C and supports both multi-wired conductors (1.5-25mm²) and solid-core conductors (1.5-35mm²). The product is halogen-free, environmentally conscious, and backed by comprehensive certifications including CEBEC, VDE, AENOR, and LOVAG standards.
Key Features
- Breaking capacity of 10kA at 400V with C curve tripping between 5In and 10In for short-circuit protection
- IP20 finger-safe design protected against solid bodies larger than 12.5mm per IEC/EN 60529 standard
- Energy limitation Class 3 per IEC 60898-1 for maximum let-through energy limitation
- DIN rail mounting with dual clamps for independent removal without affecting main busbar supply
- Compatible with Legrand DX3 auxiliaries, RCD add-on modules, and comprehensive accessories
- Clear ON/OFF indication on handle with red and green backgrounds for easy status identification
- Label holder for convenient circuit identification and clear visible circuit tracking
- Supports multiple connection types: copper cable, prong busbar, fork busbar, or HX3 plug busbar
- Concurrently switching neutral conductor for enhanced safety and protection
- Halogen-free and environmentally conscious design with minimal carbon footprint
Technical Specifications
| Specification |
Value |
| Product Type | Thermal Magnetic Circuit Breaker (MCB) |
| Number of Poles | 4 poles (4P) |
| Rated Current | 6 Amperes |
| Rated Voltage | 400V AC |
| Rated Insulation Voltage | 500V |
| Breaking Capacity (Icn) at 400V | 10,000 Amperes (10kA) |
| Breaking Capacity (Icu) at 400V | 16,000 Amperes (16kA) |
| Release Characteristic | C Curve (5In to 10In) |
| Current Limiting Class | Class 3 |
| Impulse Withstand Voltage | 4 kV |
| Frequency Range | 50-60 Hz |
| Degree of Protection | IP20 Finger-safe |
| Degree of Impact Strength | IK02 |
| Modular Width | 4 modular spacings |
| Built-in Depth | 44 mm |
| Physical Dimensions (W × H × D) | 70.8 × 94.8 × 77.8 mm |
| Connection Type | Screwed Terminal |
| Conductor Cross Section (Multi-wired) | 1.5-25 mm² |
| Conductor Cross Section (Solid-core) | 1.5-35 mm² |
| Operating Temperature Range | -25°C to +70°C |
| Storage Temperature Range | -40°C to +70°C |
| Pollution Degree | 2 |
| Mounting Method | DIN Rail |
| Neutral Conductor Switching | Concurrently switching |
| Flush-mounted Installation | Yes |
| Color | Grey (RAL 7035) |
| Halogen Free | Yes |
| Carbon Footprint (Manufacturing) | 3.572 kg CO₂ eq. |
| Reference Number | 409333 |
| EAN Code | 3245064093330 |
