Shop Legrand MCB DX3 10000A 3 Pole 2A Curve B Circuit Breaker | 408985 In Iraq Best Prices
Professional-grade 3-pole thermal magnetic circuit breaker with 2A rating, B-curve characteristic, and 10kA breaking capacity. Features advanced energy limitation, IP20 protection, and compatibility with Legrand DX3 accessories for comprehensive electrical protection.

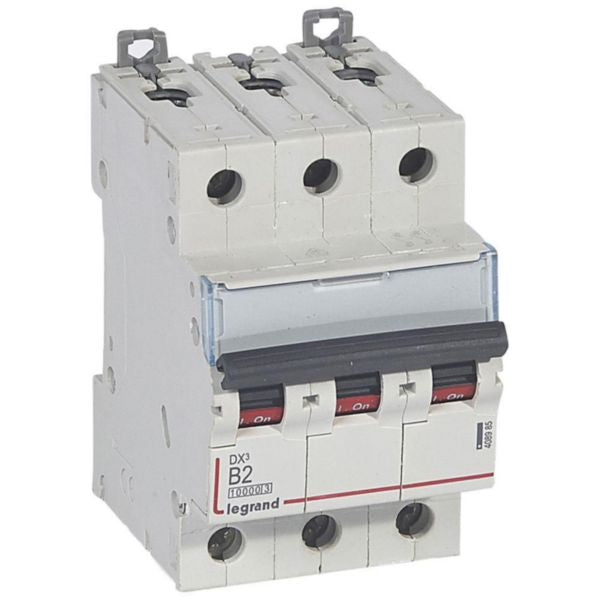

The Legrand MCB DX3 10000A is a thermal magnetic circuit-breaker specifically designed to protect wiring installations against overloads and short-circuits. This 3-pole, 2A rated device features a B-curve characteristic and operates at 400V~ with an impressive 10kA breaking capacity at 400V. The circuit breaker provides energy limitation class 3 according to IEC 60898-1 standards, ensuring maximum protection for residential and small commercial electrical installations. With its advanced design, this MCB combines reliability with ease of installation and maintenance.
Featuring dual DIN rail clamps positioned at both top and bottom, this circuit breaker allows independent removal without disconnecting the prong busbar supplying the row. The device is IP20 rated, offering protection against solid bodies larger than 12.5mm (fingerproof), and can be equipped with Legrand DX3 auxiliaries, RCD add-on modules, and various accessories. The built-in label holder enables clear circuit identification with on/off indication printed on red and green backgrounds respectively.
This product complies with all substance-restriction requirements and has been designed with environmental consciousness in mind. It supports multiple supply methods including copper cable, prong busbar (top or bottom side), fork busbar (bottom side), or Legrand HX3 plug busbar (top side). The thermal magnetic protection mechanism ensures reliable operation across ambient temperatures from -25°C to 70°C, making it suitable for diverse installation environments.
Key Features
- 10kA breaking capacity at 400V with energy limitation class 3 for maximum protection
- Thermal magnetic protection mechanism with B-curve characteristic (6A-10A tripping threshold)
- 3-pole configuration with 2A rated current suitable for residential and small commercial applications
- Dual DIN rail clamps for independent removal without disconnecting supply busbar
- IP20 fingerproof protection against solid bodies larger than 12.5mm per IEC/EN 60529
- Compatible with Legrand DX3 auxiliaries, RCD add-on modules and comprehensive accessories
- Clear circuit identification with labeled holder and color-coded on/off indication (red/green)
- Multiple supply connection options: copper cable, prong busbar, fork busbar, or HX3 plug busbar
- Halogen-free, environmentally conscious design complying with substance restrictions
- Operates reliably across ambient temperatures from -25°C to 70°C
Technical Specifications
| Specification |
Value |
| Product Type | Thermal Magnetic Circuit Breaker (MCB) |
| Brand | Legrand |
| Model Series | DX3 |
| Reference Number | 408985 |
| EAN Code | 3245064089852 |
| Number of Poles | 3 (Three Phase) |
| Rated Current | 2 Amperes |
| Rated Voltage | 400V AC |
| Frequency | 50-60 Hz |
| Release Characteristic | B Curve (6A-10A tripping threshold) |
| Breaking Capacity at 400V | 10,000 Amperes (10kA) |
| Breaking Capacity at 230V | 16,000 Amperes (16kA) |
| Ultimate Breaking Capacity at 400V | 16,000 Amperes (16kA) |
| Ultimate Breaking Capacity at 230V | 32,000 Amperes (32kA) |
| Energy Limitation Class | Class 3 |
| Rated Insulation Voltage | 500V |
| Rated Impulse Withstand Voltage | 4kV |
| Degree of Protection | IP20 (Fingerproof) |
| Impact Strength Rating | IK02 |
| Width (Modular Units) | 3 modules |
| Width | 53.1 mm |
| Height | 94.8 mm |
| Built-in Depth | 44 mm |
| Overall Depth | 77.8 mm |
| Color | Grey |
| RAL Number | 7035 |
| Connection Type | Screwed Terminal |
| Connectable Conductor (Solid-core) | 1.5-35 mm² |
| Connectable Conductor (Multi-wired) | 1.5-25 mm² |
| Ambient Temperature (Operating) | -25°C to +70°C |
| Storage Temperature | -40°C to +70°C |
| Pollution Degree | 2 |
| Mounting Method | DIN Rail |
| Electric Supply Direction | Top or Bottom |
| Flush-mounted Installation | Yes |
| Concurrently Switching Neutral | No |
| Explosion-proof | No |
| Halogen Free | Yes |
| Additional Equipment Possible | Yes |
| Label Space Available | Yes |
| Carbon Footprint (Manufacturing) | 3.151 kg CO2 eq. |
| Standards Compliance | IEC 60898-1, EN 60898, IEC 60947-2, IEC/EN 60529, RoHS, REACH |
| Supply Methods | Copper cable, prong busbar (top/bottom), fork busbar (bottom), HX3 plug busbar (top) |
