Description

Shop Legrand MCB DX3 10000A 2 Pole 25A Curve C Circuit Breaker | 409204 In Iraq Best Prices

Professional thermal magnetic circuit breaker with 25A rating, C curve protection, and 16kA breaking capacity for residential and commercial installations. Features DX³ compatibility, IP20 protection, and DIN rail mounting.

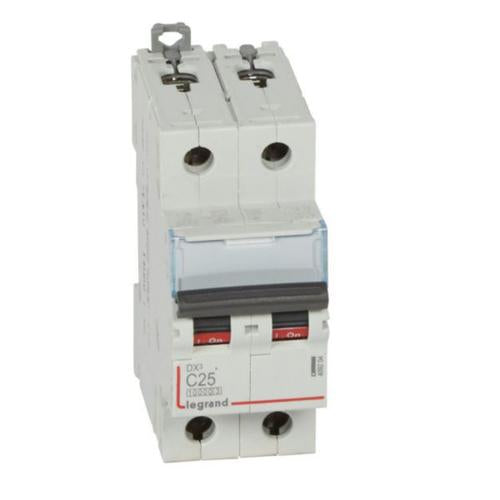

The Legrand MCB DX3 10000A is a thermal magnetic circuit breaker designed to protect wiring installations against overloads and short circuits. This 2-pole device features a 25A rated current with C curve tripping characteristics and offers exceptional 16kA breaking capacity at 230V and 10kA at 400V. Built with advanced current limiting technology (class 3), it provides maximum protection for residential and small commercial electrical installations. The breaker accepts DX³ auxiliaries and add-on RCD modules, making it highly versatile for various installation requirements. With IP20 protection rating and fingerproof design, it ensures safety against solid bodies larger than 12.5mm. The device complies with IEC 60898-1 standard and features convenient DIN rail mounting with independent removal capability. Its compact design with 44mm built-in depth and grey color (RAL 7035) makes it suitable for modern electrical panels. The MCB includes a label holder for clear circuit identification and ON/OFF indication printed on the handle for easy status recognition.

Key Features

16kA breaking capacity at 230V with 10kA at 400V for superior short-circuit protection
C curve tripping characteristic (5-10 In) ideal for general purpose circuits and resistive loads
Current limiting class 3 technology minimizes let-through energy for maximum equipment protection
Compatible with DX³ auxiliaries and add-on RCD modules for flexible system configuration
IP20 fingerproof design protects against solid bodies larger than 12.5mm ensuring user safety
DIN rail mounted with independent removal capability for easy installation and maintenance
Clear circuit identification with integrated label holder and ON/OFF status indication
Accepts copper cables and various busbar configurations (prong, fork, HX3 plug busbar)
Halogen-free construction supports environmental sustainability requirements
Compliant with IEC 60898-1 standard for household and small commercial installations

Technical Specifications

Specification	Value
Product Type	Thermal Magnetic Circuit Breaker (MCB)
Brand	Legrand
Model Series	DX³
Reference Number	409204
EAN Code	3245064092043
Number of Poles	2 poles
Rated Current	25 A
Release Characteristic	C curve (5-10 In)
Rated Voltage	400 V AC
Rated Insulation Voltage (Ui)	500 V
Rated Impulse Withstand Voltage (Uimp)	4 kV
Breaking Capacity at 230V (Icn)	16 kA
Breaking Capacity at 400V (Icn)	10 kA
Ultimate Breaking Capacity at 230V (Icu)	32 kA
Ultimate Breaking Capacity at 400V (Icu)	16 kA
Current Limiting Class	Class 3
Frequency	50-60 Hz
Degree of Protection (IP)	IP20
Degree of Impact Strength (IK)	IK02
Width in Modular Spacings	2 modules
Width	35.4 mm
Height	94.8 mm
Depth	77.8 mm
Built-in Depth	44 mm
Connection Type	Screwed terminal
Connectable Conductor Cross Section (Multi-wired)	1.5-25 mm²
Connectable Conductor Cross Section (Solid-core)	1.5-35 mm²
Supply Direction	By the top or bottom
Mounting Method	DIN rail
Color	Grey
RAL Number	RAL 7035
Pollution Degree	2
Operating Temperature Range	-25 to +70 °C
Storage Temperature Range	-40 to +70 °C
Halogen Free	Yes
Flush-mounted Installation	Yes
Concurrently Switching Neutral Conductor	No
Additional Equipment Possible	Yes (DX³ auxiliaries and RCD add-on modules)
Explosion-proof	No
Label Space	Yes
Carbon Footprint (Manufacturing)	1.854 kg CO₂ eq.
Applicable Standards	IEC 60898-1, EN 60898-1, IEC 60947-2

Order Legrand MCB DX3 10000A 2 Pole 25A Curve C Circuit Breaker | 409204 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
