Shop Legrand MCB DX3 10000A 1 Pole 6A Curve D Circuit Breaker | 409428 In Iraq Best Prices

Thermal magnetic circuit-breaker with 6A D-curve and 10kA breaking capacity for residential protection

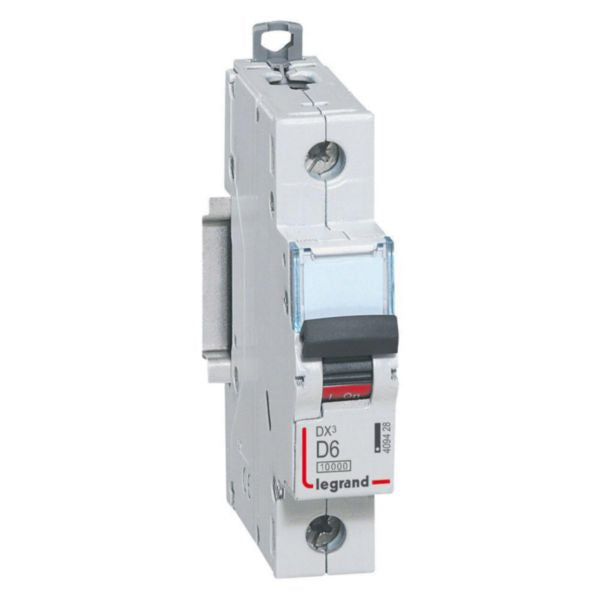

The Legrand MCB DX3 10000A is a thermal magnetic circuit-breaker designed to protect wiring installations against overloads and short-circuits. With a rated current of 6A and D-curve release characteristic, this 1-pole breaker offers a breaking capacity of 10kA at 230V. The device features IP20 fingerproof protection, making it suitable for residential and small commercial applications. It can be supplied by copper cable, prong busbar, fork busbar, or Legrand HX3 plug busbar, providing flexible installation options. This circuit-breaker is equipped with DIN rail clamps that allow independent removal even when the prong busbar is still in place. The MCB includes a label holder for clear circuit identification and on/off indication printed on the handle with red and green backgrounds for easy status recognition. It can be equipped with Legrand DX3 auxiliaries, RCD add-on modules, and various accessories to meet specific installation requirements. The product complies with IEC 60898-1 standard for household installations and features a tripping threshold for short-circuits between 60A and 84A (D curve between 10 In and 14 In). Built with halogen-free materials and designed through an environmentally conscious process, this breaker is ideal for modern electrical installations requiring reliable protection and control capabilities.

Key Features

Breaking capacity of 10kA at 230V according to IEC 60898-1 standard for household installations
D-curve release characteristic with tripping threshold between 60A and 84A for reliable short-circuit protection
IP20 fingerproof protection against solid bodies larger than 12.5mm for enhanced safety
Compatible with copper cable, prong busbar, fork busbar, and Legrand HX3 plug busbar for flexible installation
Equipped with DIN rail clamps allowing independent removal without disturbing the busbar supply
Label holder with on/off indication in red and green for clear circuit identification and status visibility
Can be equipped with Legrand DX3 auxiliaries, RCD add-on modules and various accessories
Halogen-free design with environmentally conscious manufacturing process
Suitable for control and isolation of electrical installations in residential and small commercial applications
Rated voltage of 230V with rated insulation voltage Ui of 500V and impulse withstand voltage of 4kV

Technical Specifications

Specification	Value
Product Reference	409428
EAN Code	3414970433978
Brand	Legrand
Series	DX³
Type	Thermal Magnetic Circuit-Breaker (MCB)
Number of Poles	1 pole
Number of Protected Poles	1
Rated Current	6 A
Release Characteristic	D-curve
Rated Voltage	230 V AC
Rated Insulation Voltage	500 V
Rated Impulse Withstand Voltage	4 kV
Breaking Capacity (Icn) at 230V	10 kA according to IEC 60898-1
Breaking Capacity (Icu) at 230V	16 kA according to IEC 60947-2
Short-Circuit Tripping Threshold	60A to 84A (D curve between 10 In and 14 In)
Frequency	50-60 Hz
Degree of Protection	IP20 (fingerproof)
Impact Strength Rating	IK02
Width	17.8 mm (1 modular spacing)
Height	94.8 mm
Depth	77.8 mm (built-in depth: 44 mm)
Weight	Not specified
Color	Grey (RAL 7035)
Connection Type	Screwed terminal
Connectable Conductor Cross Section (solid-core)	1.5-35 mm²
Connectable Conductor Cross Section (multi-wired)	1.5-25 mm²
Supply Direction	By the top or bottom
Mounting Method	DIN rail
Flush-Mounted Installation	Yes
Concurrently Switching Neutral Conductor	No
Pollution Degree	2
Additional Equipment Possible	Yes (DX3 auxiliaries, RCD add-on modules, accessories)
Operating Temperature Range	-25 to +70 °C
Storage Temperature Range	-40 to +70 °C
Halogen Free	Yes
Explosion-Proof	No
Label Space	Yes
Carbon Footprint (Manufacturing Phase)	0.817 kg CO₂ eq.
Standard Compliance	IEC 60898-1, IEC 60947-2, IEC/EN 60529

Order Legrand MCB DX3 10000A 1 Pole 6A Curve D Circuit Breaker | 409428 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
