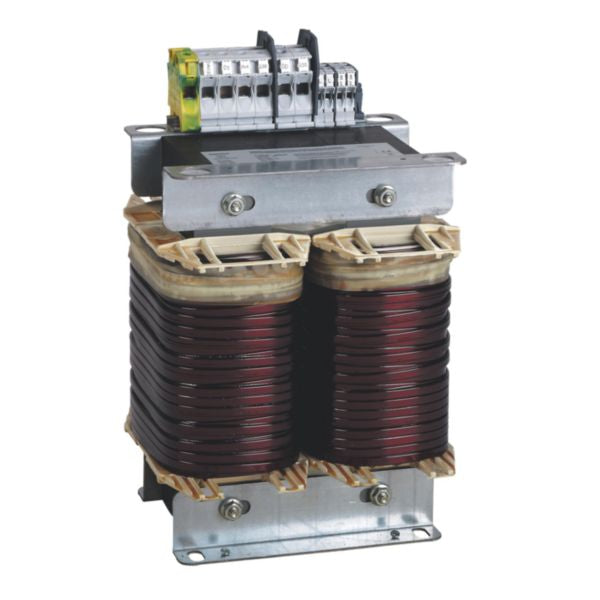

Shop Legrand Isolating Transformer Hospital 8kVA Single Phase 230V | 42595 In Iraq Best Prices
Legrand 8kVA hospital-grade isolating transformer with dual temperature monitoring, IEC 61558-2-15 compliant, 230V single-phase input/output with electrostatic shield protection
This Legrand isolating transformer is specifically designed for hospital applications and complies with the stringent requirements of standard IEC EN 61558-2-15. The transformer provides safe electrical isolation with a rated output of 8 kVA, making it ideal for critical medical environments where patient safety is paramount. It features dual temperature monitoring systems with both bi-metal strips and PT 100 thermocouples, ensuring compatibility with any medical control system. The secondary/earth leakage current is limited to just 0.5 mA off-load, and the inrush current is restricted to 12 times the peak value of primary current, providing exceptional protection and reliability.
The transformer is equipped with an electrostatic shield linked to dedicated terminals, offering superior electromagnetic compatibility and noise reduction. With a primary voltage of 230V and secondary voltage of 230V with centre tap, it delivers consistent power distribution in hospital settings. The unit features flexible cable terminals of 35 mm² for both primary and secondary connections, facilitating easy installation and maintenance. Its IP 00 rating indicates it is suitable for indoor installations in controlled environments. The transformer utilizes H-class insulation material according to IEC 85 standards, ensuring long-term durability and performance under demanding hospital conditions.
This medical-grade isolating transformer is built to the highest safety standards and is not designed as a short-circuit-proof unit, but rather as a reliable safety transformer for critical applications. With dimensions of 290mm width, 420mm height, and 220mm depth, it offers a compact form factor suitable for installation in hospital electrical rooms and medical facilities. The relative short-circuit voltage of 3.8% ensures stable operation and minimal voltage fluctuations during load changes.
Key Features
- Hospital-grade isolating transformer compliant with IEC EN 61558-2-15 standard for medical applications
- Dual temperature monitoring system with bi-metal strips and PT 100 thermocouple for medical control system compatibility
- Electrostatic shield linked to dedicated terminals for superior electromagnetic compatibility and noise reduction
- Secondary/earth leakage current limited to 0.5 mA off-load and inrush current restricted to 12 times peak primary current
- H-class insulation material (IEC 85) ensuring long-term durability in demanding hospital environments
- 230V single-phase primary and secondary with centre tap for stable power distribution
- Flexible 35 mm² cable terminals for easy installation and maintenance
- IP 00 rating suitable for indoor installation in controlled medical environments
- Compact dimensions (290×420×220 mm) for efficient space utilization in hospital electrical rooms
- Relative short-circuit voltage of 3.8% for stable operation with minimal voltage fluctuations
Technical Specifications
| Specification |
Value |
| Product Type | Single-Phase Isolating Transformer |
| Rated Apparent Power | 8000 VA (8 kVA) |
| Primary Voltage | 230V AC |
| Secondary Voltage | 230V AC with centre tap |
| Insulation Class | H (IEC 85) |
| Degree of Protection | IP 00 |
| Width | 290 mm |
| Height | 420 mm |
| Depth | 220 mm |
| Primary Cable Terminal | 35 mm² flexible cable |
| Secondary Cable Terminal | 35 mm² flexible cable |
| Relative Short-Circuit Voltage | 3.8% |
| Secondary/Earth Leakage Current | 0.5 mA (off-load maximum) |
| Inrush Current Limit | 12 times peak primary current |
| Temperature Monitoring | Dual system: bi-metal strips and PT 100 thermocouple |
| Electrostatic Shield | Yes, with dedicated terminals |
| Compliance Standard | IEC EN 61558-2-15 |
| Application | Hospital and medical facilities |
| Short-Circuit Proof | No |
| Ring Core Construction | No |
| PCB Mounting Suitable | No |
| Distribution Board Mounting | No |
| Reference Number | 042595 |
| EAN Code | 3414970971463 |
| Manufacturer | Legrand |
