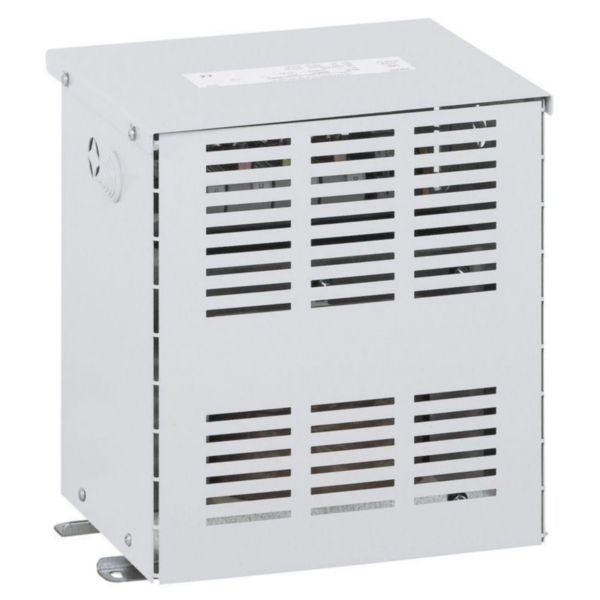

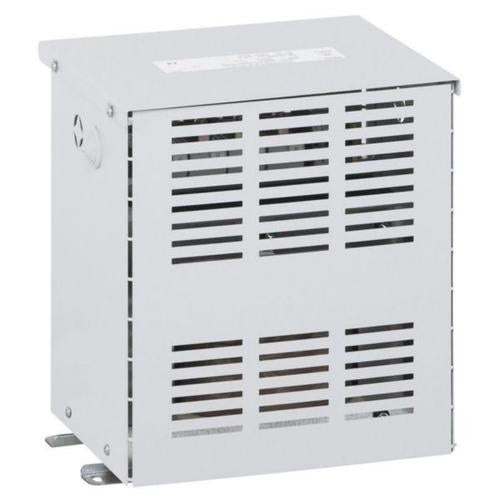

Shop Legrand IP21 Single Phase Hospital Isolating Transformer 5kVA | 42573 In Iraq Best Prices
Legrand hospital-grade isolating transformer with 5 kVA capacity, dual temperature monitoring, IP21 protection, and compliance with IEC EN 61558-2-15 standard for medical applications.
This Legrand isolating transformer model 042573 is specifically designed for hospital applications and conforms to the rigorous IEC EN 61558-2-15 standard. The transformer features a single-phase configuration with primary and secondary voltages of 230V~, making it ideal for medical environments requiring enhanced safety and isolation. With a rated apparent power of 5 kVA, this transformer is equipped with dual temperature monitoring systems including bi-metal strips and thermocouple PT 100 sensors, ensuring compatibility with any medical control system. The IP21 protection rating provides reliable protection against water spray and dust ingress, critical for hospital environments.
The transformer incorporates an electrostatic shield linked to a dedicated terminal, which helps minimize electromagnetic interference and ensures patient safety. It features secondary/earth leakage current limited to 0.5 mA off-load and inrush current restricted to 12 times the peak value of primary current, both crucial specifications for medical applications. The unit comes with flexible cable terminals rated at 35 mm² for both primary and secondary connections, allowing for flexible installation in various hospital configurations. The H-class insulation material provides excellent thermal stability and long-term reliability.
With dimensions of 340mm (width) × 410mm (height) × 370mm (depth), this transformer is compact enough for efficient space utilization in hospital installations. The 3.1% relative short circuit voltage ensures minimal voltage drop during operation, maintaining stable power delivery to critical medical equipment. This transformer is non-ring core and not suitable for PCB or distribution board mounting, making it ideal for standalone installation in medical facilities.
Key Features
- IEC EN 61558-2-15 compliant isolating transformer designed specifically for hospital environments
- Dual temperature monitoring systems with bi-metal strips and thermocouple PT 100 sensors for medical control system compatibility
- IP21 protection rating providing resistance to water spray and dust ingress
- Electrostatic shield linked to dedicated terminal minimizing electromagnetic interference
- Earth leakage current limited to 0.5 mA off-load with inrush current restricted to 12 times peak primary current
- H-class insulation material ensuring excellent thermal stability and long-term reliability
- 35 mm² flexible cable terminals for both primary and secondary connections
- Compact dimensions (340×410×370 mm) suitable for efficient space utilization
- 3.1% relative short circuit voltage ensuring minimal voltage drop
- Single-phase configuration with 230V primary and secondary voltages
Technical Specifications
| Specification |
Value |
| Product Type | Isolating Transformer for Hospitals |
| Model Number | 042573 |
| Manufacturer | Legrand |
| Phase Configuration | Single-phase |
| Primary Voltage | 230V~ (Min-Max: 230-230V) |
| Secondary Voltage | 230V~ with centre tap (Min-Max: 230-230V) |
| Rated Apparent Power | 5000 VA (5 kVA) |
| Insulation Class | H (IEC 85) |
| Degree of Protection | IP21 |
| Relative Short Circuit Voltage | 3.1% |
| Width | 340 mm |
| Height | 410 mm |
| Depth | 370 mm |
| Primary Terminal Cable Size | 35 mm² (flexible) |
| Secondary Terminal Cable Size | 35 mm² (flexible) |
| Temperature Monitoring | Dual system with bi-metal strips and thermocouple PT 100 |
| Earth Leakage Current | Limited to 0.5 mA off-load |
| Inrush Current | Limited to 12 times peak primary current |
| Safety Transformer | No |
| Energy Saving Transformer | No |
| Short-circuit Proof | No |
| Ring Core | No |
| PCB Mounting Compatible | No |
| Distribution Board Mounting | No |
| Standards Compliance | IEC EN 61558-2-15 |
| EAN Code | 3245060425739 |
