Shop Legrand Three-Phase Isolating Transformer Hospital 4kVA 400V/230V | 42581 In Iraq Best Prices
Professional three-phase isolating transformer for hospitals with 4kVA output, IEC EN 61558-2-15 certified, featuring electrostatic shield, temperature monitoring system, and enhanced safety specifications for medical facility applications.

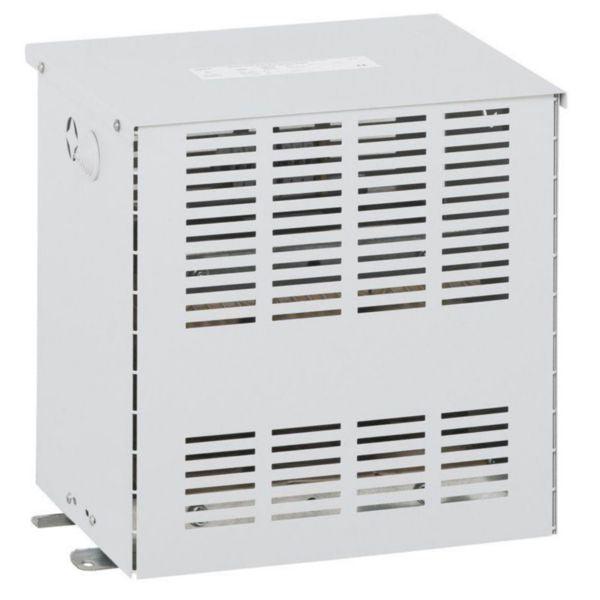

The Legrand Isolating Transformer for Hospitals is a professional-grade three-phase transformer specifically designed to meet the stringent safety requirements of medical facilities. This transformer conforms to the IEC EN 61558-2-15 standard, which includes enhanced safety specifications for hospital environments. With a rated power output of 4 kVA, it provides reliable voltage transformation from primary 400V to secondary 230V, ensuring stable power distribution for critical medical equipment and hospital infrastructure.
This isolating transformer features an advanced electrostatic shield linked to a dedicated terminal, providing superior protection against electromagnetic interference and voltage surges. The device is equipped with a sophisticated temperature monitoring system utilizing bi-metal strips for connection to control systems with optical and acoustic indicators. The secondary/earth leakage current is limited to just 0.5 mA off-load, and the inrush current is carefully controlled to 12 times the peak value of primary current, ensuring safe operation in sensitive hospital environments.
The transformer features IP21 degree of protection and IK08 impact strength rating, making it suitable for installation in hospital rooms and medical facilities. It includes terminal primary flexible cable rated at 10 mm² and terminal secondary flexible cable also rated at 10 mm², with screwed terminal connections for secure installation. The unit measures 420mm in width, 270mm in height, and 190mm in depth, with a relative short circuit voltage of 3.3%, ensuring efficient power transmission with minimal losses.
Key Features
- IEC EN 61558-2-15 Standard Compliance for hospital-grade safety specifications
- Advanced Electrostatic Shield with dedicated terminal for electromagnetic interference protection
- Temperature Monitoring System with bi-metal strips and control system connectivity
- Controlled Secondary/Earth Leakage Current limited to 0.5 mA off-load
- Limited Inrush Current to 12 times peak primary current for safe operation
- IP21 Degree of Protection and IK08 Impact Strength Rating
- Three-Phase Configuration with Primary 400V and Secondary 230V output
- 4 kVA Rated Power Output for medical facility applications
- Type H Insulation Material for enhanced thermal performance
- Screwed Terminal Connections for secure and reliable installation
Technical Specifications
| Specification |
Value |
| Product Type | Isolating Transformer for Hospitals |
| Phase Configuration | Three-Phase |
| Primary Voltage | 400V~ + N (400-400V) |
| Secondary Voltage | 230V~ + N (230-230V) |
| Rated Power Output | 4 kVA (4000 VA) |
| Wiring System | YY (Star-Star) |
| Insulation Material Type | Type H |
| Relative Short Circuit Voltage | 3.3% |
| Secondary/Earth Leakage Current | 0.5 mA off-load (maximum) |
| Inrush Current | 12 times peak primary current |
| Degree of Protection | IP21 |
| Impact Strength Rating | IK08 |
| Width | 420 mm |
| Height | 270 mm |
| Depth | 190 mm |
| Primary Terminal Cable | Flexible cable 10 mm² |
| Secondary Terminal Cable | Flexible cable 10 mm² |
| Connection Type | Screwed Terminal |
| Terminal Marking | Yes |
| Safety Standard | IEC EN 61558-2-15 |
| Electrostatic Shield | Yes, linked to dedicated terminal |
| Temperature Monitoring | Bi-metal strips with control system connectivity |
| Short-Circuit-Proof | No |
| Energy Saving Transformer | No |
| Safety Transformer | No |
