Shop Legrand IP21 Single-Phase Isolating Transformer Hospital 8kVA | 142575 In Iraq Best Prices
Hospital-grade isolating transformer with 8kVA output, IP21 protection, dual temperature monitoring, and advanced safety features for critical medical applications. Ensures electrical safety and service continuity in healthcare facilities.

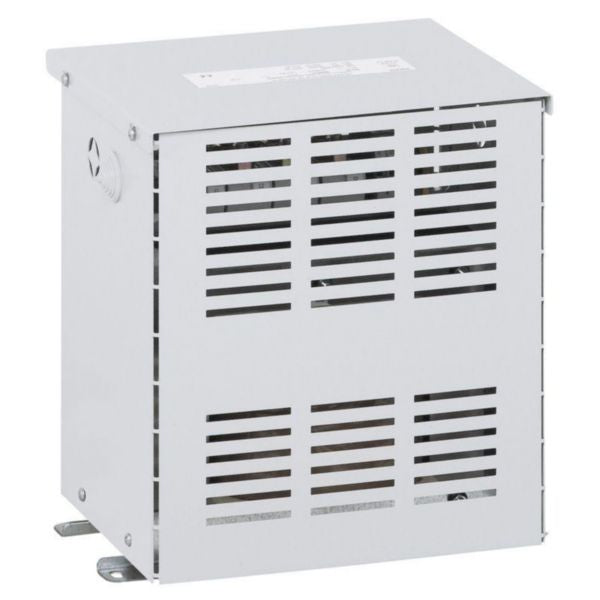

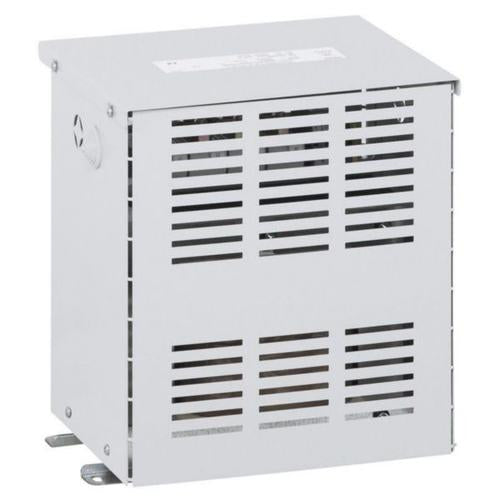

This Legrand isolating transformer is specifically designed for hospital environments, ensuring reliable service continuity, superior electrical energy quality, and enhanced patient safety. The transformer features a 230V primary to 230V secondary isolation configuration with an 8kVA output capacity, making it ideal for critical medical applications. It complies with IEC EN 61558-2-15 standards and includes advanced safety features such as electrostatic shielding linked to dedicated terminals and dual temperature monitoring systems (bi-metal strips and thermocouple PT100). The IP21 protection rating ensures reliable operation in hospital environments with controlled exposure to dust and water splash. The transformer incorporates secondary/earth leakage current limitation to 0.5mA off-load and inrush current control limited to 12 times the peak value of primary current, meeting stringent medical safety requirements.
The unit is equipped with flexible cable terminals rated at 35mm² for both primary and secondary connections, facilitating secure and efficient installation. The dual temperature monitoring system makes it compatible with any medical control system, providing real-time thermal management and protection. With dimensions of 390mm (width) × 460mm (height) × 380mm (depth), the transformer offers a compact design suitable for integration into hospital electrical distribution systems. The H-class insulation material ensures long-term reliability and performance under demanding medical facility conditions. This transformer represents a critical component for ensuring uninterrupted power supply to life-support systems and other essential medical equipment.
The isolating transformer's robust construction and advanced protective features make it an essential solution for healthcare facilities requiring guaranteed electrical safety and continuity. Its compliance with international medical standards and proven reliability in hospital applications make it a trusted choice for medical facility engineers and installers seeking to maintain the highest levels of patient safety and operational excellence.
Key Features
- IEC EN 61558-2-15 compliant isolating transformer specifically designed for hospital medical applications
- Dual temperature monitoring system with bi-metal strips and PT100 thermocouple for real-time thermal management
- IP21 protection rating ensuring reliable operation in controlled hospital environments
- Electrostatic shield linked to dedicated terminal for enhanced electromagnetic compatibility and safety
- Secondary/earth leakage current limited to 0.5mA off-load with inrush current control to 12 times peak primary current
- 230V to 230V isolation with 8kVA rated apparent power output
- H-class insulation material for long-term reliability in demanding medical facility conditions
- Flexible cable terminals rated 35mm² for both primary and secondary connections
- Compact dimensions (390×460×380mm) suitable for hospital electrical distribution systems
- Compatible with any medical control system for seamless integration
Technical Specifications
| Specification |
Value |
| Product Type | Single-Phase Isolating Transformer for Hospitals |
| Reference Number | 142575 |
| EAN Code | 3414970971401 |
| Manufacturer | Legrand |
| Primary Voltage | 230V AC (230-230V range) |
| Secondary Voltage | 230V AC with centre tap (230-230V range) |
| Rated Apparent Power | 8000 VA (8 kVA) |
| Relative Short Circuit Voltage | 3.8% |
| Insulation Material Class | H (according to IEC 85) |
| Protection Rating | IP21 |
| Width | 390 mm |
| Height | 460 mm |
| Depth | 380 mm |
| Primary Cable Terminal | Flexible cable 35 mm² |
| Secondary Cable Terminal | Flexible cable 35 mm² |
| Secondary/Earth Leakage Current | Limited to 0.5 mA off-load |
| Inrush Current | Limited to 12 times peak primary current |
| Temperature Monitoring | Dual system: bi-metal strips and PT100 thermocouple |
| Electrostatic Shield | Yes, linked to dedicated terminal |
| Ring Core Design | No |
| PCB Mounting Suitable | No |
| Distribution Board Mounting | No |
| Safety Transformer | No |
| Energy Saving Transformer | No |
| Short-Circuit-Proof | No |
| Compliance Standards | IEC EN 61558-2-15, IEC 61558-2-4 |
Order Legrand IP21 Single-Phase Isolating Transformer Hospital 8kVA | 142575 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
