Professional industrial alarm bell with 250mm gong, 98dB output, IP44/IK10 protection, 230V AC operation, and corrosion-resistant design for demanding industrial environments.

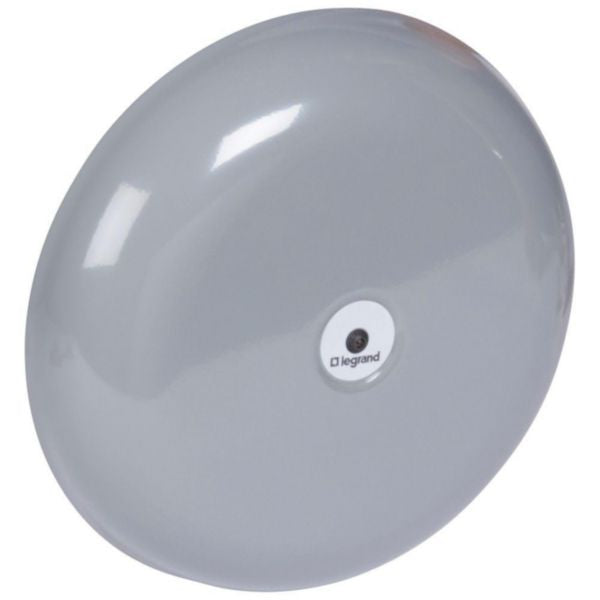

The Legrand Industrial Bell (Reference 041439) is a professional-grade alarm bell designed for industrial and alarm applications. This robust device features a 250mm diameter gong that produces an impressive 98 dB acoustic output at 1 meter, ensuring clear and audible alerts in demanding environments. Built with a polyester corrosion-resistant finish in RAL 7037 grey color, this bell is engineered to withstand harsh industrial conditions while maintaining reliable performance.
This Class I double-insulated bell operates on 230V AC power with a consumption of only 70 mA, making it energy-efficient for continuous operation up to 200 hours maximum. The device meets strict international safety standards with IP44 protection rating against dust and water ingress, and IK10 impact resistance rating. Its surface-mounted installation method allows for quick and straightforward deployment in various industrial settings, warehouses, manufacturing facilities, and emergency warning systems.
The bell is constructed from high-quality plastic housing with screwed terminal connections, ensuring durability and secure electrical installation. With operating temperatures ranging from -10°C to +55°C and storage capabilities from 0°C to +55°C, this industrial bell performs reliably across diverse climatic conditions. The halogen-free construction aligns with modern environmental and safety regulations, making it an excellent choice for facilities requiring certified compliance with international standards.
Key Features
- 250mm diameter gong produces powerful 98dB acoustic output at 1 meter distance
- IP44 protection rating against dust and water ingress for outdoor and wet environments
- IK10 impact resistance rating ensures durability in harsh industrial conditions
- Polyester corrosion-resistant finish in RAL 7037 grey for long-lasting performance
- Class I double-insulated design with halogen-free construction for safety compliance
- Low power consumption at 70mA with 230V AC operation for energy efficiency
- Surface-mounted installation with screwed terminal connections for easy setup
- Operating temperature range from -10°C to +55°C for diverse climates
- Maximum 200 hours continuous rating suitable for industrial alarm systems
- Compact dimensions: 250mm width x 105mm height x 250mm depth
Technical Specifications
| Specification |
Value |
| Product Reference | 041439 |
| EAN Code | 3245060414399 |
| Manufacturer | Legrand |
| Gong Diameter | 250mm |
| Acoustic Output | 98 dB at 1 meter |
| Nominal Voltage | 230V AC |
| Voltage Range | 207-253V |
| Power Consumption | 70 mA (0.1 A) |
| Current Type | Alternating Current (AC) |
| Frequency | 50-60 Hz |
| IP Protection Rating | IP44 |
| Impact Resistance Rating | IK07 |
| Housing Material | Plastic |
| Housing Color | Black (RAL 7037 Grey) |
| Insulation Class | Class I - Double Insulated |
| Connection Type | Screwed Terminal |
| Installation Method | Surface Mounted |
| Mounting Center Distance (Vertical) | 60mm |
| Mounting Center Distance (Horizontal) | 106mm |
| Width | 250mm |
| Height | 105mm |
| Depth | 250mm |
| Built-in Depth | 0mm |
| Weight | 2.1 kg |
| Operating Temperature Range | -10°C to +55°C |
| Storage Temperature Range | 0°C to +55°C |
| Continuous Rating | 200 hours maximum |
| Halogen Free | Yes |
| Radio Controlled | No |
| Batteries/Accumulator | No |
| Rainproof Plate Protection | No |
| Luminous Signal | No |
| Carbon Footprint (Manufacturing) | 9.146 kg CO2 eq. |
