Industrial-grade surface-mounting socket with IP44 protection, 63A capacity, metal construction, and IK09 impact resistance for reliable three-phase power distribution

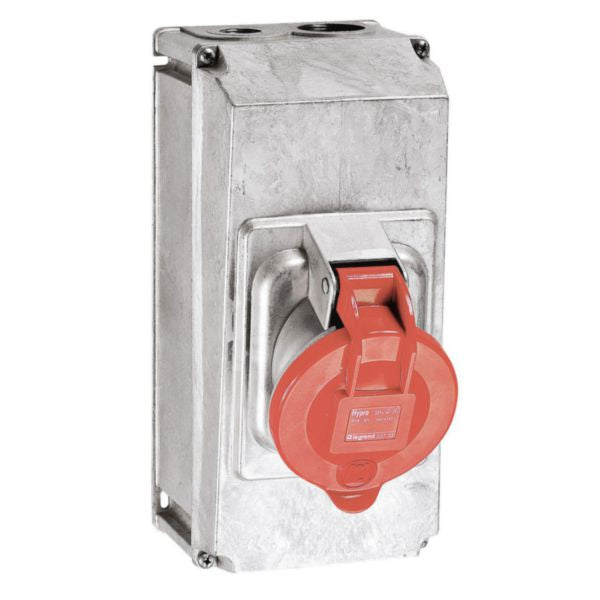

The Legrand Hypra Surface Mounting Socket is a professional-grade industrial electrical socket designed for demanding applications requiring robust protection and reliable connectivity. This IP44-rated socket features a durable metal construction that provides exceptional mechanical protection with an IK09 impact resistance rating. Engineered to comply with IEC 60309-1 and IEC 60309-2 standards, this 63A three-phase socket with earth contact is ideal for temporary installations, construction sites, and industrial environments where equipment protection is paramount.
This surface-mounting socket is specifically designed for 380/415V AC 50/60Hz three-phase power distribution systems. The metal housing provides superior durability compared to plastic alternatives, with self-extinguishing properties rated at 850°C for active parts support and 650°C for the housing assembly, ensuring fire safety compliance. The socket features a standard M32 cable entry diameter and wall-mounting installation method, making it suitable for fixed installations in warehouses, factories, and outdoor industrial settings.
The Hypra socket series represents a comprehensive solution for industrial power distribution, offering consistent performance across temperature ranges from -50°C to +100°C. With its IP44 protection rating against dust and water ingress, this socket is suitable for both indoor and outdoor applications. The product includes comprehensive technical documentation and complies with RoHS and REACH regulations, ensuring environmental responsibility and safety standards compliance.
Key Features
- IP44 protection rating against dust and water ingress for indoor and outdoor use
- Metal housing construction with IK09 impact resistance for superior durability
- 63A three-phase capacity at 380/415V AC 50/60Hz for industrial power distribution
- Complies with IEC 60309-1 and IEC 60309-2 international standards
- Self-extinguishing properties at 850°C for enhanced fire safety
- Wide operating temperature range from -50°C to +100°C
- M32 cable entry diameter for secure and reliable connections
- Wall-mounting installation method for fixed industrial applications
- 3P+E (three-phase plus earth) contact configuration
- RoHS and REACH compliant for environmental responsibility
Technical Specifications
| Specification |
Value |
| Product Type | Surface Mounting Socket |
| Brand | Legrand |
| Series | Hypra |
| Reference Number | 053733 |
| EAN Code | 3245060537333 |
| Voltage Rating | 380/415V AC |
| Current Rating | 63A |
| Frequency | 50/60 Hz |
| Phase Configuration | 3P+E (Three-Phase plus Earth) |
| Protection Degree | IP44 |
| Impact Resistance | IK09 |
| Housing Material | Metal |
| Color | Grey |
| Height | 129 mm |
| Width | 106 mm |
| Cable Entry Diameter | M32 |
| Installation Method | Wall Mounting |
| Operating Temperature Range | -50°C to +100°C |
| Self-Extinguishing Rating (Support) | 850°C |
| Self-Extinguishing Rating (Housing) | 650°C |
| Standards Compliance | IEC 60309-1, IEC 60309-2, IEC 60529, IEC 62262, IEC 60695-2-10 |
| Environmental Compliance | RoHS Directive, REACH Declaration |
| Suitable for EV Charging | No |
