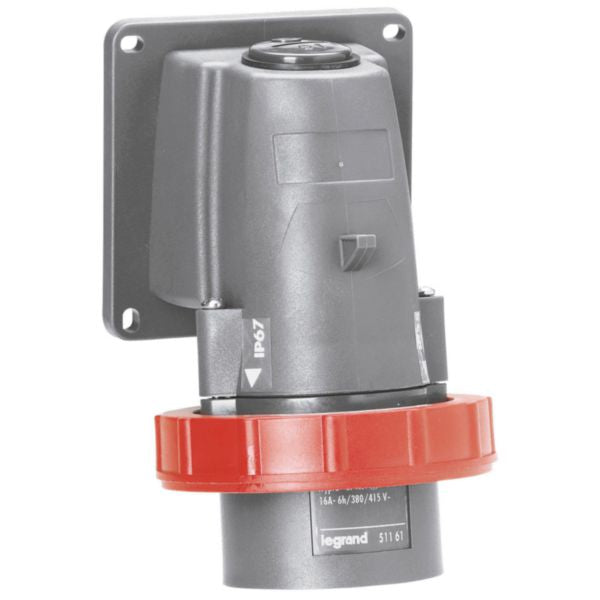

Shop Legrand Hypra Surface Appliance Inlet IP 66/67 16A 380-415V 3P+N+E | 51191 In Iraq Best Prices
Industrial surface appliance inlet with IP 66/67 protection, 16A capacity, 380-415V AC, 3P+N+E configuration, plastic construction with self-extinguishing properties, IEC 60309 compliant, ideal for harsh industrial environments.
The Legrand Hypra Surface Appliance Inlet is a professional-grade industrial electrical connector designed for demanding applications requiring maximum protection and reliability. This surface-mounted inlet features an IP 66/67 protection rating, ensuring complete protection against dust, water jets, and temporary immersion. Compliant with IEC 60309-1 and IEC 60309-2 international standards, this device is engineered for low voltage applications with a rated voltage of 380-415V AC at 50/60 Hz frequency.
This inlet socket is specifically designed for industrial and commercial environments where robust electrical connections are essential. The 16-ampere capacity with 5-pole configuration (3P+N+E) provides safe and efficient power distribution. The plastic construction features self-extinguishing properties rated at 850°C for active parts support and 650°C for the plastic housing, ensuring enhanced safety during electrical faults. The red identification color indicates its 400V specification, making it instantly recognizable on job sites.
The Hypra inlet features a straight insert direction and utilizes screwed terminals for secure and reliable connections. With an IK 09 impact resistance rating, this device withstands mechanical stress in harsh industrial environments. The recessed mounted design provides additional protection against accidental contact and environmental hazards. This product is NOT suitable for electric vehicle charging applications and is specifically designed for industrial power distribution systems requiring high-performance, weatherproof connectivity solutions.
Key Features
- IP 66/67 protection rating for complete dust and water resistance
- 16-ampere capacity with 5-pole (3P+N+E) configuration for safe power distribution
- Compliant with IEC 60309-1 and IEC 60309-2 international standards
- Self-extinguishing plastic construction with enhanced fire safety properties
- IK 09 impact resistance rating for durability in harsh industrial environments
- Screwed terminal connections for secure and reliable electrical coupling
- Red identification color indicating 400V specification for easy recognition
- Recessed mounted design providing protection against accidental contact
- Rated for 380-415V AC at 50/60 Hz frequency
- Straight insert direction for standardized installation and compatibility
Technical Specifications
| Specification |
Value |
| Rated Amperage | 16 A |
| Voltage Rating | 380-415 V AC (50/60 Hz) |
| Voltage per EN 60309-2 | 400 V (50+60 Hz) Red |
| Number of Poles | 5 (3P+N+E) |
| Protection Degree (IP) | IP 66/67 |
| Impact Resistance | IK 09 |
| Clock Hour Position | 6 h |
| Identification Colour | Red |
| Connection System | Screwed Terminal |
| Construction Type | Recessed Mounted Device Plug |
| Material | Plastic |
| Self-Extinguishing Rating (Active Parts) | 850°C |
| Self-Extinguishing Rating (Plastic Housing) | 650°C |
| Insert Direction | Straight |
| Phase Inverter | No |
| Military Model | No |
| Standards Compliance | IEC 60309-1, IEC 60309-2, IEC 60529 |
| Product Reference | 051191 |
| EAN Code | 3245060511913 |
| Brand | Legrand Hypra |
