Shop Legrand Hypra Straight Plug IP44 63A 3P+N+E Plastic | 53844 In Iraq Best Prices
Professional Legrand Hypra industrial straight plug with IP44 protection, 63A capacity, 3P+N+E configuration, and plastic construction for reliable heavy-duty power distribution in industrial applications.

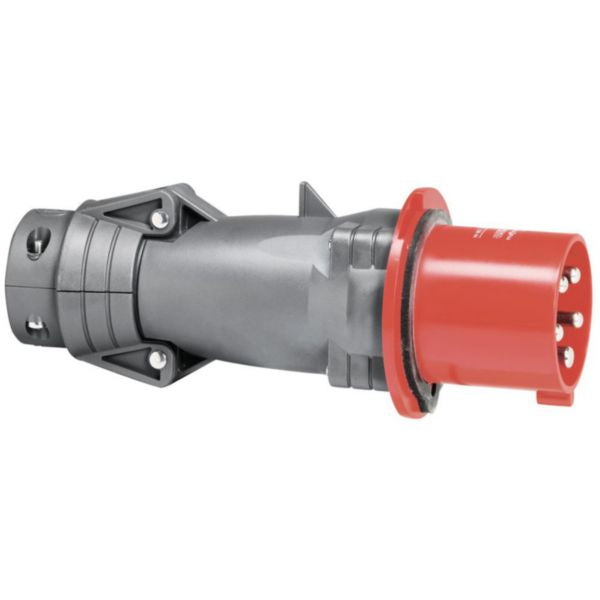

The Legrand Hypra Straight Plug is a professional-grade industrial connector designed for heavy-duty electrical applications. With an IP44 protection rating, this straight plug is suitable for outdoor and harsh environments, providing reliable power distribution in challenging conditions. The plug features a 3-phase configuration with neutral and earth connections (3P+N+E), rated at 63 amperes and 380-415V AC at 50/60Hz, making it ideal for industrial machinery and equipment requiring robust electrical connectivity.
This straight plug is manufactured from durable plastic material with self-extinguishing properties rated at 850°C for active parts support and 650°C for plastic housing, ensuring compliance with IEC 60695-2-10 fire safety standards. The plug incorporates a screwed terminal connection system with anti-kink sleeve cable entry, providing secure and reliable electrical connections. The IK09 impact resistance rating for plastic construction ensures durability in demanding industrial environments. Operating temperature range from -50°C to +100°C makes it suitable for both extreme cold and hot environments.
Conforming to IEC 60309-1 and IEC 60309-2 international standards, the Hypra straight plug features a distinctive red identification color (RAL 3000) with a 6-hour clock position marking for easy phase identification. The straight insertion design allows for direct plug-in applications without angular offset, making it ideal for fixed installations where space is limited. This industrial plug is not suitable for electric vehicle charging applications and is designed exclusively for stationary power distribution systems.
Key Features
- IP44 protection rating for outdoor and harsh environment applications
- 63 ampere capacity with 380-415V three-phase AC power at 50/60Hz
- 3P+N+E configuration with neutral and earth connections for safety
- Durable plastic construction with 850°C self-extinguishing support material
- IK09 impact resistance rating ensuring durability in demanding conditions
- Screwed terminal connection system with anti-kink sleeve cable entry
- Operating temperature range from -50°C to +100°C for extreme environments
- Red identification color (RAL 3000) with 6-hour clock position for phase identification
- Straight insertion design for direct fixed installation applications
- Conforms to IEC 60309-1 and IEC 60309-2 international standards
Technical Specifications
| Specification |
Value |
| Product Type | Straight Industrial Plug |
| Brand | Legrand |
| Series | Hypra |
| Reference Number | 053844 |
| EAN Code | 3245060538446 |
| Rated Current | 63 A |
| Voltage | 380-415 V AC |
| Frequency | 50/60 Hz |
| Number of Poles | 5 (3P+N+E) |
| Configuration | 3 Phase + Neutral + Earth |
| IP Rating | IP44 |
| IK Rating | IK09 |
| Material | Plastic |
| Identification Color | Red (RAL 3000) |
| Clock Hour Position | 6 h |
| Connection System | Screwed Terminal |
| Cable Entry | Anti-kink Sleeve |
| Insertion Type | Straight |
| Self-Extinguishing Temperature (Support) | 850°C |
| Self-Extinguishing Temperature (Housing) | 650°C |
| Operating Temperature Range | -50°C to +100°C |
| Fire Safety Standard | IEC 60695-2-10 |
| IEC Standard Compliance | IEC 60309-1, IEC 60309-2 |
| Phase Inverter | No |
| Military Model | No |
| Suitable for EV Charging | No |
Order Legrand Hypra Straight Plug IP44 63A 3P+N+E Plastic | 53844 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
