Shop Legrand Hypra Straight Plug IP44 380/415V 32A 3P+N+E | 52944 In Iraq Best Prices
Professional-grade industrial straight plug with IP44 protection, 32A capacity, 3-phase configuration, and IEC compliance for reliable power distribution in demanding environments.

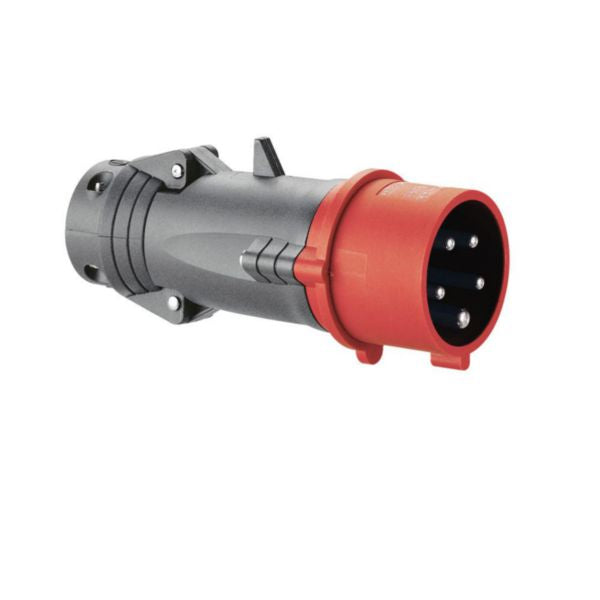

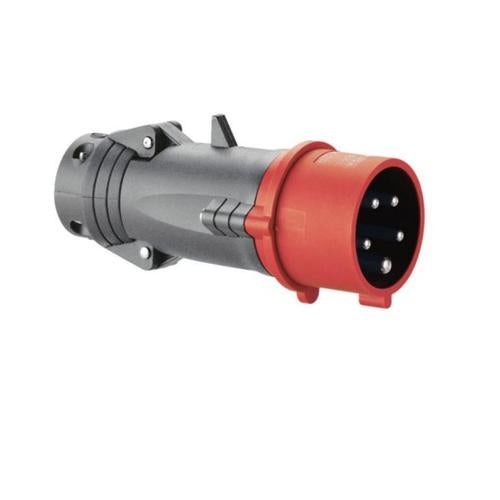

The Legrand Hypra Straight Plug is a professional-grade industrial connector designed for demanding applications requiring reliable power distribution. This IP44-rated plug features a robust plastic construction that meets IEC 60309-1 and IEC 60309-2 standards, ensuring compatibility with industrial power systems worldwide. The plug is specifically engineered for three-phase applications with a 380-415V rating at 50/60Hz, delivering a maximum amperage of 32A with 5 poles (3P+N+E configuration). Its angled insert design and anti-kink sleeve provide secure connections and extended cable life in high-stress environments.
This industrial connector is built to withstand harsh conditions with an IK09 impact resistance rating for plastic construction and self-extinguishing properties up to 850°C for support components. The red identification color (RAL 3000) provides instant visual recognition of the voltage class, reducing installation errors and improving workplace safety. The screwed terminal connection system ensures vibration-resistant, long-lasting electrical integrity, making it ideal for construction sites, manufacturing facilities, and temporary power distribution systems. The plug is supplied in convenient packs of 5 units, streamlining procurement for large-scale projects.
Designed for versatility and reliability, the Hypra straight plug operates efficiently across a temperature range of -50°C to +100°C, making it suitable for both indoor and outdoor installations. Its compliance with rigorous international standards and comprehensive technical documentation ensures seamless integration into existing industrial infrastructure. The product is not suitable for electric vehicle charging applications, maintaining its focus on traditional industrial power distribution needs.
Key Features
- IP44 ingress protection rating for dust and water resistance in harsh industrial conditions
- 32A amperage capacity with 3-phase plus neutral and earth configuration (3P+N+E)
- 380-415V rated voltage with 50/60Hz compatibility for global industrial applications
- Screwed terminal connection system ensuring vibration-resistant long-term electrical integrity
- IEC 60309-1 and IEC 60309-2 compliance for standardized industrial power distribution
- Red identification color (RAL 3000) for instant voltage class recognition and safety
- IK09 impact resistance rating for plastic construction with 850°C self-extinguishing properties
- Anti-kink cable sleeve protecting against cable damage and extending service life
- Operating temperature range from -50°C to +100°C for diverse climate conditions
- Supplied in convenient packs of 5 units for streamlined project procurement
Technical Specifications
| Specification |
Value |
| Product Type | Industrial Straight Plug |
| Brand | Legrand |
| Series | Hypra |
| Reference Number | 052944 |
| EAN Code | 3245060529444 |
| Rated Voltage | 380-415V AC (50/60Hz) |
| Rated Current | 32A |
| Number of Poles | 5 poles (3P+N+E) |
| Clock Hour Position | 6 hours |
| Identification Colour | Red |
| RAL Number | RAL 3000 |
| Degree of Protection | IP44 |
| Impact Resistance | IK09 (plastic), IK10 (metal) |
| Material | Plastic housing with rubber components |
| Connection System | Screwed terminal |
| Cable Entry | Anti-kink sleeve |
| Insert Direction | Straight/Angled |
| Self-Extinguishing Rating | 850°C (support of active parts), 960°C (Prinsinter), 650°C (plastic housing) |
| Operating Temperature Range | -50°C to +100°C |
| Phase Inverter | No |
| Military Model | No |
| IEC Compliance | IEC 60309-1, IEC 60309-2, IEC 60529, IEC 62262 |
| Packing | Pack of 5 units |
| Suitable for EV Charging | No |
Order Legrand Hypra Straight Plug IP44 380/415V 32A 3P+N+E | 52944 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
