Description

Shop Legrand Hypra Panel Mounting Socket IP 66/67 16A 3P+E | 51150 In Iraq Best Prices

Professional industrial panel mounting socket with IP 66/67 protection, 16A capacity, 3P+E configuration, and superior fire-resistant plastic construction for demanding applications.

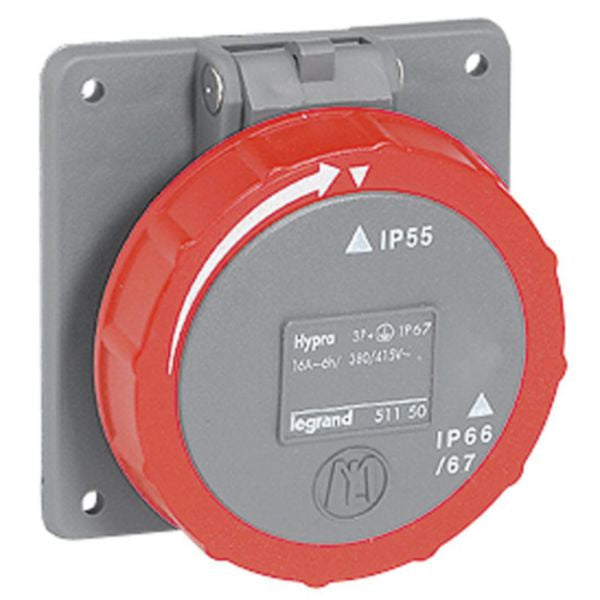

The Legrand Hypra Panel Mounting Socket is a professional-grade industrial electrical connector designed for secure panel mounting applications. This high-performance socket features IP 66/67 protection rating, ensuring complete dust and water resistance suitable for demanding industrial environments. With a rated capacity of 16 amperes at 380/415V three-phase alternating current, this 3P+E socket is engineered to meet IEC 60309-1 and IEC 60309-2 international standards for reliability and safety. Constructed from self-extinguishing plastic material with superior thermal properties (850°C support of active parts and 650°C plastic housing), this socket offers exceptional durability and fire resistance. The socket features a straight insert direction and screwed terminal connection system for secure and reliable electrical contact. With a clock hour position of 6 hours and identification colour red, this socket ensures proper orientation and easy identification in complex electrical installations. This Hypra panel mounting socket is ideal for fixed industrial installations where reliable power distribution is critical. The single fixing centre design simplifies installation while maintaining structural integrity. Compatible with surface mounting and through wiring surface mounting applications when paired with appropriate adapters (Cat. No 0 522 29 and 0 522 89), this socket provides versatile installation options for various industrial configurations.

Key Features

IP 66/67 protection rating for complete dust and water resistance
16 ampere capacity at 380/415V three-phase AC power
Self-extinguishing plastic material with superior thermal resistance
Compliant with IEC 60309-1 and IEC 60309-2 international standards
Screwed terminal connection system for secure electrical contact
IK 09 impact resistance rating for industrial durability
Red identification colour for easy socket recognition
Single fixing centre design for simplified panel installation
Straight insert direction for proper orientation
Compatible with surface mounting adapters for flexible installation

Technical Specifications

Specification	Value
Product Reference	051150
EAN Code	3245060511500
Brand	Legrand
Product Line	Hypra
Rated Current	16 A
Voltage Rating	380/415V~ 50/60 Hz
Voltage Identification	400 V (50+60 Hz) red
Number of Poles	4 (3P+E)
IP Rating	IP 66/67
IK Rating	IK 09
Clock Hour Position	6 h
Identification Colour	Red
Material	Self-extinguishing plastic
Thermal Rating - Active Parts	850°C
Thermal Rating - Plastic Housing	650°C
Connection System	Screwed terminal
Insert Direction	Straight
Flange Size Vertical	84 mm
Drill Hole Distance Vertical	70 mm
Flange Size Horizontal	84 mm
Drill Hole Distance Horizontal	70 mm
Mounting Type	Panel mounting with single fixing centre
Military Model	No
Standards Compliance	IEC 60309-1, IEC 60309-2, IEC 60529
Application Type	Industrial fixed installation
Suitable for EV Charging	No

Order Legrand Hypra Panel Mounting Socket IP 66/67 16A 3P+E | 51150 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
