Shop Legrand Hypra Panel Mounting Socket IP44 32A 3P+N+E Plastic | 52920 In Iraq Best Prices
Industrial panel mounting socket with IP44 protection, 32A capacity at 380-415V three-phase, plastic construction, IEC 60309 compliant for reliable power distribution

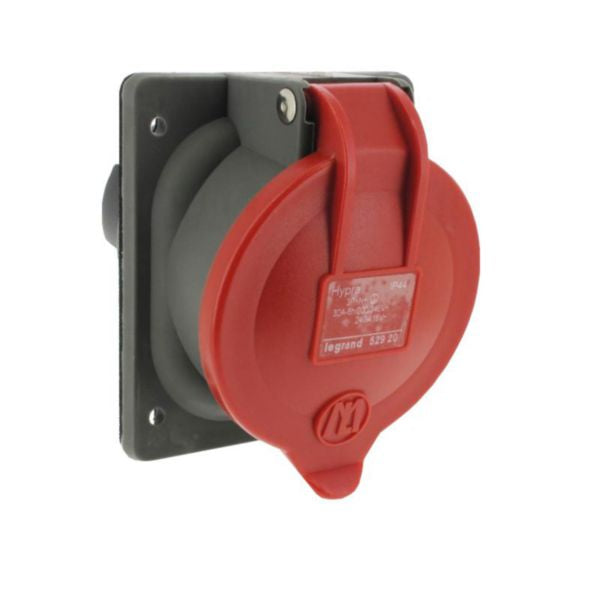

The Legrand Hypra Panel Mounting Socket is a professional-grade industrial electrical connector designed for demanding applications requiring reliable power distribution. This IP44-rated socket features a robust plastic housing that provides excellent protection against dust and water ingress, making it suitable for both indoor and outdoor installations. With a rated capacity of 32A at 380-415V three-phase AC (50/60 Hz), this socket delivers consistent and dependable performance for industrial machinery, construction equipment, and commercial applications.
This panel mounting socket is engineered to meet IEC 60309-1 and IEC 60309-2 international standards, ensuring compatibility with standard industrial connectors worldwide. The socket incorporates a 3-pole plus neutral and earth configuration (3P+N+E), providing comprehensive electrical protection and grounding capabilities. The fixing centre design allows for secure mounting on control panels and electrical enclosures, with clearly marked drill holes for precise installation. The plastic construction offers self-extinguishing properties at 650°C, enhancing safety in electrical installations.
Features include an IK09 impact resistance rating for the plastic housing, a 6-hour clock position for easy identification, and red identification coloring for quick visual recognition. The socket is equipped with screwed terminals for reliable connections and operates effectively across a temperature range of -50°C to +100°C. Not suitable for charging electric vehicles, this socket is ideal for powering industrial equipment, workshop machinery, and temporary site installations where durable, weather-resistant power distribution is essential.
Key Features
- IP44 protection rating against dust and water ingress for indoor and outdoor use
- 32A rated capacity at 380-415V three-phase AC (50/60 Hz) for industrial applications
- IEC 60309-1 and IEC 60309-2 international standards compliance ensuring global compatibility
- 3-pole plus neutral and earth configuration (3P+N+E) for comprehensive electrical protection
- IK09 impact resistance rating with self-extinguishing plastic housing at 650°C for enhanced safety
- Screwed terminal connections for secure and reliable electrical contacts
- 6-hour clock position with red identification coloring for quick visual recognition
- Operating temperature range of -50°C to +100°C for extreme environment capability
- Secure panel mounting design with precision drill hole spacing (70mm horizontal and vertical)
- Not suitable for electric vehicle charging applications
Technical Specifications
| Specification |
Value |
| Manufacturer | Legrand |
| Product Line | Hypra |
| Reference Number (SKU) | 052920 |
| EAN Code | 3245060529208 |
| Rated Current | 32 A |
| Voltage Rating | 380-415V AC three-phase (50/60 Hz) |
| Number of Poles | 5 (3P+N+E) |
| Degree of Protection | IP44 |
| Impact Resistance | IK09 |
| Material | Plastic with self-extinguishing properties |
| Self-Extinguishing Temperature | 650°C (plastic housing) |
| Clock Hour Position | 6 h |
| Identification Colour | Red |
| Connection System | Screwed terminal |
| Insert Direction | Straight |
| Flange Size Vertical | 94 mm |
| Drill Hole Distance Vertical | 70 mm |
| Flange Size Horizontal | 84 mm |
| Drill Hole Distance Horizontal | 70 mm |
| Operating Temperature Range | -50°C to +100°C |
| International Standards | IEC 60309-1, IEC 60309-2, IEC 60529, IEC 62262 |
| Installation Type | Panel mounting with fixing centre |
| Suitable for Electric Vehicle Charging | No |
| Military Model | No |
