Professional-grade industrial panel mounting socket with IP44 protection, 32A capacity, 3-phase 380-415V power rating, mechanical locking, and self-extinguishing plastic housing for reliable electrical installations.

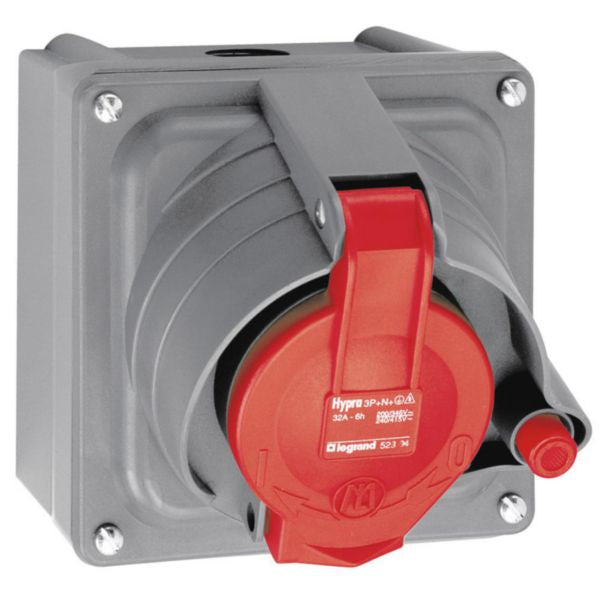

The Legrand Hypra Panel Mounting Socket is a professional-grade industrial electrical connector designed for reliable power distribution in demanding environments. This IP44-rated socket features a robust plastic housing construction that provides excellent protection against dust and water ingress, making it suitable for both indoor and outdoor installations. Rated at 32 amperes with 380-415V~ three-phase power supply (50/60 Hz), this socket includes neutral and earth connections (3P+N+E configuration), ensuring safe and compliant electrical installations.
Manufactured to IEC 60309-1 and IEC 60309-2 international standards, this Prisinter Hypra socket delivers exceptional durability and reliability. The mechanical locking system prevents accidental disconnection, while the self-extinguishing plastic housing (rated at 650°C) ensures fire safety compliance. The socket features a red identification color corresponding to the 6-hour clock position, making it easy to identify and install correctly. Operating temperature range extends from -50°C to +100°C, allowing deployment in challenging climates.
This panel-mounted socket is ideal for industrial applications, construction sites, and commercial installations where robust, weather-resistant power connections are essential. The IP44 protection rating ensures reliable operation in dusty and damp conditions, while the IK09 impact resistance rating protects against mechanical damage. Compatible with Legrand's comprehensive range of industrial connectors and accessories, this socket provides a complete solution for professional electrical installations.
Key Features
- IP44 protection rating providing excellent dust and water resistance for outdoor and harsh environments
- Mechanical locking system prevents accidental disconnection during operation
- Self-extinguishing plastic housing rated at 650°C ensures superior fire safety compliance
- IEC 60309-1 and IEC 60309-2 international standards certification for reliability and compatibility
- Wide operating temperature range from -50°C to +100°C for extreme climate applications
- Red identification color with 6-hour clock position for easy installation and identification
- IK09 impact resistance rating provides protection against mechanical damage
- Panel mounting design allows for permanent installation in electrical distribution systems
Technical Specifications
| Specification |
Value |
| Product Type | Panel Mounting Industrial Socket |
| Rated Current | 32 Amperes |
| Voltage Rating | 380-415V~ 50/60 Hz (Three-phase) |
| Number of Poles | 5 (3P+N+E - Three Phase + Neutral + Earth) |
| Degree of Protection | IP44 (IP55 when cover closed or connected) |
| Impact Resistance | IK09 (Plastic housing) |
| Housing Material | Plastic (Self-extinguishing) |
| Self-Extinguishing Rating | 650°C (Plastic housing), 850°C (Support of active parts), 960°C (Prisinter) |
| Operating Temperature Range | -50°C to +100°C |
| Clock Hour Position | 6 hours |
| Identification Color | Red |
| Switching Mechanism | Mechanical Locking |
| Earth Leakage Switch | No |
| SKU Reference | 052904 |
| EAN Code | 3245060529048 |
| Standards Compliance | IEC 60309-1, IEC 60309-2, IEC 60529, IEC 62262 |
| Mounting Type | Panel Mounting (Flush-mounted) |
| Associated Accessories | Compatible with surface-mounting box Cat. No. 052949 |
| Suitable for Electric Vehicles | No |
| Brand | Legrand |
| Product Line | Hypra Prisinter |
