Professional industrial panel mounting socket with IP44 protection, 16A capacity, 3P+N+E configuration, and robust plastic housing for reliable power distribution in demanding environments.

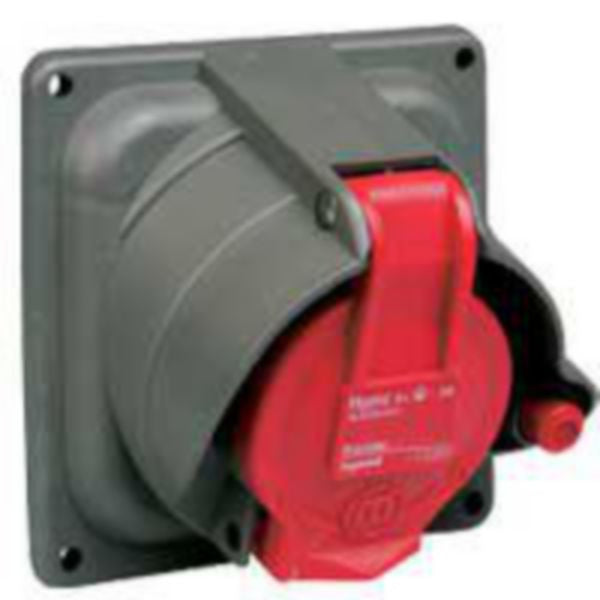

The Legrand Hypra Panel Mounting Socket (REF. 052204) is a professional-grade industrial electrical socket designed for reliable power distribution in demanding environments. This socket features IP44 protection rating, making it suitable for both indoor and outdoor applications where dust and water splash resistance is required. The socket is rated for 380/415V three-phase AC power at 50/60 Hz with a 16A capacity, providing secure and efficient electrical connectivity for industrial equipment and machinery.
This plastic housing socket incorporates advanced safety features including mechanical locking mechanisms and compliance with international standards IEC 60309-1 and IEC 60309-2. The socket features a distinctive red identification color corresponding to the 6-hour clock position, making it easily recognizable in complex electrical installations. With its robust construction and self-extinguishing plastic housing rated at 650°C, this socket is engineered to withstand harsh industrial conditions while maintaining optimal performance across a wide temperature range of -50°C to +100°C.
The Hypra series socket is specifically designed for panel mounting applications and can be associated with a surface-mounting box (Cat. No. 0522 49) for flexible installation options. It includes five poles for 3-phase plus neutral plus earth (3P+N+E) configuration, ensuring comprehensive electrical safety and proper grounding. This product is certified for industrial use and meets rigorous quality standards, making it an ideal choice for manufacturing facilities, power distribution centers, and other industrial electrical applications.
Key Features
- IP44 protection rating for dust and water splash resistance in industrial environments
- 16A capacity at 380/415V three-phase AC power (50/60 Hz)
- Mechanical locking mechanism for secure electrical connections
- Plastic housing with self-extinguishing properties rated at 650°C
- Compliant with IEC 60309-1 and IEC 60309-2 international standards
- 5-pole configuration for 3P+N+E (three-phase plus neutral plus earth)
- Operating temperature range from -50°C to +100°C for extreme conditions
- Red identification color at 6-hour clock position for easy recognition
- Panel mounting design with optional surface-mounting box compatibility
- IK09 impact resistance rating for plastic housing durability
Technical Specifications
| Specification |
Value |
| Product Reference | 052204 |
| EAN Code | 3245060522049 |
| Brand | Legrand |
| Series | Hypra Prisinter |
| Socket Type | Panel Mounting Socket |
| Rated Voltage | 380/415V AC |
| Frequency | 50/60 Hz |
| Rated Current | 16 A |
| Number of Poles | 5 (3P+N+E) |
| IP Rating | IP44 (IP55 with cover closed or connected) |
| IK Rating | IK09 for plastic housing |
| Identification Color | Red |
| Clock Position | 6 hours |
| Housing Material | Plastic |
| Self-Extinguishing Rating | 650°C (plastic housing) |
| Operating Temperature Range | -50°C to +100°C |
| Locking Mechanism | Mechanical Locking |
| Standards Compliance | IEC 60309-1, IEC 60309-2, IEC 60529, IEC 62262 |
| Installation Method | Panel Mounting |
| Associated Surface Box | Cat. No. 052249 |
| Suitable for EV Charging | No |
| Earth Leakage Switch | No |
