Shop Legrand Hypra Panel Mounting Socket IP44 16A 3P+E Metal | 52233 In Iraq Best Prices
Professional industrial panel mounting socket featuring IP44 protection, 16A capacity, 3P+E configuration, metal construction, and IEC 60309 compliance for reliable three-phase power distribution

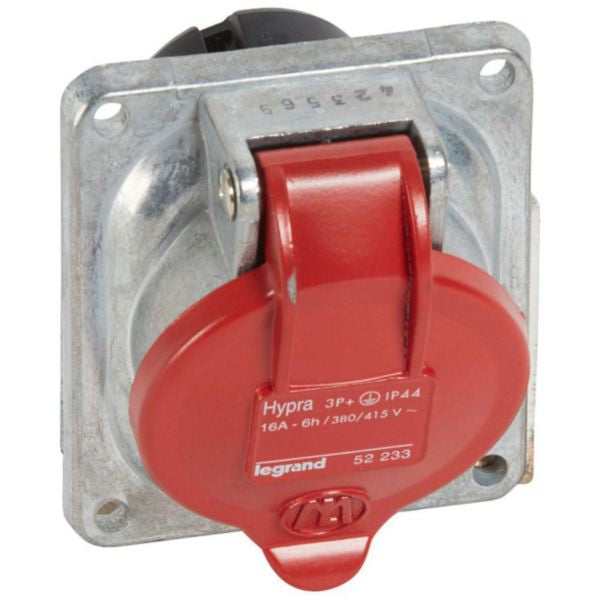

The Legrand Hypra panel mounting socket with inclined outlet is a professional-grade industrial electrical connector designed for demanding applications requiring IP44 protection. This metal socket is rated for 380/415V three-phase AC power at 50/60 Hz frequency, delivering reliable 16A capacity with 3P+E (three poles plus earth) configuration. Built to IEC 60309-1 and IEC 60309-2 standards, this socket features superior protection against environmental hazards with IP44 ingress protection and IK09 impact resistance rating for metal construction.
The socket incorporates premium construction materials and self-extinguishing properties rated at 850°C for active parts support and 960°C for Prinsinter materials, with plastic housing conforming to IEC 60695-2-10 standards. Its operational temperature range spans -50°C to +100°C, making it suitable for both indoor and outdoor industrial environments. The metal construction provides enhanced durability and mechanical strength, while the red identification color (conforming to IEC 60309-2 standards for 400V three-phase) ensures quick visual identification in complex electrical installations.
This panel-mounted socket features a straight insert direction with screwed terminal connections, positioned at the 6-hour clock position for standard industrial applications. The compact flange dimensions (84mm vertical x 74mm horizontal) with corresponding drill hole spacing (70mm vertical x 60mm horizontal) facilitate easy integration into existing control panels and switchboards. Compatible with surface-mounting boxes (Cat.No 0522 29) or through-wiring surface-mounting solutions (Cat.No 0522 89), this socket represents a complete solution for three-phase power distribution in industrial environments.
Key Features
- IP44 ingress protection rating for superior environmental protection against dust and water spray
- IK09 impact resistance for metal construction ensuring durability in harsh industrial environments
- 16A rated capacity for three-phase power distribution at 380/415V 50/60 Hz
- 3P+E configuration providing three poles plus earth for safe grounding and power distribution
- Metal construction with self-extinguishing properties rated at 850°C for active parts
- IEC 60309-1 and IEC 60309-2 compliance ensuring international standardization
- Screwed terminal connections for secure and reliable electrical contact
- Red identification color for quick visual recognition in complex installations
- Straight insert direction with 6-hour clock position for standard industrial applications
- Operating temperature range -50°C to +100°C for diverse environmental conditions
Technical Specifications
| Specification |
Value |
| Product Name | Panel Mounting Socket Inclined Outlet Hypra |
| Reference Number | 052233 |
| EAN Code | 3245060522339 |
| Manufacturer | Legrand |
| Series | Hypra |
| Rated Current | 16 A |
| Voltage Rating | 380/415V three-phase AC |
| Frequency | 50/60 Hz |
| Number of Poles | 4 (3P+E) |
| Configuration | Three poles plus earth (3P+E) |
| Identification Color | Red (IEC 60309-2 400V three-phase) |
| Degree of Protection (IP) | IP44 |
| Impact Resistance (IK) | IK09 (metal) |
| Connection System | Screwed terminal |
| Insert Direction | Straight |
| Clock Hour Position | 6 h |
| Material | Metal |
| Flange Size Vertical | 84 mm |
| Drill Hole Distance Vertical | 70 mm |
| Flange Size Horizontal | 74 mm |
| Drill Hole Distance Horizontal | 60 mm |
| Self-Extinguishing Temperature (Active Parts) | 850°C |
| Self-Extinguishing Temperature (Prinsinter) | 960°C |
| Plastic Housing Temperature | 650°C (IEC 60695-2-10) |
| Operating Temperature Range | -50°C to +100°C |
| Standards Compliance | IEC 60309-1, IEC 60309-2, IEC 60529, IEC 62262 |
| Suitable for Electric Vehicle Charging | No |
| Compatible Surface Mounting Box | Cat.No 0522 29 or Cat.No 0522 89 |
| Installation Type | Panel mounting |
| Outlet Type | Inclined outlet |
