Shop Legrand Hypra Panel Mounting Socket IP44 16A 2P+E Metal | 52032 In Iraq Best Prices

Professional industrial panel mounting socket with IP44 protection, 16A capacity, metal construction, and IEC 60309 compliance for reliable three-phase electrical distribution

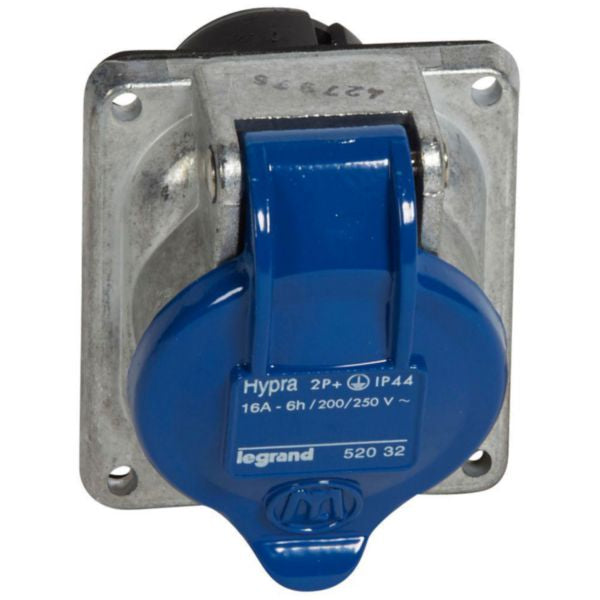

The Legrand Hypra Panel Mounting Socket is a professional-grade industrial electrical component designed for demanding applications requiring reliable power distribution. This socket features an inclined outlet configuration with IP44 protection rating, making it suitable for environments with water spray and dust exposure. Manufactured from durable metal construction, it meets IEC 60309-1 and IEC 60309-2 international standards, ensuring compatibility with standard industrial plugs and sockets worldwide. This 16A rated socket operates at 200-250V AC (50/60 Hz) with a 2P+E (two poles plus earth) configuration, providing secure three-point electrical connection. The socket features a 6-hour clock position with blue identification color according to EN 60309-2 standards for 230V applications. The metal housing provides superior durability with an IK10 impact resistance rating, protecting against mechanical stress in industrial environments. Self-extinguishing properties at 850°C ensure fire safety compliance. The panel mounting design allows for direct integration into electrical cabinets and distribution panels with convenient screwed terminal connections. Flange dimensions of 72mm (vertical) x 64mm (horizontal) with standardized drill hole spacing (60mm vertical, 52mm horizontal) enable straightforward installation. Operating temperature range from -20°C to +100°C ensures reliable performance across diverse climatic conditions. This socket is not suitable for charging electric vehicles and should be paired with appropriate mounting boxes for surface or through-wiring applications.

Key Features

  • IP44 protection rating for water spray and dust resistance in industrial environments
  • 16A rated capacity at 200-250V AC (50/60 Hz) with 2P+E configuration
  • Metal construction with IK10 impact resistance for maximum durability
  • IEC 60309-1 and IEC 60309-2 international standards compliance
  • Self-extinguishing properties at 850°C for enhanced fire safety

Technical Specifications

Specification Value
Product TypePanel Mounting Socket with Inclined Outlet
Rated Current16 A
Voltage Rating200-250 V AC (50/60 Hz)
Number of Poles3 (2P+E - Two Poles Plus Earth)
Protection RatingIP44 (Water spray and dust resistant)
Impact ResistanceIK10 (metal housing)
Clock Position6 o'clock
Identification ColorBlue (230V application)
Connection SystemScrewed Terminal
Insert DirectionStraight
MaterialMetal
Flange Size Vertical72 mm
Flange Size Horizontal64 mm
Drill Hole Distance Vertical60 mm
Drill Hole Distance Horizontal52 mm
Operating Temperature Range-20°C to +100°C
Self-Extinguishing Temperature850°C (support of active parts)
Standards ComplianceIEC 60309-1, IEC 60309-2, IEC 60529, IEC 62262
Reference Number052032
EAN Code3245060520328

Order Legrand Hypra Panel Mounting Socket IP44 16A 2P+E Metal | 52032 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
