Shop Legrand Hypra Panel Appliance Inlet IP44 380/415V 16A 3P+E Metal | 52163 In Iraq Best Prices
Professional industrial panel appliance inlet with IP44 protection, 16A capacity at 380-415V, metal construction, IEC 60309 compliant, suitable for three-phase power distribution applications.

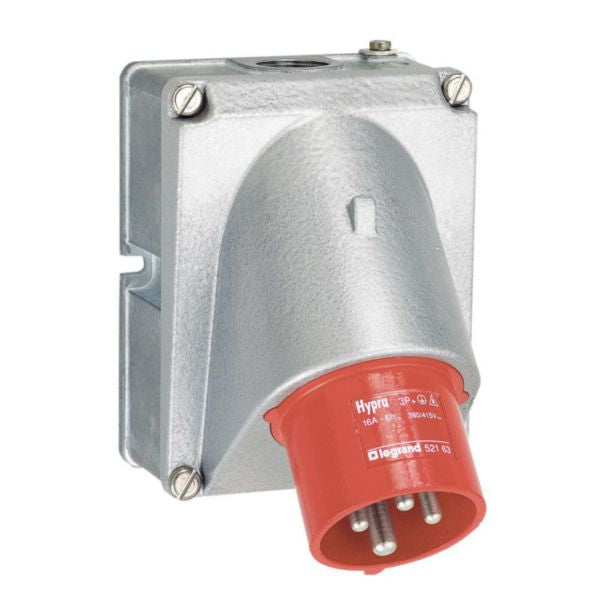

The Legrand Hypra Panel Appliance Inlet is a professional-grade industrial electrical connector designed for surface-mounted applications. This IP44-rated device operates at 380-415V AC with 50/60 Hz frequency and provides 16A capacity with 3-phase plus earth (3P+E) configuration. Manufactured with durable metal construction, it meets IEC 60309-1 and IEC 60309-2 international standards, ensuring reliable performance in demanding industrial environments.
This appliance inlet features a screwed terminal connection system with straight insert direction and is positioned at 6 o'clock hour position for easy identification. The metal construction provides exceptional durability with IK10 impact resistance rating according to IEC 62262 standards. The device is self-extinguishing and maintains operational capability across a wide temperature range from -20°C to +100°C, making it suitable for various climate conditions.
The red identification color (400V specification) ensures quick visual recognition on installation panels. This product is engineered for industrial power distribution applications and is not suitable for electric vehicle charging. It includes comprehensive technical documentation, RoHS compliance certification, and REACH declaration compliance, making it an ideal choice for professional electrical installations requiring robust, standards-compliant connectors.
Key Features
- IP44 protection rating for dust and water splash resistance in industrial environments
- Metal construction with IK10 impact resistance for durability and reliability
- IEC 60309-1 and IEC 60309-2 international standards compliance
- 16A capacity with 3-phase plus earth (3P+E) configuration at 380-415V AC
- Self-extinguishing properties with wide operating temperature range (-20°C to +100°C)
- Screwed terminal connection system for secure and reliable connections
- Red identification color for quick visual recognition on installation panels
- 6 o'clock hour position for standardized orientation and easy identification
- RoHS compliant and REACH declaration certified
- Surface-mounted design for panel installation applications
Technical Specifications
| Specification |
Value |
| Product Type | Panel Appliance Inlet |
| Brand | Legrand |
| Series | Hypra |
| Reference Number | 052163 |
| EAN Code | 3245060521639 |
| Rated Voltage | 380-415V AC, 50/60 Hz |
| Rated Current | 16 A |
| Configuration | 3P+E (3-Phase + Earth) |
| Number of Poles | 4 |
| Degree of Protection (IP) | IP44 |
| Impact Resistance (IK) | IK10 (Metal construction) |
| Material | Metal |
| Construction Type | Surface Mounted Device Plug |
| Connection System | Screwed Terminal |
| Insert Direction | Straight |
| Clock Hour Position | 6 h |
| Identification Color | Red |
| Operating Temperature Range | -20°C to +100°C |
| Self-Extinguishing | 850°C (support of active parts) / 960°C for Prisinter |
| Housing Temperature | 650°C |
| IEC Standards Compliance | IEC 60309-1, IEC 60309-2, IEC 60529, IEC 62262 |
| Phase Inverter | No |
| Military Model | No |
| Suitable for Electric Vehicle Charging | No |
| RoHS Compliance | Yes |
| REACH Declaration | Yes |
