Shop Legrand Hypra Mobile Socket IP 44 32A 2P+E Plastic | 52782 In Iraq Best Prices
Professional IP 44 mobile socket with 32A capacity, 2P+E configuration, plastic construction, and IEC 60309 compliance for temporary industrial power distribution

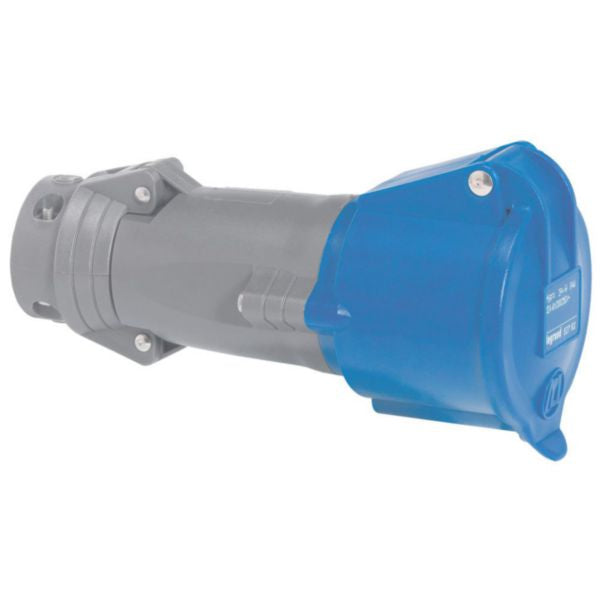

The Legrand Hypra Mobile Socket is a professional-grade industrial electrical connector designed for temporary power distribution in demanding environments. This IP 44-rated socket is engineered to provide reliable electrical connections with a rated capacity of 32A at 200-250V~, making it ideal for construction sites, outdoor events, and temporary installations. The socket features a robust plastic housing that ensures durability and weather resistance, complying with IEC 60309-1 and IEC 60309-2 international standards.
This mobile socket incorporates advanced safety features including a 3-pole configuration (2P+E) that provides phase, neutral, and earth protection. The device is equipped with an anti-kink cable entry sleeve to prevent cable damage and ensure safe operation. With its self-extinguishing plastic housing rated at 650°C, the socket maintains structural integrity even in high-temperature environments. The straight insert direction and screwed terminal connection system provide secure and reliable electrical contacts.
The Hypra Mobile Socket operates reliably across a wide temperature range from -50°C to +100°C, making it suitable for diverse climate conditions. Its IK09 impact resistance rating ensures protection against mechanical stress and accidental damage. The device is not suitable for electric vehicle charging applications, positioning it specifically for industrial and commercial power distribution needs. With its comprehensive safety certifications and robust construction, this socket delivers professional-grade performance for demanding temporary power applications.
Key Features
- IP 44 degree of protection rating for weather and dust resistance
- 32A rated capacity at 200-250V~ 50/60Hz operating voltage
- 3-pole 2P+E configuration with phase, neutral, and earth protection
- Durable plastic housing with 650°C self-extinguishing rating
- IK09 impact resistance for mechanical durability and protection
- Anti-kink cable entry sleeve prevents cable damage
- Screwed terminal connection system for secure electrical contacts
- Wide operating temperature range from -50°C to +100°C
- Straight insert direction for easy and reliable connection
- IEC 60309-1 and IEC 60309-2 international standards compliance
Technical Specifications
| Specification |
Value |
| Product Type | Mobile Industrial Socket |
| Rated Current | 32 A |
| Voltage Rating | 200-250 V~ (50/60 Hz) |
| Number of Poles | 3 (2P+E) |
| IP Rating | IP 44 |
| IK Rating | IK 09 |
| Material | Plastic |
| Housing Self-Extinguishing Temperature | 650°C |
| Operating Temperature Range | -50°C to +100°C |
| Connection System | Screwed Terminal |
| Insert Direction | Straight |
| Cable Entry | Anti-kink Sleeve |
| Clock Hour Position | 6 h |
| Identification Colour | Blue |
| RAL Number | 5005 |
| Standards Compliance | IEC 60309-1, IEC 60309-2, IEC 60529 |
| Suitable for EV Charging | No |
| Reference Number | 052782 |
| EAN Code | 3245060527822 |
| Manufacturer | Legrand |
Order Legrand Hypra Mobile Socket IP 44 32A 2P+E Plastic | 52782 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
