Shop Legrand Hypra IP44 Panel Mounting Industrial Socket 16A 3P+E | 52219 In Iraq Best Prices
Professional industrial panel mounting socket with IP44 protection, 16A capacity, 3-phase configuration, plastic construction, and IEC 60309 compliance for reliable power distribution

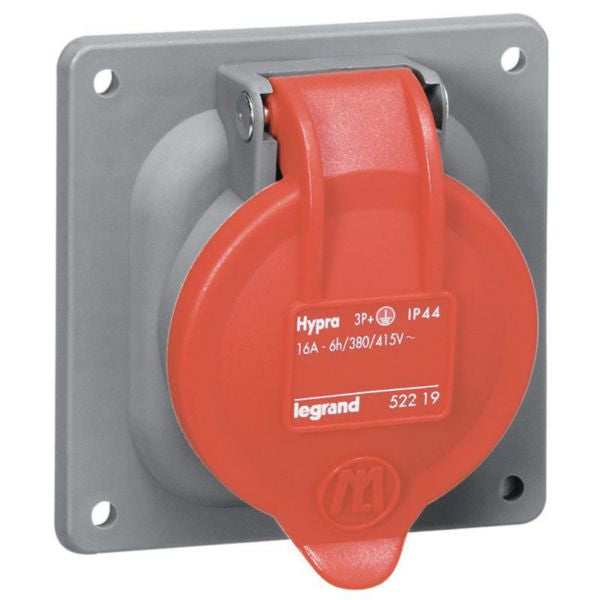

The Legrand Hypra IP44 Panel Mounting Socket is a professional-grade industrial electrical connector designed for reliable power distribution in demanding environments. This socket features a robust plastic construction that meets IEC 60309-1 and IEC 60309-2 standards, providing IP44 protection rating against dust and water ingress. With a rated capacity of 16A at 380-415V~ 50/60Hz, it is specifically engineered for three-phase applications with earth protection (3P+E configuration). The socket incorporates a straight insert design with a 6-hour clock position, making it compatible with standard industrial plugs and ensuring proper alignment and safety during connection.
This industrial socket is constructed from self-extinguishing plastic material rated at 850°C, ensuring fire safety compliance and durability in high-temperature environments. The panel mounting design with fixing centre allows for secure installation on control panels and distribution boards. It features screwed terminal connections for reliable electrical contact and includes a flange size of 84mm with 70mm drill hole distances for standardized installation. The product is suitable for use in industrial facilities, manufacturing plants, and commercial applications where robust power distribution is essential.
The Hypra socket range is specifically designed to meet the demanding requirements of industrial electrical systems, offering superior protection against environmental hazards including dust, moisture, and mechanical impact. With its IK09 impact resistance rating for plastic construction, this socket can withstand harsh industrial conditions. The product is compatible with standard industrial plugs and provides a secure, reliable connection for critical power applications. Each pack contains 5 units, making it ideal for large-scale industrial installations and facility upgrades.
Key Features
- IP44 protection rating against dust and water ingress for harsh industrial environments
- 16A rated capacity at 380-415V~ 50/60Hz three-phase power distribution
- Self-extinguishing plastic construction rated at 850°C for fire safety
- IEC 60309-1 and IEC 60309-2 compliance with IK09 impact resistance
- Panel mounting design with fixed centre and 84mm flange for secure installation
- Screwed terminal connections for reliable and secure electrical contact
- 6-hour clock position insert design for proper alignment with standard industrial plugs
- 3P+E configuration providing three-phase power with earth protection
- Straight insert design for easy connection and disconnection
- Pack of 5 units ideal for large-scale industrial installations
Technical Specifications
| Specification |
Value |
| Product Reference | 052219 |
| EAN Code | 3245060522193 |
| Brand | Legrand Hypra |
| Type | Panel Mounting Socket |
| Rated Current | 16 A |
| Voltage Rating | 380-415V~ 50/60 Hz |
| Configuration | 3P+E (Three-Phase with Earth) |
| Number of Poles | 4 |
| Clock Hour Position | 6 h |
| Identification Colour | Red |
| Degree of Protection (IP) | IP44 |
| Impact Resistance (IK) | IK09 (Plastic) |
| Material | Self-extinguishing Plastic |
| Connection System | Screwed Terminal |
| Insert Direction | Straight |
| Flange Size Vertical | 84 mm |
| Flange Size Horizontal | 84 mm |
| Drill Hole Distance Vertical | 70 mm |
| Drill Hole Distance Horizontal | 70 mm |
| Temperature Rating | -50°C to +100°C |
| Self-Extinguishing Rating | 850°C (Support of Active Parts) |
| Standards Compliance | IEC 60309-1, IEC 60309-2, IEC 60529, IEC 62262 |
| Mounting Type | Panel Mounting with Fixing Centre |
| Packing Quantity | 5 units per pack |
| Suitable for EV Charging | No |
