Professional industrial angled plug with IP44 protection, 32A capacity, 380-415V three-phase power, rubber construction, and international IEC compliance for demanding applications

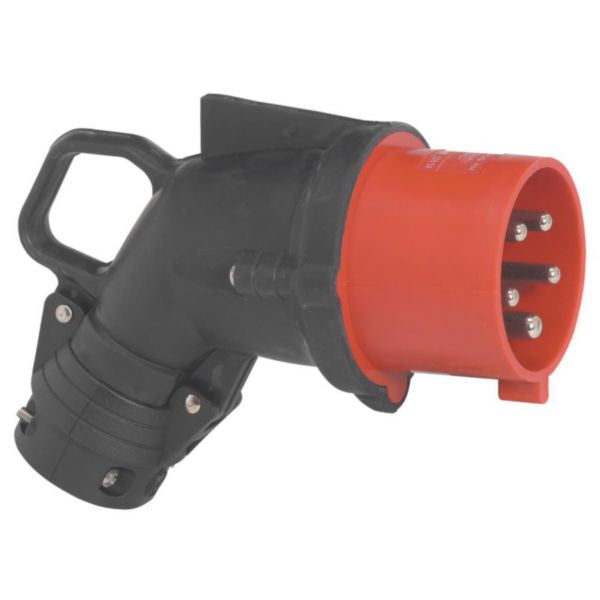

The Legrand Hypra Angled Plug is a professional-grade industrial electrical connector designed for demanding applications requiring reliable power distribution. This IP44-rated plug features a robust rubber construction that provides excellent durability and protection against environmental hazards including dust and water spray. Compliant with IEC 60309-1 and IEC 60309-2 international standards, this angled plug is engineered for three-phase AC power systems operating at 380-415V with 50/60 Hz frequency.
With a 32A current capacity and 5-pole configuration (3P+N+E), this plug delivers secure and safe electrical connections for industrial machinery, construction equipment, and temporary power distribution systems. The angled design facilitates easier cable management and connection in tight spaces, while the anti-kink sleeve protects cables from damage during installation and operation. The screwed terminal connection system ensures maximum contact reliability and long-term performance in harsh industrial environments.
The product meets strict safety and performance standards including IK09 impact resistance rating for rubber construction, self-extinguishing properties at 650°C for plastic housing, and operational temperature range from -50°C to +100°C. The distinctive red color coding with RAL 3000 finish identifies the 380-415V voltage class, making it instantly recognizable on job sites. Not suitable for electric vehicle charging applications, this plug is ideal for permanent and temporary industrial installations.
Key Features
- IP44 rated protection against dust and water spray for outdoor and wet environments
- 32A current capacity with 5-pole configuration (3P+N+E) for three-phase AC power systems
- Angled design for improved cable management and easier connection in confined spaces
- Rubber construction provides durability and IK09 impact resistance rating
- Compliant with IEC 60309-1 and IEC 60309-2 international standards
- Anti-kink sleeve protects cables from damage during installation and operation
- Screwed terminal connection system ensures maximum contact reliability
- Red RAL 3000 color coding for instant voltage class identification
- Operating temperature range from -50°C to +100°C for extreme conditions
- Self-extinguishing properties at 650°C for enhanced fire safety
Technical Specifications
| Specification |
Value |
| Product Type | Industrial Angled Plug |
| Brand | Legrand Hypra |
| Reference Number | 052854 |
| EAN Code | 3245060528546 |
| Rated Amperage | 32 A |
| Voltage Rating | 380-415 V AC (50/60 Hz) |
| Number of Poles | 5 poles (3P+N+E) |
| Clock Position | 6 h |
| Degree of Protection | IP44 |
| Impact Resistance | IK09 (rubber construction) |
| Material | Rubber |
| Connection System | Screwed terminal |
| Insert Direction | Angled |
| Cable Entry | Anti-kink sleeve |
| Identification Color | Red |
| RAL Number | RAL 3000 |
| Operating Temperature | -50°C to +100°C |
| Self-Extinguishing Temperature | 650°C (plastic housing) |
| Phase Inverter | No |
| IEC Compliance | IEC 60309-1, IEC 60309-2, IEC 60529 |
| Suitable for EV Charging | No |
