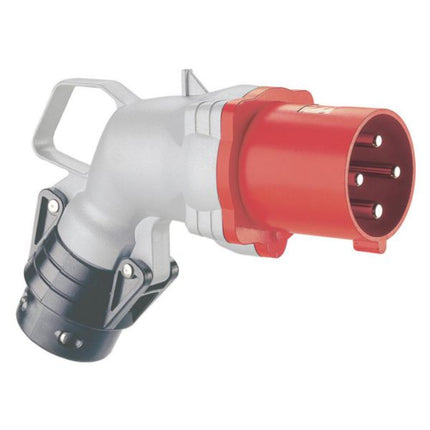

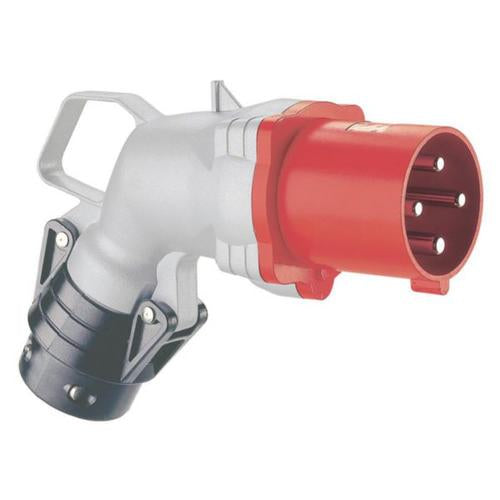

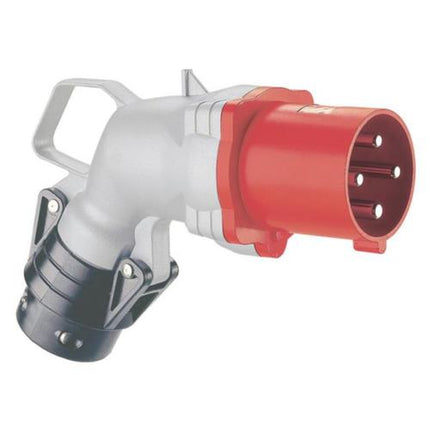

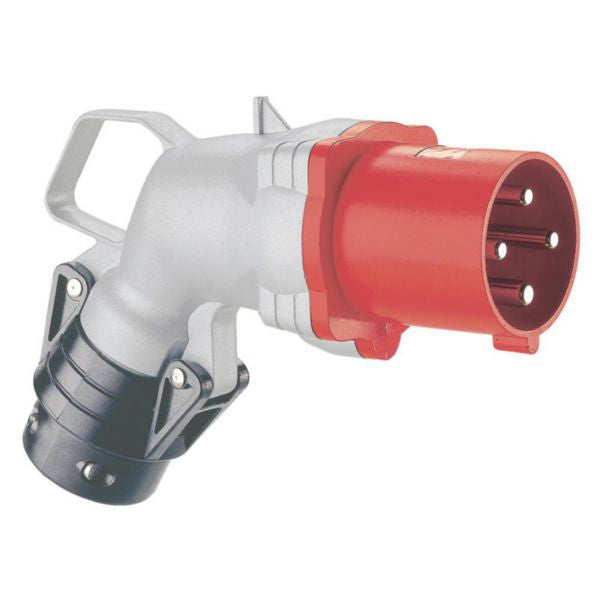

Shop Legrand Hypra Angled Industrial Plug 63A 3P+E Metal | 53873 In Iraq Best Prices
Professional Legrand Hypra angled industrial plug with 63A capacity, IP 44 protection, and metal construction for reliable three-phase power distribution in demanding industrial environments.
The Legrand Hypra Angled Plug is a professional-grade industrial connector designed for demanding applications requiring reliable power distribution. With a 63A capacity and 380-415V three-phase configuration, this metal-constructed plug delivers exceptional durability and performance in harsh industrial environments. The angled design provides optimal cable entry and installation flexibility, making it ideal for temporary power solutions, mobile equipment, and construction sites where space constraints exist.
This IP 44-rated connector features comprehensive environmental protection against dust and water ingress, ensuring consistent operation in challenging conditions. The metal construction provides superior mechanical protection with an IK 09 impact resistance rating, while the screwed terminal connection system guarantees secure and reliable electrical contact. Compliant with IEC 60309-1 and IEC 60309-2 international standards, this plug is recognized globally and suitable for cross-border industrial applications.
The Hypra angled plug incorporates advanced self-extinguishing properties (850°C support of active parts) and operates reliably across a wide temperature range from -50°C to +100°C. The distinctive red identification color with clock hour position at 6h ensures immediate visual recognition and prevents connection errors. Perfect for rental equipment, mobile power solutions, and industrial sites requiring temporary or portable three-phase power connections.
Key Features
- 63A capacity with 380-415V three-phase configuration
- IP 44 rated protection against dust and water ingress
- Durable metal construction with IK 09 impact resistance
- Angled design for optimal cable entry and installation flexibility
- Compliant with IEC 60309-1 and IEC 60309-2 international standards
- Screwed terminal connection system for secure electrical contact
- Wide operating temperature range from -50°C to +100°C
- Self-extinguishing properties (850°C support of active parts)
- Red identification color with 6-hour clock position for visual recognition
- Suitable for temporary power, mobile equipment, and construction sites
Technical Specifications
| Specification |
Value |
| Product Reference | 053873 |
| Amperage Rating | 63 A |
| Voltage | 380-415 V AC (50/60 Hz) |
| Number of Poles | 4 (3P+E) |
| Plug Type | Angled |
| Material | Metal |
| Degree of Protection (IP) | IP 44 |
| Impact Resistance (IK) | IK 09 |
| Connection System | Screwed Terminal |
| Cable Entry | Anti-kink Sleeve |
| Clock Hour Position | 6 h |
| Identification Colour | Red |
| RAL Number | 3000 |
| Operating Temperature Range | -50°C to +100°C |
| Self-Extinguishing Rating | 850°C (support of active parts) |
| Standards Compliance | IEC 60309-1, IEC 60309-2, IEC 60529 |
| Phase Inverter | No |
| Military Model | No |
| EAN Code | 3245060538736 |
| Suitable for Electric Vehicle Charging | No |
