Professional Legrand Hypra angled industrial plug with IP44 protection, 16A capacity, 380-415V rating, metal construction, and IEC 60309 compliance for reliable three-phase power distribution.

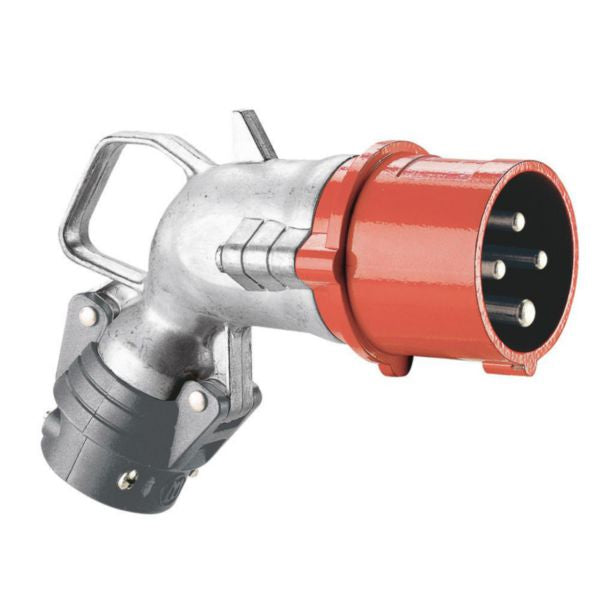

The Legrand Hypra Angled Plug is a professional-grade industrial connector designed for demanding electrical applications. This mobile plug features IP 44 protection rating, making it suitable for both indoor and outdoor installations where moisture and dust protection is essential. With a rated voltage of 380-415V at 50/60Hz and a 16A capacity, this angled plug provides reliable power distribution for industrial equipment, machinery, and portable installations.
Manufactured with metal construction for superior durability and mechanical protection, this plug conforms to IEC 60309-1 and IEC 60309-2 international standards. The angled insert design allows for convenient installation in tight spaces and reduces strain on connected cables. Featuring four poles (3P+E configuration), the plug ensures safe grounding and three-phase power distribution. The red identification color (RAL 3000) indicates the 380-415V rating, making it instantly recognizable on job sites.
This Hypra plug offers exceptional mechanical protection with an IK 09 rating for the plastic components and IK 10 for metal parts according to IEC 62262. The self-extinguishing properties (850°C for active parts and 650°C for plastic housing) ensure fire safety compliance. Operating temperature range from -50°C to +100°C makes it suitable for diverse environmental conditions. The screwed terminal connection system and anti-kink sleeve provide secure cable attachment and extended cable life.
Key Features
- IP 44 protection rating for moisture and dust resistance in indoor and outdoor applications
- Metal construction with IK 10 mechanical protection rating for superior durability
- Angled insert design for convenient installation in tight spaces and reduced cable strain
- Four-pole 3P+E configuration ensures safe grounding and three-phase power distribution
- IEC 60309-1 and IEC 60309-2 international standards compliance for reliability
- Red identification color (RAL 3000) for instant voltage rating recognition
- Self-extinguishing properties (850°C/650°C) ensuring fire safety compliance
- Operating temperature range -50°C to +100°C for diverse environmental conditions
- Screwed terminal connection system with anti-kink cable sleeve for secure attachment
- Rated for 16A at 380-415V 50/60Hz for reliable industrial power applications
Technical Specifications
| Specification |
Value |
| Product Reference | 052273 |
| EAN Code | 3245060522735 |
| Manufacturer | Legrand |
| Brand | Hypra |
| Rated Current | 16 A |
| Voltage Rating | 380-415 V AC at 50/60 Hz |
| Number of Poles | 4 (3P+E) |
| Plug Type | Angled Mobile Plug |
| Protection Rating | IP 44 |
| Mechanical Protection | IK 09 (plastic), IK 10 (metal) |
| Connection System | Screwed Terminal |
| Cable Entry | Anti-kink Sleeve |
| Material | Metal |
| Insert Direction | Angled |
| Identification Colour | Red (RAL 3000) |
| Clock Hour Position | 6 h |
| Phase Inverter | No |
| Operating Temperature Range | -50°C to +100°C |
| Self-Extinguishing Temperature (Active Parts) | 850°C |
| Self-Extinguishing Temperature (Housing) | 650°C |
| Standards Compliance | IEC 60309-1, IEC 60309-2, IEC 60529, IEC 62262 |
| Application | Industrial Power Distribution |
| Suitable for EV Charging | No |
