Shop Legrand Green'up Premium Single-Phase Electric Vehicle Charging Station 3.7kW-4.6kW | 59070 In Iraq Best Prices
Professional single-phase electric vehicle charging station with integrated RFID access control, 3.7-4.6kW power output, WiFi connectivity, and remote management capabilities via smartphone app.

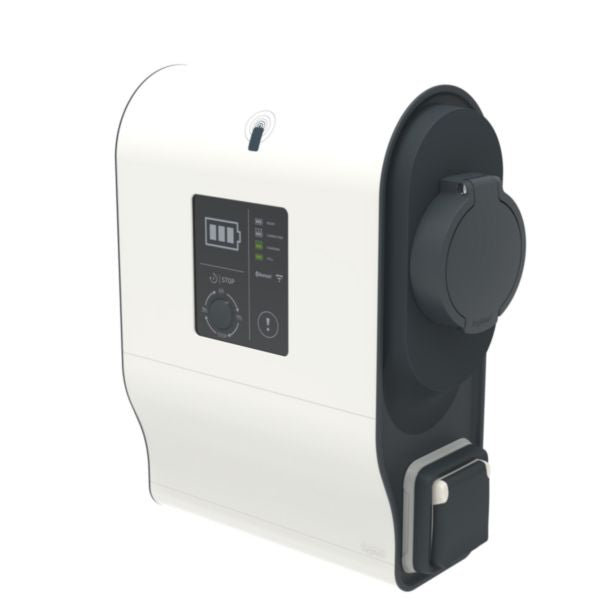

The Legrand Green'up Premium charging station is a professional-grade, single-phase electric vehicle charging solution designed for secure and efficient charging of all rechargeable electric and hybrid vehicles. This compact, lightweight plastic housing features IP44 protection rating and integrates advanced communication capabilities with built-in RFID reader for multi-user access control via badge authentication. The charging station operates at 230V single-phase with selectable 16A or 20A configurations, delivering power outputs of 3.7kW or 4.6kW respectively. With embedded 6mA DC protection against residual direct current, it supports both Mode 2 and Mode 3 charging protocols, ensuring compatibility with the widest range of electric vehicles on the market.
This smart charging station comes pre-equipped with a communication kit and RFID reader already mounted and calibrated, making it ready for immediate installation and use by multiple users. The device features intelligent power management capabilities, allowing users to control charging hours through external commands such as contactors, clocks, or switches via dry contact 12V input. The deferred start functionality enables users to schedule charging sessions at 3, 6, or 9-hour intervals by simply pressing buttons on the front panel. Through its integrated OCPP 1.6J protocol and support for Modbus, Network, WiFi 2.4G, and Bluetooth connectivity, the charging station can be remotely monitored and controlled via smartphone, tablet, or PC through the dedicated EV Charge application available on both App Store and Google Play Store.
The Green'up Premium charging station is engineered for professional installations with a wall-mounting kit included as standard, with optional floor-mounted pedestal (reference 059052) available for alternative installation requirements. Operating reliably across temperatures from -25°C to 50°C, this programmable device features an impact resistance rating of IK08 and white color finish. The charging cable length is integrated into the station design, and the device includes one Type 2 socket outlet connector standard on all units. Its sophisticated design balances professional aesthetics with practical functionality, making it an ideal choice for residential, commercial, and fleet charging applications requiring secure, networked, and remotely manageable charging infrastructure.
Key Features
- Integrated RFID reader with badge access control for multi-user charging
- Pre-mounted communication kit with WiFi 2.4G, Bluetooth, Modbus, and OCPP 1.6J protocols
- Selectable power output: 3.7kW (16A) or 4.6kW (20A) at 230V single-phase
- Embedded 6mA DC protection against residual direct current
- Deferred charging start function with 3, 6, or 9-hour scheduling options
- Remote control via EV Charge app on iOS and Android devices
- IP44 weather protection with IK08 impact resistance
- Dry contact 12V input for external power management control
- Mode 2 and Mode 3 charging protocol support
- Programmable and interoperable with charging point operators
Technical Specifications
| Specification |
Value |
| Brand | Legrand |
| Model | Green'up Premium |
| Reference Number | 059070 |
| EAN Code | 3414972345316 |
| Installation Type | Single-phase |
| Nominal Connection Power | 3.7 kW |
| Maximum Power Per Charging Point | 4.6 kW |
| Number of Charging Units | 1 |
| Nominal Voltage | 220-240 V |
| Current Rating Options | 16A or 20A |
| Connector Type | Type 2 socket outlet |
| Number of Connectors | 1 |
| Charging Cable Length | Integrated design |
| Housing Material | Plastic |
| Color | White |
| Width | 295 mm |
| Height | 365 mm |
| Depth | 140 mm |
| IP Rating | IP44 |
| IK Rating | IK08 |
| Operating Temperature Range | -25°C to +50°C |
| Storage Temperature Range | -25°C to +70°C |
| DC Protection | 6mA DC residual current protection |
| Charging Protocols Supported | Mode 2 and Mode 3 |
| Communication Protocols | Bluetooth, Modbus, Network, WiFi 2.4G, OCPP 1.6J |
| RFID Reader | 13.56MHz badge reader - pre-mounted |
| Control Input | Dry contact 12V input |
| Deferred Start Options | 3, 6, or 9-hour scheduling |
| Display | No integrated display |
| Energy Meter | Not included |
| Programmable | Yes |
| Smart Home Integration | No Apple HomeKit, Google Assistant, or Amazon Alexa support |
| Application Name | EV Charge |
| App Availability | Google Play Store and App Store |
| Programming Method | Web software and mobile application |
| Installation Kit | Wall-mounting kit included; Optional floor pedestal (ref. 059052) |
| Warranty | Standard manufacturer warranty applies |
