Shop Legrand Green'up Premium Metal Charging Station 3.7kW Dual EV | 58042 In Iraq Best Prices
Professional dual electric vehicle charging station with 3.7kW power, Bluetooth connectivity, IP55/IK10 protection, and integrated MCB for safe outdoor charging of two vehicles simultaneously.

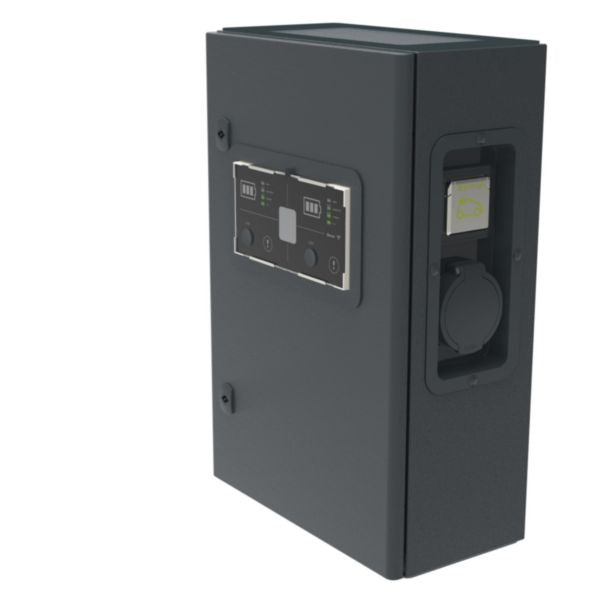

The Legrand Green'up Premium metal charging station is a professional-grade dual electric vehicle charging solution designed for simultaneous charging of two electric or hybrid vehicles. This single-phase charging station delivers 3.7kW nominal power with maximum capacity of 4.6kW per charging point, operating at 220-240V. The robust steel housing features IK10 impact resistance and IP55 weather protection, making it ideal for outdoor installations. Equipped with integrated miniature circuit breaker (MCB) and DC protection, this charging station ensures safe and reliable operation in all weather conditions.
The station features advanced connectivity options including local Bluetooth wireless communication for smartphone and tablet control via the EV Charge app (available on iOS and Android). Users can easily update the charging station firmware, configure settings, and monitor charging sessions remotely. Optional accessories include a communication kit for remote management capabilities and RFID reader for user access control. The device supports external command through dry contact inputs, allowing integration with contactor, clock, and switch systems. Power adjustment is available both locally on the device and remotely through the app or web interface.
Installation is simplified with dual-sided socket configuration, reducing installation time and space requirements. The charging station operates across a wide temperature range from -25°C to 50°C, ensuring reliable performance in diverse climates. With programmable functionality and interoperable connection protocols, this solution is perfect for residential, commercial, and fleet charging applications requiring professional-grade reliability and smart connectivity features.
Key Features
- Dual charging capability for simultaneous charging of two electric or hybrid vehicles
- Local Bluetooth wireless communication with iOS/Android app control for configuration and monitoring
- Integrated miniature circuit breaker (MCB) with DC protection for enhanced safety
- Robust steel housing with IK10 impact resistance and IP55 weatherproof protection
- Programmable power adjustment locally and remotely via app or web interface
- Optional RFID badge reader for restricted access and user management
- Optional communication kit for remote management and OCPP protocol support
- External command capability through dry contact inputs for contactor/clock/switch integration
- Wide operating temperature range from -25°C to 50°C for all-weather reliability
- Space-saving dual-sided socket configuration for efficient installation
Technical Specifications
| Specification |
Value |
| Product Name | Green'up Premium Metal Charging Station |
| SKU/Reference | 058042 |
| EAN Code | 3414972345217 |
| Brand | Legrand |
| Installation Type | Single Phase |
| Nominal Connection Power | 3.7 kW |
| Maximum Power Per Charging Point | 4.6 kW |
| Number of Charging Units | 2 |
| Socket Type | Type 2 Socket Outlets (2 units) |
| Nominal Voltage | 220-240 V AC |
| Width | 430 mm |
| Height | 740 mm |
| Depth | 243 mm |
| Housing Material | Steel |
| Colour | Black |
| Degree of Protection (IP) | IP55 - Water and dust resistant |
| Impact Strength (IK) | IK10 - Maximum impact resistance |
| Integrated MCB | Yes - Miniature Circuit Breaker included |
| DC Protection | Yes |
| Operating Temperature Range | -25°C to +50°C |
| Storage Temperature Range | -25°C to +70°C |
| Connectivity | Bluetooth (Local), OCPP 1.6J (Remote via optional kit) |
| Mobile App Support | EV Charge App - iOS and Android compatible |
| Programmable | Yes |
| External Command | Dry contact input 12V DC for contactor/clock/switch integration |
| Power Adjustment | Local device or remote via app/web interface |
| RFID Reader Compatible | Yes - Optional RFID reader ref. 0 590 59 |
| Communication Kit Compatible | Yes - Optional communication kit ref. 0 590 56 |
| Energy Meter | No |
| Display | No |
| Connected Object | Yes - Smart charging station |
| Voice Command Support | No |
| HomeKit Compatible | No |
| Google Assistant Compatible | No |
| Amazon Alexa Compatible | No |
| IFTTT Support | No |
| Charging Cable Length | 0 m (Socket outlets only) |
| Application Store | App Store, Google Play Store |
| Programming Method | Web software interface |
| Interoperable Protocol | Yes - OCPP 1.6J compatible |
| Internet Box Connection | No (via optional communication kit) |
| Product Use Function | Electric Vehicle Charging |
| Installation Advantage | Dual-sided socket configuration saves space and installation time |
Order Legrand Green'up Premium Metal Charging Station 3.7kW Dual EV | 58042 at wholesale prices for companies and factories in Iraq and Middle East, get the best deals on bulk purchases, contact us today.
